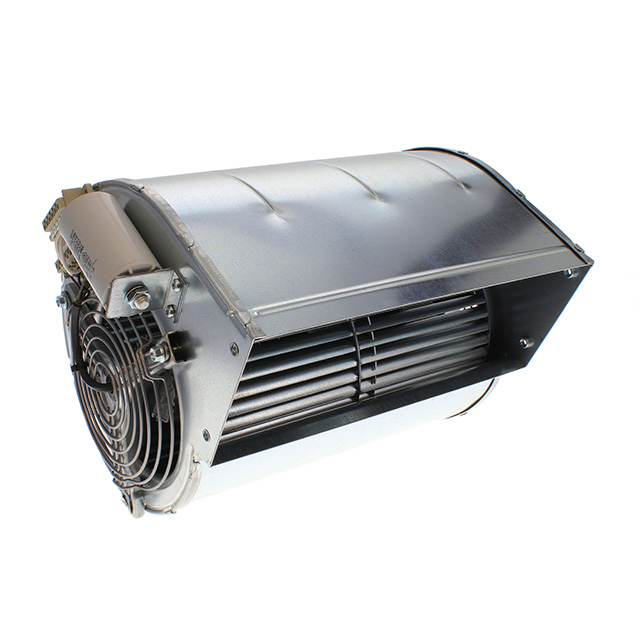

D2E160 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
BLOWERS & CENTRIFUGAL FANS AC CENTRIFUGAL BLOWER
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Fan Type | Voltage - Rated | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Termination | Width [x] | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Features | RPM | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 3.2 A | Steel | Blower Centrifugal | 230 VAC | Rectangular/Rounded | 241 mm | 225 mm | CCC EAC | Terminal Block | 276 mm | 389.6 Pa | 1.564 in H2O | 50 °C | -25 °C | -25 °C | 50 °C | 730 W | Capacitor Thermal Overload Protector (TOP) | 2400 RPM | Ball |
 ebm-papst Inc. | Blower Centrifugal | Rectangular/Rounded | 241 mm | 225 mm | 276 mm | Capacitor Thermal Overload Protector (TOP) | Ball |
