78064 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

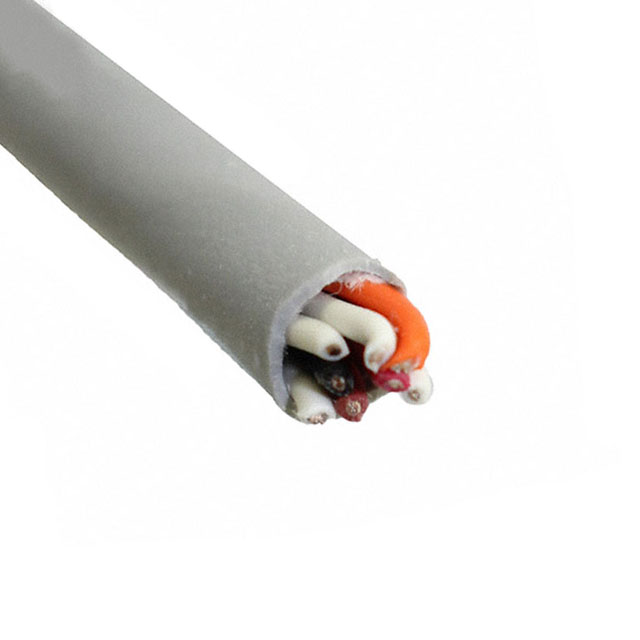

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, UNSHIELDED, 4 PAIR, 26 AWG, 0.154 MM², 1000 FT, 305 M
| Part | Conductor Material | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Features | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 8 | Slate | Polyphenylene Ether Modified (mPPE) | Multi-Pair | 80 °C | -40 C | ISO 10993 UL Style 21460 | Biological Compatibility Rip Cord | 26 AWG | 300 VDC | 0.169 in | 4.29 mm | Polyphenylene Ether Modified (mPPE) | 19 | 38 | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | ||
 ALPHA WIRE | Copper Tinned | 8 | Slate | Polyphenylene Ether Modified (mPPE) | Multi-Pair | 80 °C | -40 C | ISO 10993 UL Style 21460 | Biological Compatibility Rip Cord | 26 AWG | 300 VDC | 0.169 in | 4.29 mm | Polyphenylene Ether Modified (mPPE) | 19 | 38 | 0.381 mm | 0.015 in | 300 mm | 1 ' | ||
 ALPHA WIRE | Copper Tinned | 8 | Slate | Polyphenylene Ether Modified (mPPE) | Multi-Pair | 80 °C | -40 C | ISO 10993 UL Style 21460 | Biological Compatibility Rip Cord | 26 AWG | 300 VDC | 0.169 in | 4.29 mm | Polyphenylene Ether Modified (mPPE) | 19 | 38 | 0.381 mm | 0.015 in | 30.5 m | 100 ft |
