45166 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

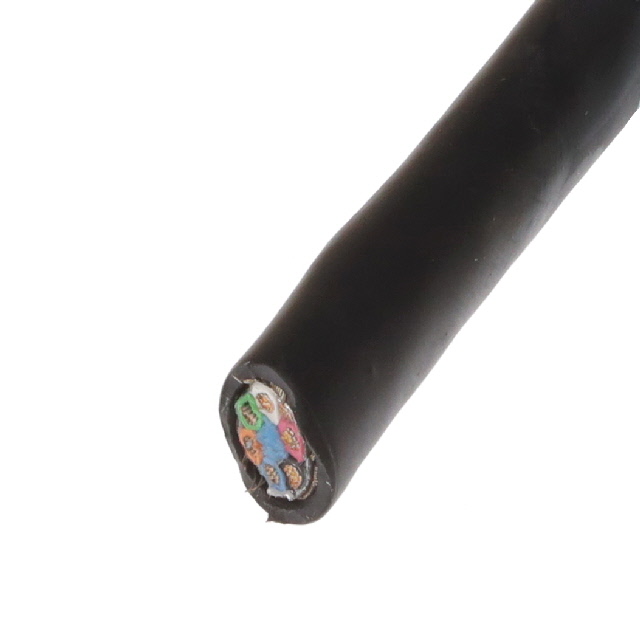

CABLE 6COND 18AWG BLK SHLD 100'
| Part | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket Color | Number of Conductors | Cable Type | Jacket (Insulation) Material | Ratings | Features | Conductor Insulation | Shield Coverage | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Suprashield® | 1.143 mm | 0.045 in | 30.5 m | 100 ft | Braid Foil | -50 °C | 125 °C | 16 | 30 AWG | Copper Tinned | Black | 6 | Multi-Conductor | Thermoplastic Elastomer (TPE) | ISO 10993 | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | 70 % 100 % | 300 V | 9.17 mm | 0.361 in | 18 AWG | ||
 ALPHA WIRE | Aluminum Suprashield® | 1.143 mm | 0.045 in | Braid Foil | -50 °C | 125 °C | 16 | 30 AWG | Copper Tinned | Blue | 6 | Multi-Conductor | Thermoplastic Elastomer (TPE) | ISO 10993 | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | 70 % 100 % | 300 V | 9.17 mm | 0.361 in | 18 AWG | 1000 ft | 304.8 m |
