BUCHANAN WireMate Poke-In Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN POKE-IN WIRE RCP 2 POS 4MM SOLDER RA SIDE ENTRY SMD CARTON/REEL
| Part | Style | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch | Pitch | Housing Material | Mounting Type | Connector Type | Wire Gauge | Housing Color | Contact Finish | Number of Positions | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 105 ░C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Natural | Tin | 2 | ||

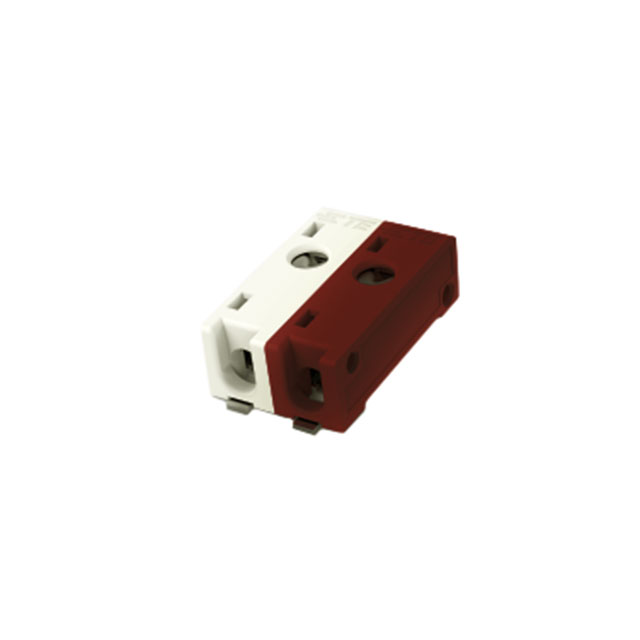

 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 125 °C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Natural Red | Tin | 2 | 400 V | 5 A 6 A |
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 125 °C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Brown Yellow | Tin | 2 | 400 V | 5 A 6 A |
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 125 °C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Natural | Tin | 2 | ||
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 125 °C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Black Natural Red | Tin | |||

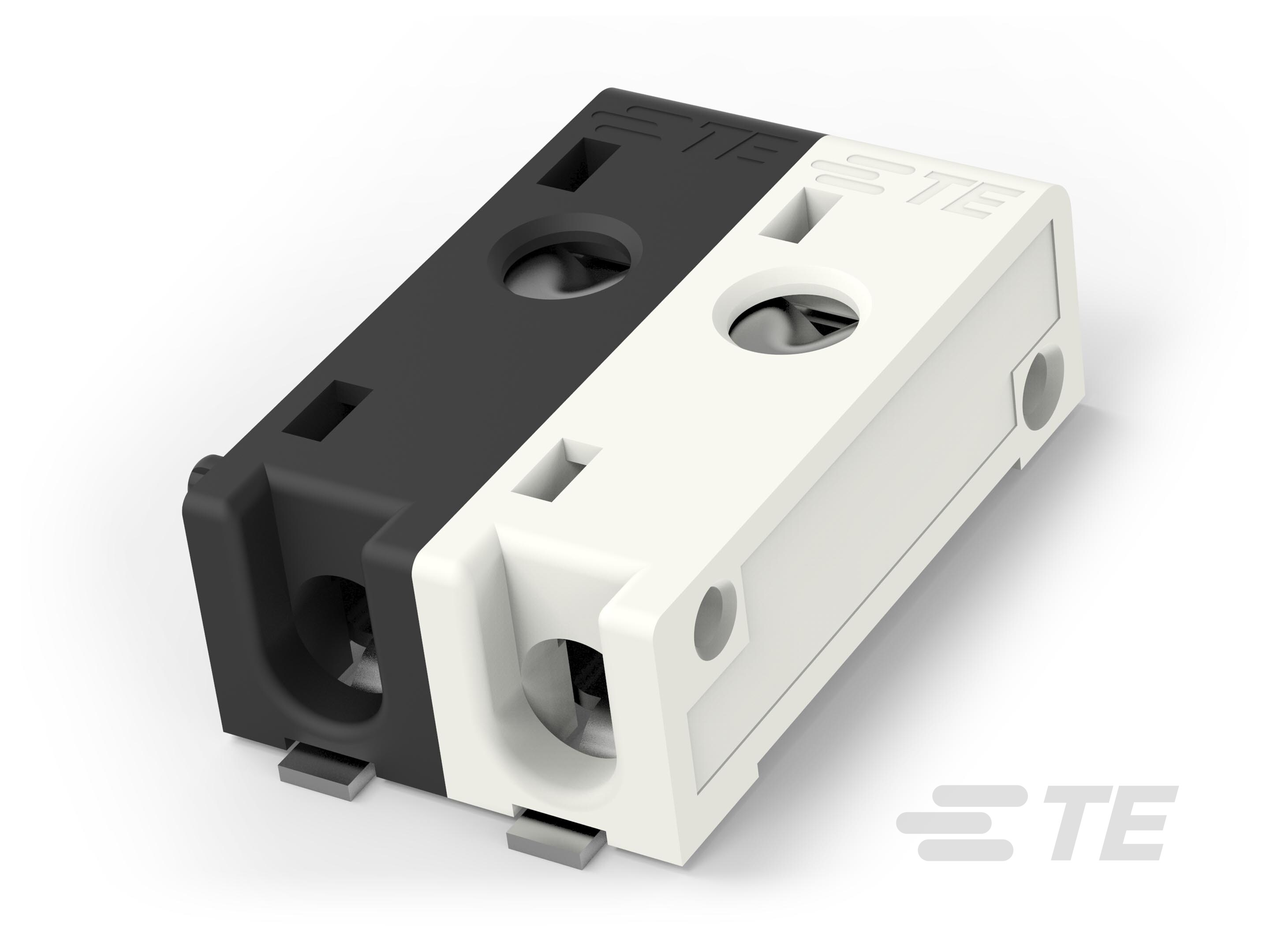

 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 125 °C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Black Natural | Tin | 2 | ||
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 105 ░C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Natural | Tin | |||
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 105 ░C | Solder | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Natural | Tin | 1 | 400 V | 5 A 6 A | ||
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 125 °C | Solder | 4 mm | 0.157 in | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Black Red | Tin | 2 | ||
 TE Connectivity AMP Connectors | Board to Cable/Wire | Copper Alloy | -40 C | 125 °C | Solder | Resin | Right Angle Surface Mount | Receptacle Poke-In Wire | 18 AWG 20 AWG 22 AWG | Red | Tin | 1 |
