IDPC-25 Series

Catalog

LED DRVR CC AC/DC 49-70V 350MA

Part	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Approval Agency	Voltage - Input (Max) [Max]	Termination Style	Type	Power (Watts)	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Dimming	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output [Max]	Voltage - Output [Min]	Features	Voltage - Input (Min) [Min]	Efficiency

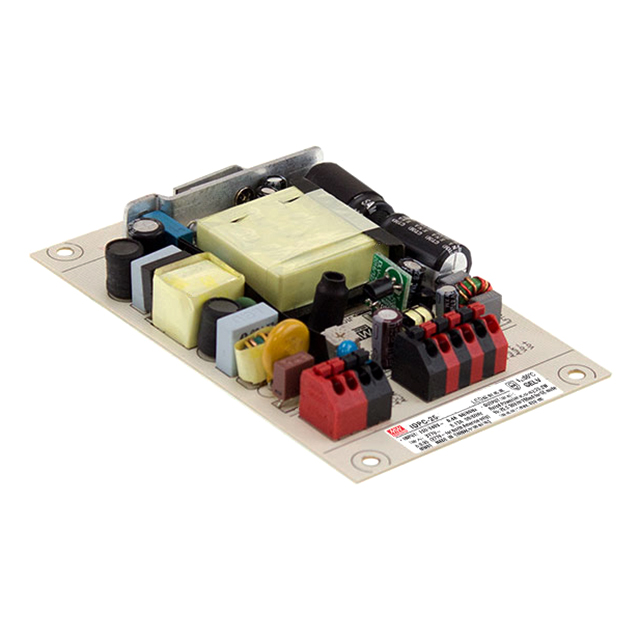

MEAN WELL USA Inc. IDPC-25-350	Chassis Mount	350 mA	1	CB CCC CE cURus ENEC	295 VAC	Terminal Block	Constant Current	25 W	AC DC Converter	-20 ░C	50 °C	3750 VDC	Analog PWM	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	70 V	49 V	SCP	90 VAC

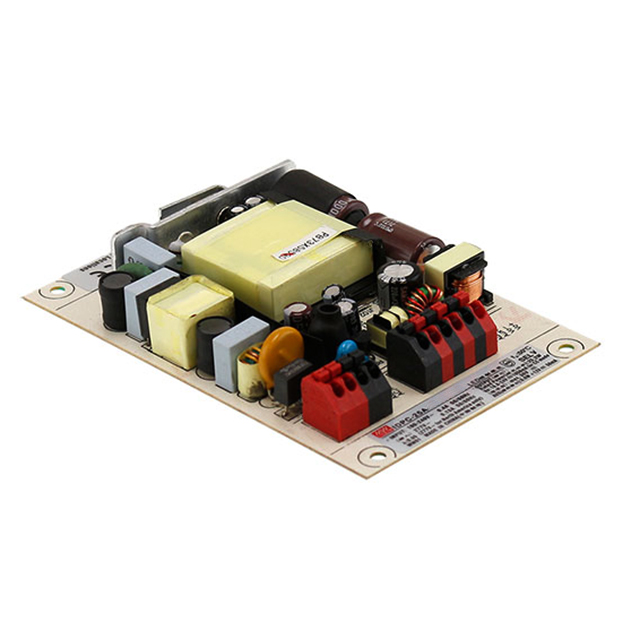

MEAN WELL USA Inc. IDPC-25A-1050	Chassis Mount	1.05 A	1	CB CCC CE cURus ENEC	295 VAC	Terminal Block	Constant Current	25 W	AC DC Converter	-20 ░C	50 °C	3750 VDC	Analog PWM	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	24 V	16.8 V	SCP	90 VAC	80 %
MEAN WELL USA Inc. IDPC-25A-500	Chassis Mount	500 mA	1	CB CCC CE cURus ENEC	295 VAC	Terminal Block	Constant Current	25 W	AC DC Converter	-20 ░C	50 °C	3750 VDC	Analog PWM	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	50 V	35 V	SCP	90 VAC	81.5 %
MEAN WELL USA Inc. IDPC-25-700	Chassis Mount	700 mA	1	CB CCC CE cURus ENEC	295 VAC	Terminal Block	Constant Current	25 W	AC DC Converter	-20 ░C	50 °C	3750 VDC	Analog PWM	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	36 V	25.2 V	SCP	90 VAC	81.5 %
