R18507 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

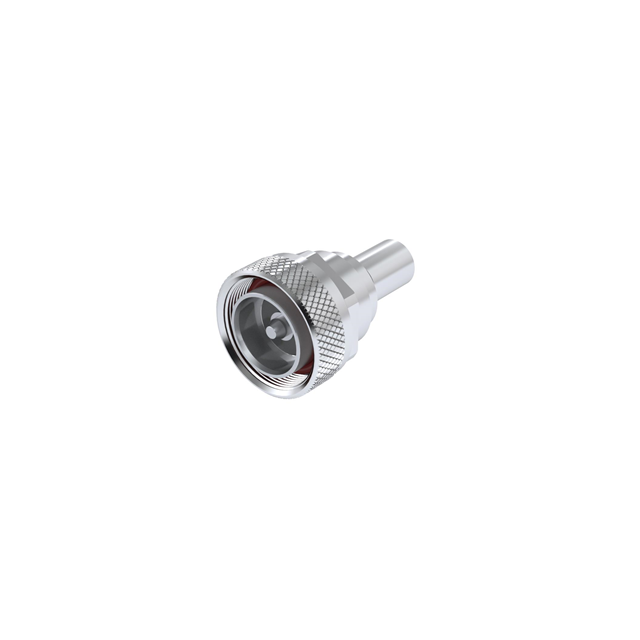

7-16 / STRAIGHT PLUG CRIMP TYPE
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Dielectric Material | Center Contact Plating | Mating Cycles | Body Material | Frequency - Max [Max] | Mounting Type | Center Contact Material | Shield Termination | Housing Color | Fastening Type | Number of Ports | Ingress Protection | Connector Style | Cable Group | Impedance | Contact Termination | Connector Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | White Bronze | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | Silver | 500 | Brass | 7.5 GHz | Free Hanging (In-Line) | Brass | Crimp | Silver | Threaded | 1 | IP67 - Dust Tight Waterproof | 7/16 DIN | RG-213 393 | 50 Ohms | Crimp | Plug Male Pin | |
 Radiall USA, Inc. | White Bronze | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | Silver | 500 | Brass | 7.5 GHz | Free Hanging (In-Line) | Brass | Crimp | Silver | Threaded | 1 | IP67 - Dust Tight Waterproof | 7/16 DIN | RG-214 | 50 Ohms | Crimp | Plug Male Pin | 225 |
 Radiall USA, Inc. | White Bronze | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | Silver | 500 | Brass | 7.5 GHz | Free Hanging (In-Line) | Brass | Crimp | Silver | Threaded | 1 | IP67 - Dust Tight Waterproof | 7/16 DIN | RG-214 | 50 Ohms | Crimp | Plug Male Pin | 225 |
Radiall USA, Inc. | White Bronze | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | Silver | 500 | Brass | 7.5 GHz | Free Hanging (In-Line) | Brass | Crimp | Silver | Threaded | 1 | IP67 - Dust Tight Waterproof | 7/16 DIN | RG-213 393 | 50 Ohms | Crimp | Plug Male Pin |
