PPPN092 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 18POS 0.079 GOLD SMD

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating	Insulation Color	Connector Type	Features	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Termination	Number of Rows [custom]	Current Rating (Amps)	Insulation Height	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Height

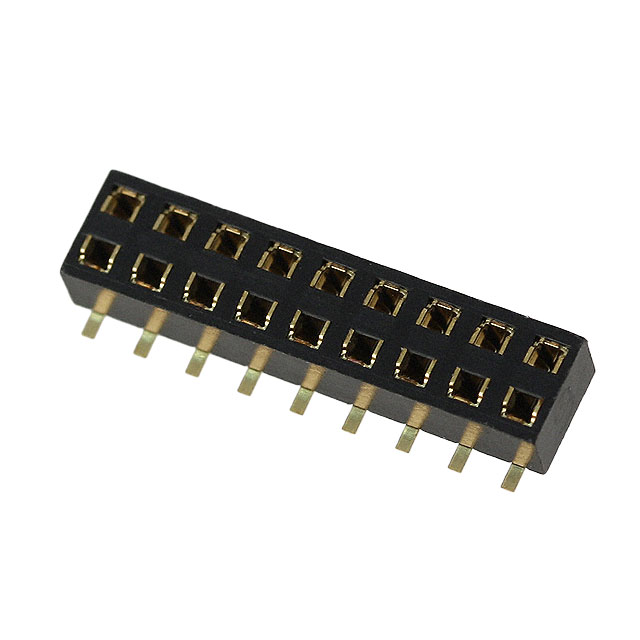

Sullins Connector Solutions PPPN092GHNP	Square	Polyester	Phosphor Bronze	Flash	2 mm	0.079 in	Surface Mount	All	Gold	UL94 V-0	Black	Header Bottom Entry	Board Guide	18	-40 C	105 ░C	Female Socket	0.079 "	2 mm	Gold	Push-Pull	Flash	Solder	2

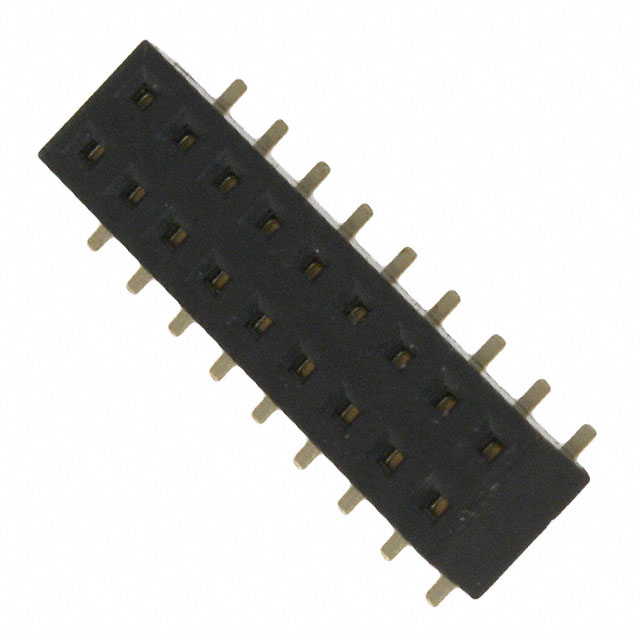

Sullins Connector Solutions PPPN092GFNP	Square	Polyester	Phosphor Bronze	Flash	2 mm	0.079 in	Surface Mount	All	Gold	UL94 V-0	Black	Header Top or Bottom Entry	Board Guide	18	-40 C	105 ░C	Female Socket	0.079 "	2 mm	Gold	Push-Pull	Flash	Solder	2	2 A

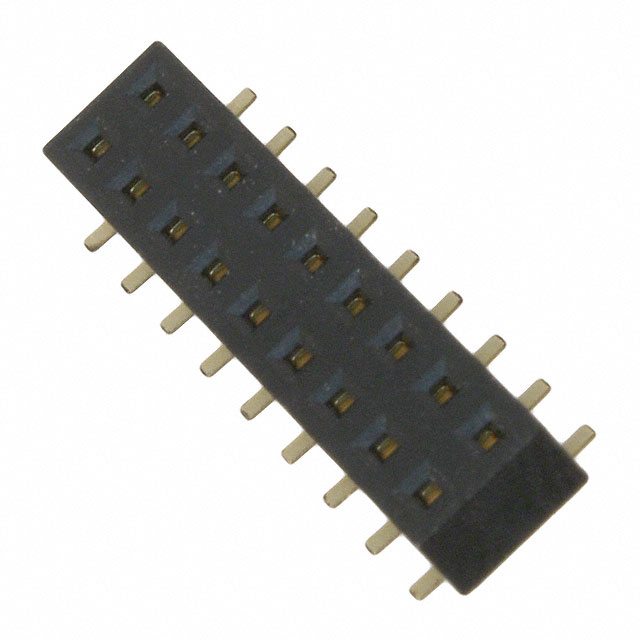

Sullins Connector Solutions PPPN092GFNS	Square	Polyester	Phosphor Bronze	Flash	2 mm	0.079 in	Surface Mount	All	Gold	UL94 V-0	Black	Header Top or Bottom Entry		18	-40 C	105 ░C	Female Socket	0.079 "	2 mm	Gold	Push-Pull	Flash	Solder	2	2 A
Sullins Connector Solutions PPPN092FJFN	Square	Polyester	Phosphor Bronze	Flash	2 mm	0.079 in	Right Angle Through Hole	All	Gold	UL94 V-0	Black	Header		18	-40 C	105 ░C	Female Socket	0.079 "	2 mm	Gold	Push-Pull	Flash	Solder	2		4.85 mm	0.191 in	0.118 in	3 mm
Sullins Connector Solutions PPPN092FFKS	Square	Polyester	Phosphor Bronze	Flash	2 mm	0.079 in	Surface Mount	All	Gold	UL94 V-0	Black	Header		18	-40 C	105 ░C	Female Socket	0.079 "	2 mm	Gold	Push-Pull	Flash	Solder	2	2 A	0.173 in				4.4 mm
Sullins Connector Solutions PPPN092FFKP	Square	Polyester	Phosphor Bronze	Flash	2 mm	0.079 in	Surface Mount	All	Gold	UL94 V-0	Black	Header	Board Guide	18	-40 C	105 ░C	Female Socket	0.079 "	2 mm	Gold	Push-Pull	Flash	Solder	2	2 A	0.173 in				4.4 mm
