88444 Series
Manufacturer: Belden Inc.
Beta
⌘K

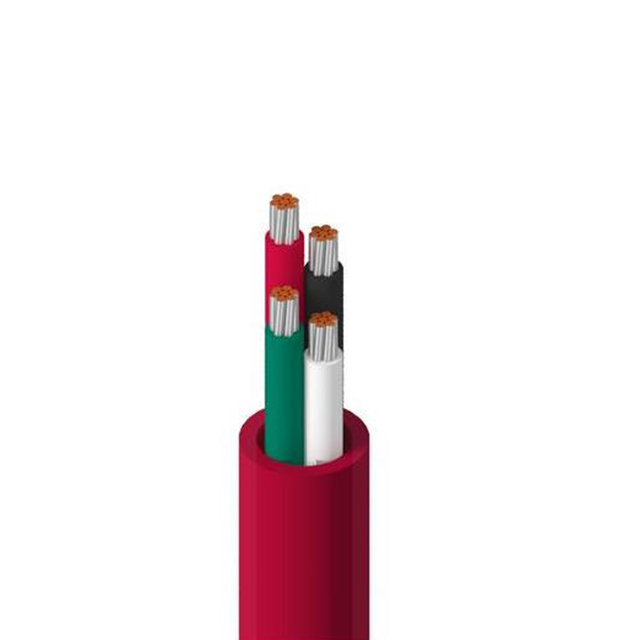

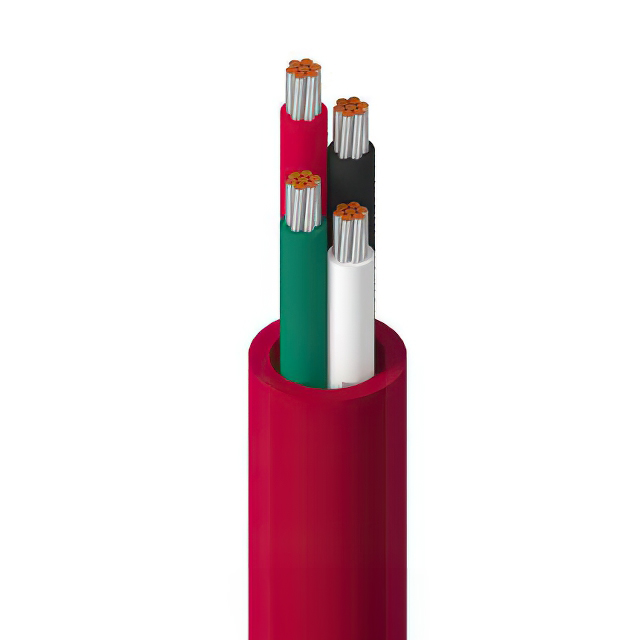

CABLE 4COND 22AWG RED
| Part | Ratings | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Length | Length | Jacket Color | Conductor Insulation | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | UL Style CMP | Copper Tinned | 22 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Conductor | 30 AWG | 7 | -70 °C | 200 °C | 3.07 mm | 0.121 in | 300 VDC | 152.4 m | 500 ft | Red | Fluorinated Ethylene-Propylene (FEP) | Audio Control Instrumentation | 0.01 in | 0.254 mm | 4 | Direct Burial |
 Belden Inc. | UL Style CMP | Copper Tinned | 22 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Conductor | 30 AWG | 7 | -70 °C | 200 °C | 3.07 mm | 0.121 in | 300 VDC | 304.8 m | 1000 ft | Red | Fluorinated Ethylene-Propylene (FEP) | Audio Control Instrumentation | 0.01 in | 0.254 mm | 4 | Direct Burial |
