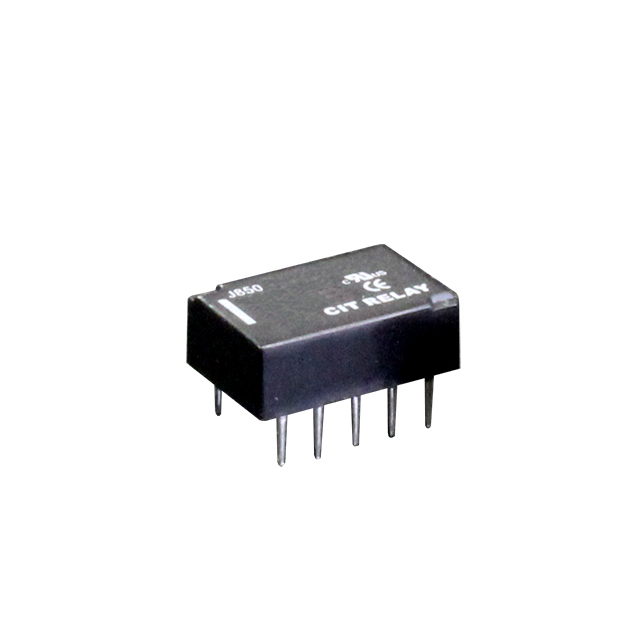

J8502 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 5V
| Part | Coil Resistance | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Coil Current | Termination Style | Mounting Type | Contact Rating (Current) | Must Operate Voltage | Operate Time | Relay Type | Release Time | Must Release Voltage | Contact Form | Switching Voltage [Max] | Coil Voltage | Coil Type | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 178 Ohms | 220 W 250 VA | 85 °C | -40 C | Gold (Au) Silver Palladium (AgPd) | 28.1 mA | PC Pin | Through Hole | 1 A | 3.75 VDC | 4 ms | General Purpose | 4 ms | 0.5 VDC | DPDT (2 Form C) | 220 VDC 250 VAC | 5 VDC | Non Latching | Sealed - Fully |
CIT Relay and Switch | 64.3 Ohms | 220 W 250 VA | 85 °C | -40 C | Gold (Au) Silver Palladium (AgPd) | 46.7 mA | PC Pin | Through Hole | 1 A | 2.25 VDC | 4 ms | General Purpose | 4 ms | 0.3 VDC | DPDT (2 Form C) | 220 VDC 250 VAC | Non Latching | Sealed - Fully | |
CIT Relay and Switch | 1.028 kOhms | 220 W 250 VA | 85 °C | -40 C | Gold (Au) Silver Palladium (AgPd) | 11.7 mA | PC Pin | Through Hole | 1 A | 9 VDC | 4 ms | General Purpose | 4 ms | 1.2 VDC | DPDT (2 Form C) | 220 VDC 250 VAC | 12 VDC | Non Latching | Sealed - Fully |
CIT Relay and Switch | 579 Ohms | 220 W 250 VA | 85 °C | -40 C | Gold (Au) Silver Palladium (AgPd) | 15.5 mA | PC Pin | Through Hole | 1 A | 6.75 VDC | 4 ms | General Purpose | 4 ms | 0.9 VDC | DPDT (2 Form C) | 220 VDC 250 VAC | 9 VDC | Non Latching | Sealed - Fully |
CIT Relay and Switch | 2.88 kOhms | 220 W 250 VA | 85 °C | -40 C | Gold (Au) Silver Palladium (AgPd) | 8.3 mA | PC Pin | Through Hole | 1 A | 18 VDC | 4 ms | General Purpose | 4 ms | 2.4 VDC | DPDT (2 Form C) | 220 VDC 250 VAC | 24 VDC | Non Latching | Sealed - Fully |
