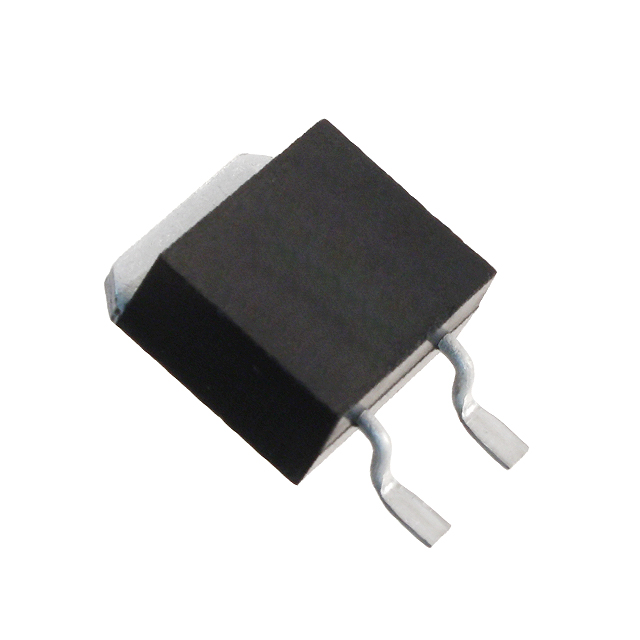

PWR263S Series

Catalog

POWER RESISTOR 1% /TUBE PACKAGING

...

Part	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Composition	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Temperature Coefficient	Package / Case	Features	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

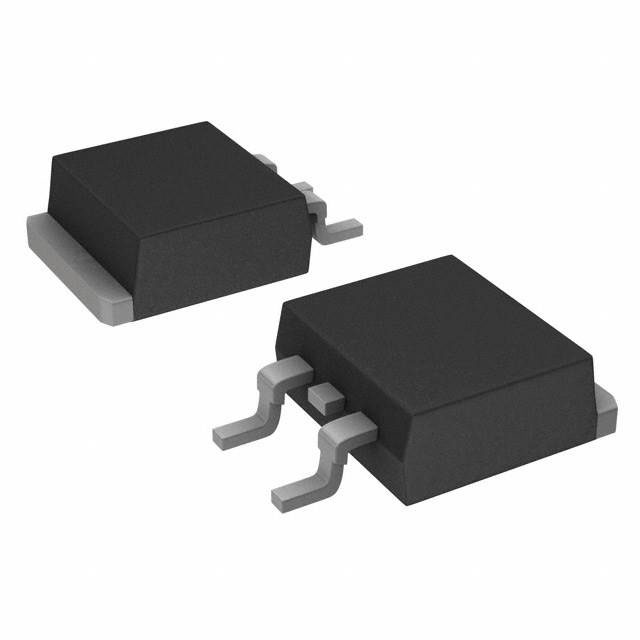

Bourns Inc. PWR263S-35-R100F	AEC-Q200	4.5 mm	0.177 in	0.1 Ohms	35 W	155 C	-55 C	1 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2
Bourns Inc. PWR263S-35-4000JE	AEC-Q200	4.5 mm	0.177 in	400 Ohms	35 W	155 C	-55 C	5 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2
Bourns Inc. PWR263S-20-1502F	AEC-Q200			15 kOhms	20 W	155 C	-55 C	1 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2	4.88 mm	0.192 "
Bourns Inc. PWR263S-20-3300JE	AEC-Q200			330 Ohms	20 W	155 C	-55 C	5 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2	4.88 mm	0.192 "
Bourns Inc. PWR263S-35-1902JE	AEC-Q200	4.5 mm	0.177 in	19 kOhms	35 W	155 C	-55 C	5 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2
Bourns Inc. PWR263S-20-4702JE	AEC-Q200			47000 Ohms	20 W	155 C	-55 C	5 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2	4.88 mm	0.192 "
Bourns Inc. PWR263S-35-3R30J	AEC-Q200	4.5 mm	0.177 in	3.3 Ohms	35 W	155 C	-55 C	5 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2
Bourns Inc. PWR263S-35-27R0FE	AEC-Q200	4.5 mm	0.177 in	27 Ohms	35 W	155 C	-55 C	1 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2
Bourns Inc. PWR263S-35-1501F	AEC-Q200	4.5 mm	0.177 in	1500 Ohms	35 W	155 C	-55 C	1 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2
Bourns Inc. PWR263S-35-2000J	AEC-Q200	4.5 mm	0.177 in	200 Ohms	35 W	155 C	-55 C	5 %	Thick Film	TO-263	0.398 in	10.1 mm	0.409 in	10.4 mm	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	2
