364M279 Series
Manufacturer: KINGS
Beta
⌘K

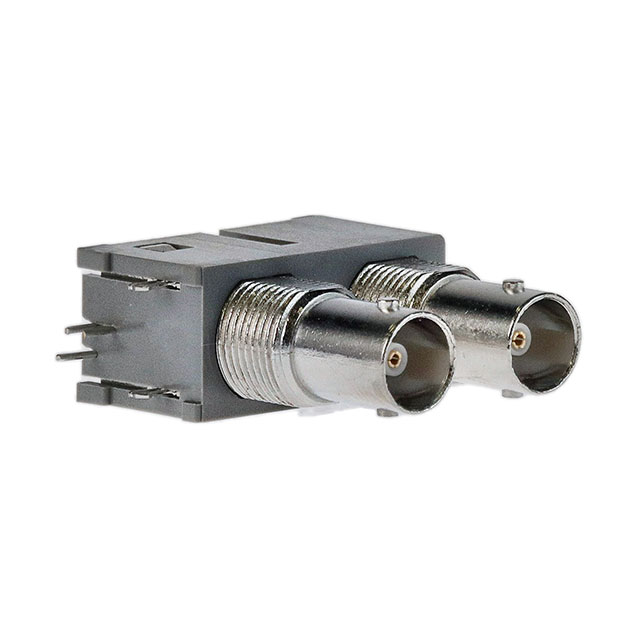

CONN BNC JACK R/A 75 OHM PCB
| Part | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Dielectric Material | Insertion Loss | Voltage Rating | Housing Color | Center Contact Material | Ingress Protection | Connector Style | Contact Termination | Fastening Type | Mounting Feature | Connector Type | Impedance | Frequency - Max [Max] | Number of Ports | Shield Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KINGS | Brass | Gold | -40 C | 165 °C | Nickel | 500 | Polypropylene (PP) | 0.2 dB | 500 V | Silver | Phosphor Bronze | Weatherproof | BNC | Solder | Bayonet Lock | Bulkhead - Front Side Nut | Female Socket Jack | 75 Ohms | 1 GHz | 2 | Solder | Panel Mount Right Angle Through Hole |
