SN65L Series
Manufacturer: Texas Instruments
Beta
⌘K
IC RECEIVER 0/4 16SOIC
| Part | Protocol | Package / Case | Package / Case [x] | Package / Case [y] | Type | Supplier Device Package | Number of Drivers/Receivers [custom] | Number of Drivers/Receivers [custom] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Receiver Hysteresis | Data Rate | Operating Temperature [Max] | Operating Temperature [Min] | Number of Inputs | Output Type | Function | Number of Outputs | Package / Case [custom] | Package / Case [custom] | Input Type | Delay Time | Number of Channels | Data Rate (Max) | Current - Supply | Input | Output | Capacitance - Input | Number of Channels [custom] | Signal Conditioning | Applications | Supplier Device Package [x] | Supplier Device Package [y] | Interface | Number of Outputs [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | LVDS | 16-SOIC | 0.154 in | 3.9 mm | Receiver | 16-SOIC | 0 | 4 | Surface Mount | 3.6 V | 3 V | 50 mV | 560 Mbps | 85 °C | -40 °C | ||||||||||||||||||||||
 Texas Instruments | 28-SSOP | 28-SSOP | Surface Mount | 3.6 V | 3 V | 400 Mbps | 85 °C | -40 °C | 1 | LVDS | Deserializer | 10 | 0.209 in | 5.3 mm | LVDS | ||||||||||||||||||||||
 Texas Instruments | 8-WFDFN Exposed Pad | Buffer ReDriver | 8-WSON (2x2) | Surface Mount | 3.6 V | 2.375 V | 85 °C | -40 °C | 460 ps | 1 | 2 Gbps | 30 mA | PECL | LVPECL | |||||||||||||||||||||||
 Texas Instruments | LVDS | 8-SOIC | 0.154 in | 3.9 mm | Receiver | 8-SOIC | 0 | 1 | Surface Mount | 3.6 V | 2.4 V | 400 Mbps | 85 °C | -40 °C | |||||||||||||||||||||||
 Texas Instruments | 56-VFBGA | 56-BGA Microstar Junior (7x4.5) | Surface Mount | 3.6 V | 3 V | 3.78 Gbps | 85 °C | -40 °C | 28 | LVDS | Serializer | 4 | LVTTL | ||||||||||||||||||||||||
 Texas Instruments | 24-VFQFN Exposed Pad | Buffer ReDriver | 24-VQFN (4x4) | Surface Mount | 3.6 V | 3 V | 85 °C | 0 °C | 305 ps | 5 Gbps | 100 mA | CML | 1.25 pF | 2 | Input Equalization Output De-Emphasis | USB 3.0 | |||||||||||||||||||||

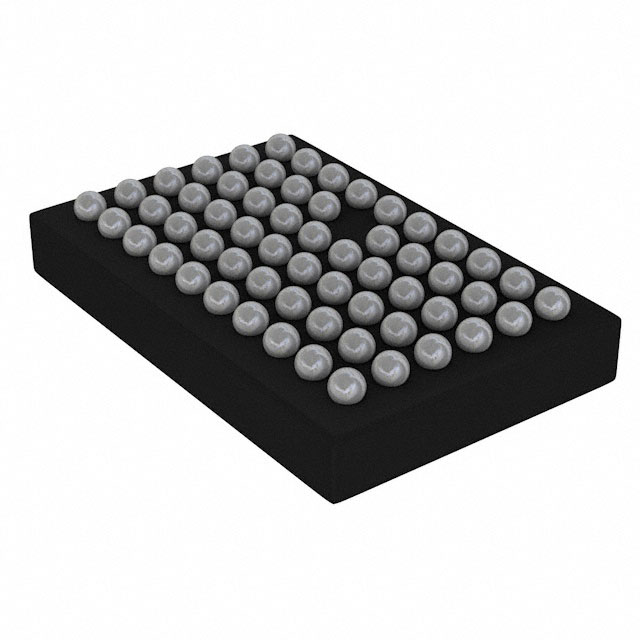

 Texas Instruments | 59-VFBGA | 59-BGA Microstar Junior | Surface Mount | 1.95 V | 1.65 V | Machine Vision Video Conferencing | 7 | 4.5 | I2C SPI | ||||||||||||||||||||||||||||
 Texas Instruments | 48-VFBGA | 48-BGA MICROSTAR JUNIOR (4x4) | Surface Mount | 1.95 V | 1.65 V | 405 Mbps | 85 °C | -40 °C | 1 | LVDS | Deserializer | CMOS | 27 | ||||||||||||||||||||||||
 Texas Instruments | 8-MSOP 8-TSSOP | Buffer ReDriver | Surface Mount | 3.6 V | 3 V | 85 °C | -40 °C | 0.118 in | 630 ps | 1 | 2 Gbps | 50 mA | LVPECL | 0.6 pF | 3 mm | ||||||||||||||||||||||
 Texas Instruments | 28-SSOP | 28-SSOP | Surface Mount | 3.6 V | 3 V | 660 Mbps | 85 °C | -40 °C | 1 | LVDS | Deserializer | 10 | 0.209 in | 5.3 mm | LVDS |
