2823354 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

30P,2MM,SHRD HDR,DRRT,2.8,0.1AU,

Part	Contact Shape	Voltage Rating	Material Flammability Rating	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions

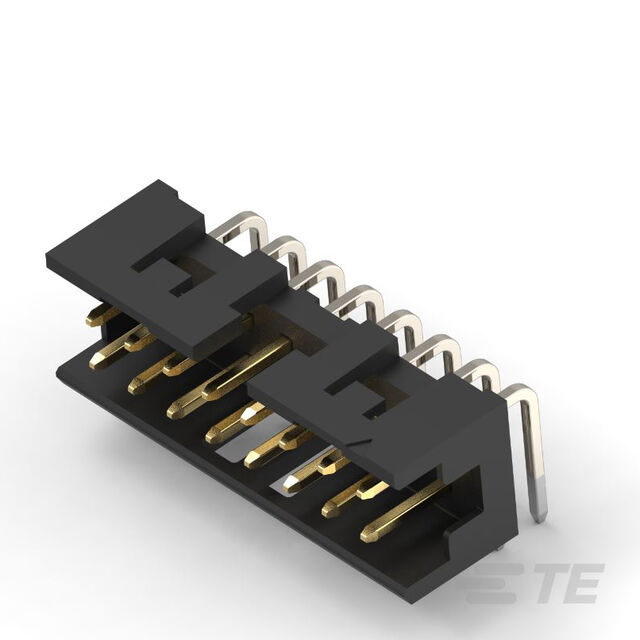

TE Connectivity Raychem Cable Protection 3-2823354-0	Square	125 VAC	UL94 V-0	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Phosphor Bronze	All	Male Pin	3.94 µin	0.1 µm	Detent Lock	30	0.244 in	6.2 mm	Tin	Black	0.11 in	2.8 mm	Solder	4 mm	0.157 in	Gold	2 A	Header	Through Hole Right Angle	0.079 in	2 mm	2	Thermoplastic	157.5 Áin	4 Ám

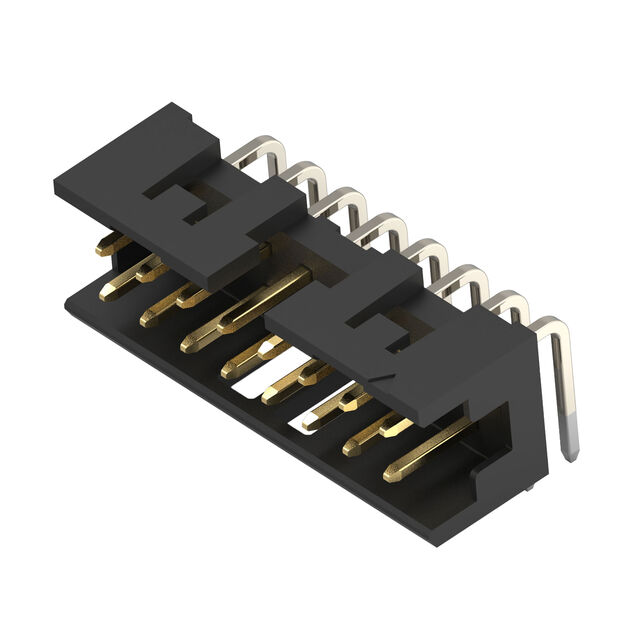

TE Connectivity Raychem Cable Protection 4-2823354-0	Square	125 VAC	UL94 V-0	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Phosphor Bronze	All	Male Pin	3.94 µin	0.1 µm	Detent Lock	40	0.244 in	6.2 mm	Tin	Black	0.11 in	2.8 mm	Solder	4 mm	0.157 in	Gold	2 A	Header	Through Hole Right Angle	0.079 in	2 mm	2	Thermoplastic	157.5 Áin	4 Ám

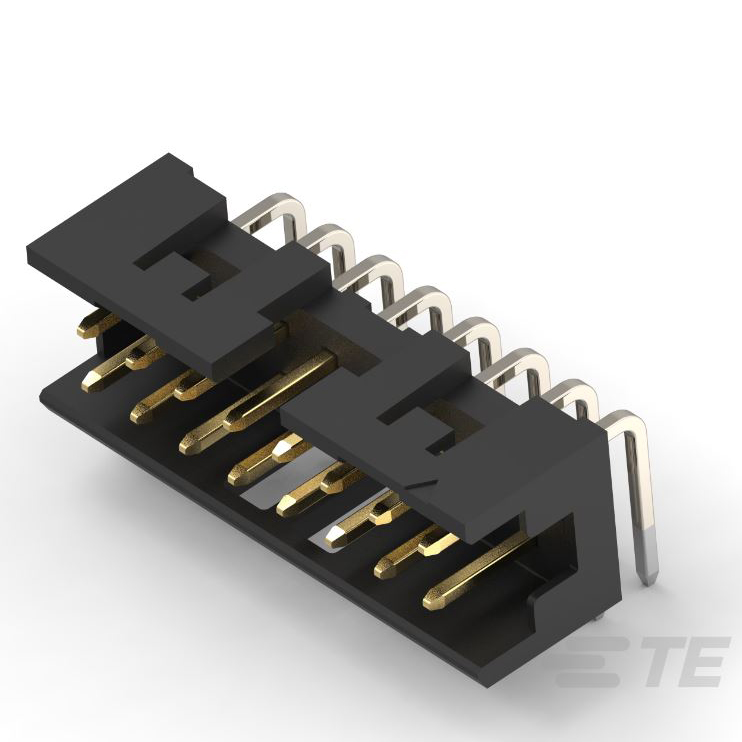

TE Connectivity Raychem Cable Protection 1-2823354-6	Square	125 VAC	UL94 V-0	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Phosphor Bronze	All	Male Pin	3.94 µin	0.1 µm	Detent Lock		0.244 in	6.2 mm	Tin	Black	0.11 in	2.8 mm	Solder	4 mm	0.157 in	Gold	2 A	Header	Through Hole Right Angle	0.079 in	2 mm	2	Thermoplastic	157.5 Áin	4 Ám	16

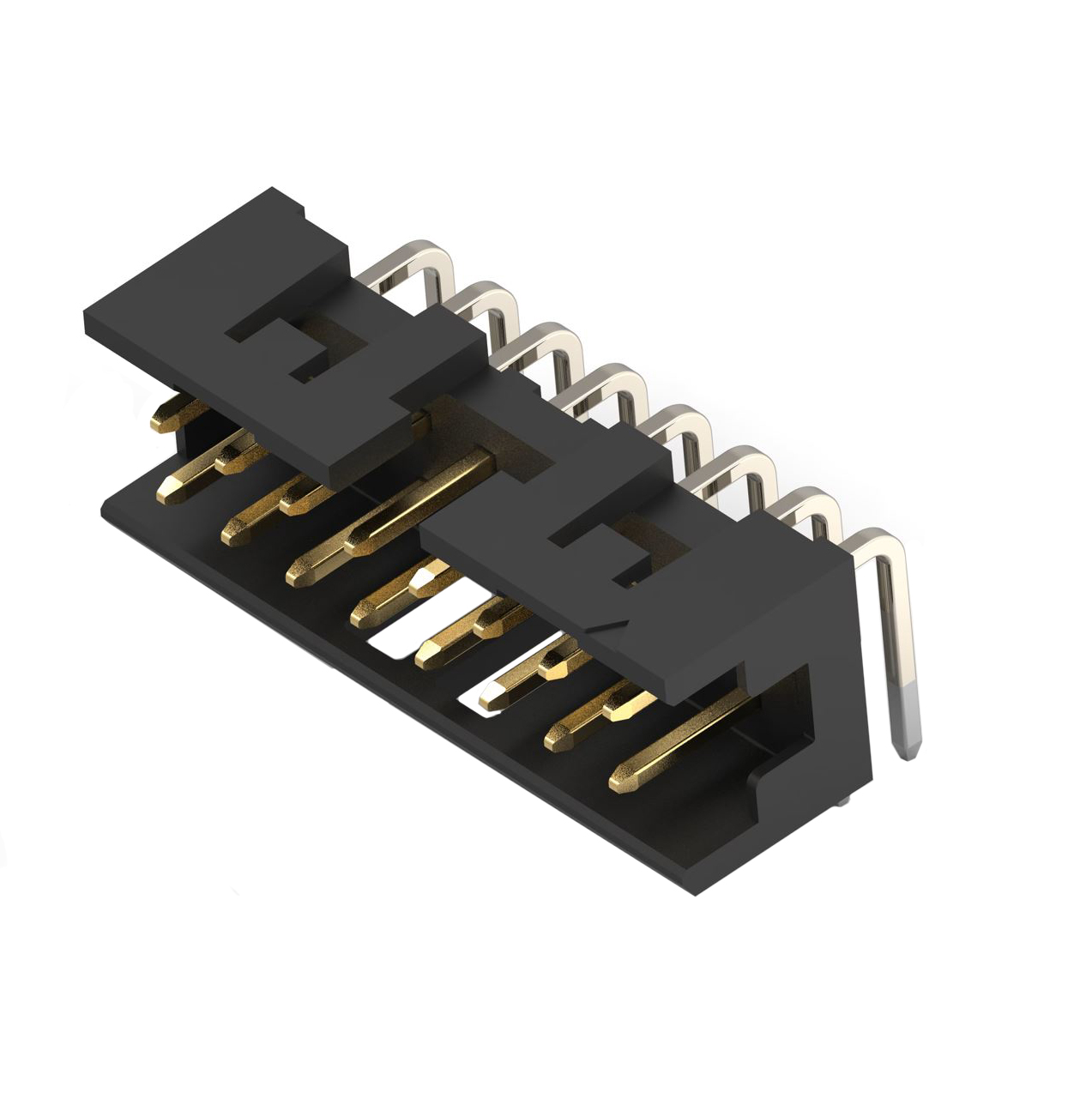

TE Connectivity Raychem Cable Protection 1-2823354-4	Square	125 VAC	UL94 V-0	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Phosphor Bronze	All	Male Pin	3.94 µin	0.1 µm	Detent Lock	14	0.244 in	6.2 mm	Tin	Black	0.11 in	2.8 mm	Solder	4 mm	0.157 in	Gold	2 A	Header	Through Hole Right Angle	0.079 in	2 mm	2	Thermoplastic	157.5 Áin	4 Ám

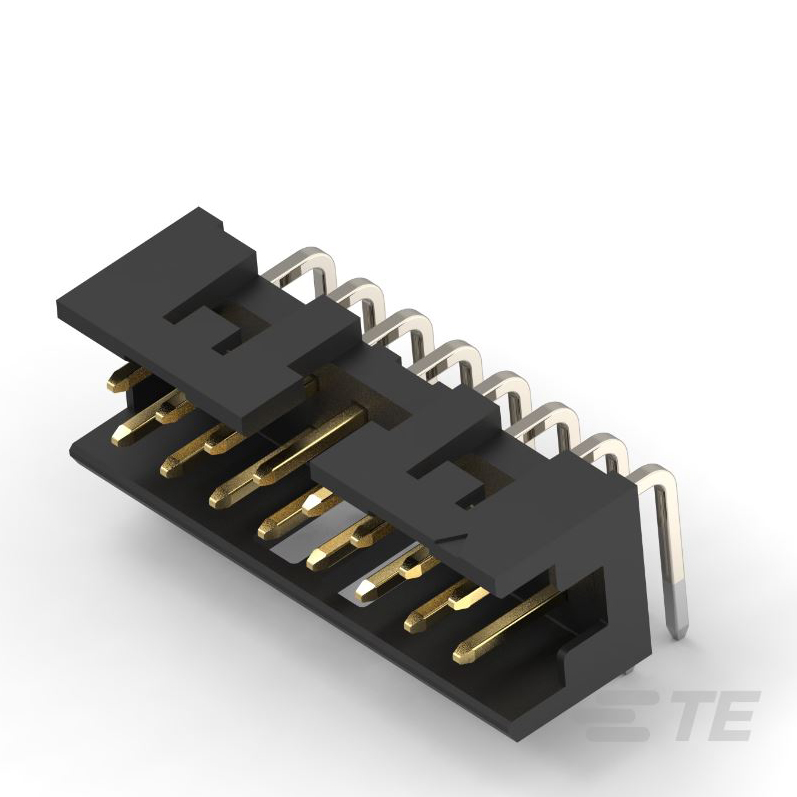

TE Connectivity Raychem Cable Protection 2-2823354-0	Square	125 VAC	UL94 V-0	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Phosphor Bronze	All	Male Pin	3.94 µin	0.1 µm	Detent Lock	20	0.244 in	6.2 mm	Tin	Black	0.11 in	2.8 mm	Solder	4 mm	0.157 in	Gold	2 A	Header	Through Hole Right Angle	0.079 in	2 mm	2	Thermoplastic	157.5 Áin	4 Ám

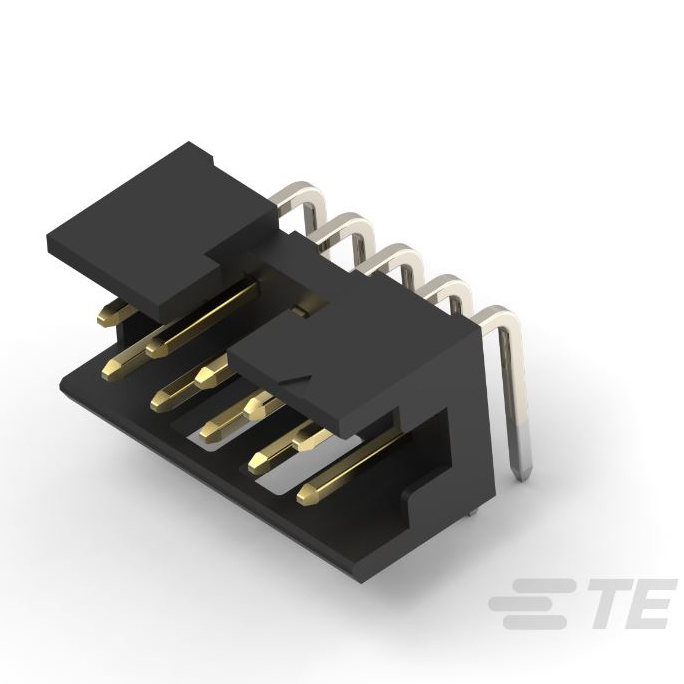

TE Connectivity Raychem Cable Protection 1-2823354-0	Square	125 VAC	UL94 V-0	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Phosphor Bronze	All	Male Pin	3.94 µin	0.1 µm	Detent Lock	10	0.244 in	6.2 mm	Tin	Black	0.11 in	2.8 mm	Solder	4 mm	0.157 in	Gold	2 A	Header	Through Hole Right Angle	0.079 in	2 mm	2	Thermoplastic	157.5 Áin	4 Ám

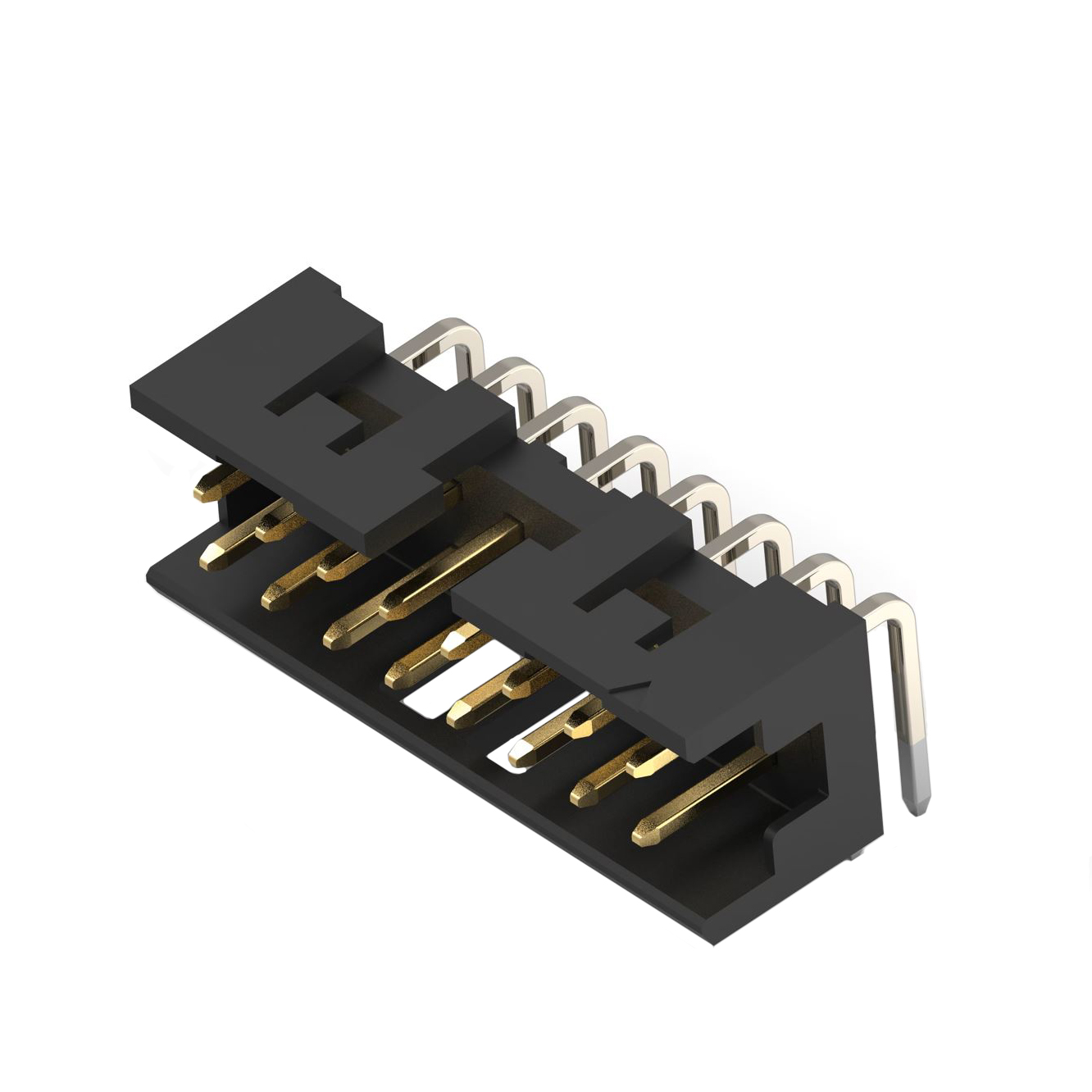

TE Connectivity Raychem Cable Protection 1-2823354-8	Square	125 VAC	UL94 V-0	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Phosphor Bronze	All	Male Pin	3.94 µin	0.1 µm	Detent Lock	18	0.244 in	6.2 mm	Tin	Black	0.11 in	2.8 mm	Solder	4 mm	0.157 in	Gold	2 A	Header	Through Hole Right Angle	0.079 in	2 mm	2	Thermoplastic	157.5 Áin	4 Ám
