1267AY Series

Catalog

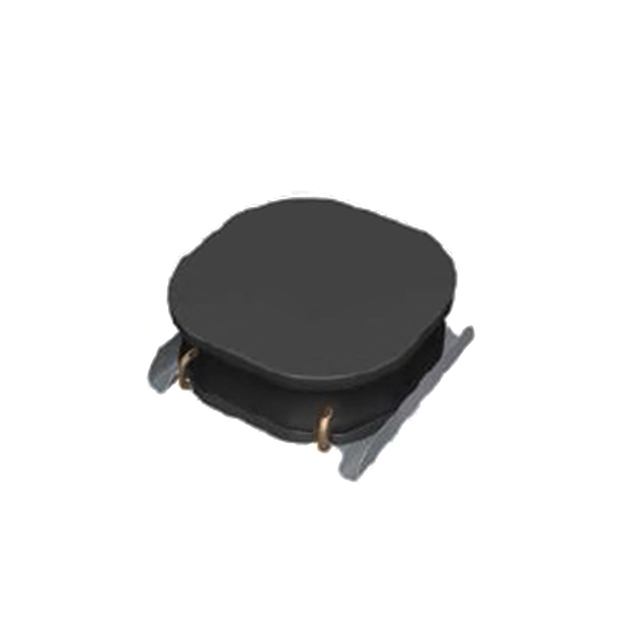

INDUCTOR, 4.7UH, 5.3A, 30%, WIREWOUND

Part	Type	Mounting Type	Material - Core	DC Resistance (DCR) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Amps)	Inductance	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max]	Shielding	Inductance Frequency - Test
Murata Electronics 1267AY-4R7N=P3	Drum Core Wirewound	Surface Mount	Ferrite	20.4 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	5.1 A	4.7 ÁH	30 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-3R3N=P3	Drum Core Wirewound	Surface Mount	Ferrite	15.6 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	6.1 A	3.3 µH	30 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-101M=P3	Drum Core Wirewound	Surface Mount	Ferrite	336 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	1.1 A	100 µH	20 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-1R0N=P3	Drum Core Wirewound	Surface Mount	Ferrite	8.4 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	10.4 A	1 µH	30 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-470M=P3	Drum Core Wirewound	Surface Mount	Ferrite	168 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	1.6 A	47 µH	20 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-100M=P3	Drum Core Wirewound	Surface Mount	Ferrite	39.6 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	3.3 A	10 µH	20 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-150M=P3	Drum Core Wirewound	Surface Mount	Ferrite	58.8 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	2.6 A	15 µH	20 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-1R5N=P3	Drum Core Wirewound	Surface Mount	Ferrite	10.8 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	8.2 A	1.5 µH	30 %	4 mm	0.157 in	Shielded	100 kHz
Murata Electronics 1267AY-2R2N=P3	Drum Core Wirewound	Surface Mount	Ferrite	13.2 mOhm	Nonstandard	0.327 in	8.3 mm	8.3 mm	0.327 "	7.4 A	2.2 µH	30 %	4 mm	0.157 in	Shielded	100 kHz
