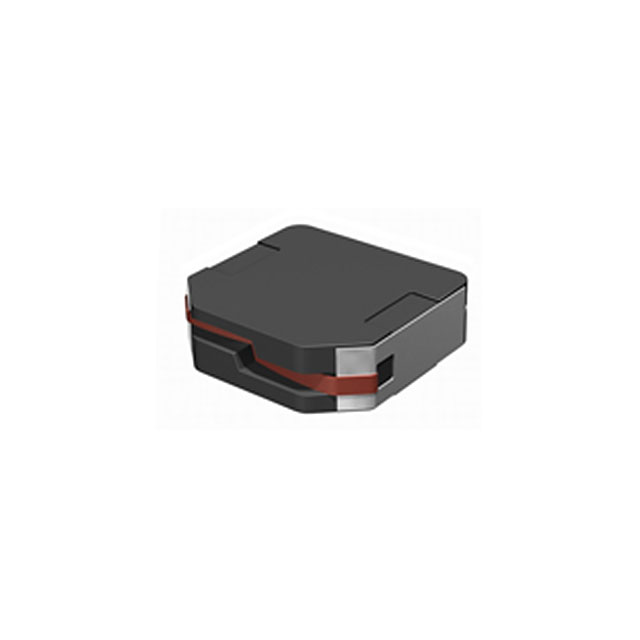

1225AS Series

Catalog

INDUCTOR, 2.2UH, SHIELDED, 2A ROHS COMPLIANT: YES

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Current Rating (Amps)	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Saturation (Isat)	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Inductance	Material - Core	Shielding	DC Resistance (DCR) [Max]
Murata Electronics 1225AS-H-2R2M=P2	3.2 mm	3 mm	0.118 in	0.126 "	20 %	2 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	1.2 A	100 kHz	1.2 mm	0.047 "	70 mOhm	2.2 µH	Ferrite	Shielded
Murata Electronics 1225AS-H-6R8M=P2	3.2 mm	3 mm	0.118 in	0.126 "	20 %	1.1 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	720 mA	100 kHz	1.2 mm	0.047 "	204 mOhm	6.8 µH	Ferrite	Shielded
Murata Electronics 1225AS-H-100M=P2	3.2 mm	3 mm	0.118 in	0.126 "	20 %	0.85 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	580 mA	100 kHz	1.2 mm	0.047 "		10 µH	Ferrite	Shielded	300 mOhm
Murata Electronics 1225AS-H-1R5N=P2	3.2 mm	3 mm	0.118 in	0.126 "	30 %	2.4 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound		100 kHz	1.2 mm	0.047 "		1.5 µH	Ferrite	Shielded
Murata Electronics 1225AS-H-120M=P2	3.2 mm	3 mm	0.118 in	0.126 "	20 %	760 mA	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	550 mA	100 kHz	1.2 mm	0.047 "		12 µH	Ferrite	Shielded	350 mOhm
Murata Electronics 1225AS-H-4R7M=P2	3.2 mm	3 mm	0.118 in	0.126 "	20 %	1.4 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	880 mA	100 kHz	1.2 mm	0.047 "		4.7 ÁH	Ferrite	Shielded	126 mOhm
Murata Electronics 1225AS-H-3R3M=P2	3.2 mm	3 mm	0.118 in	0.126 "	20 %	1.5 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	1 A	100 kHz	1.2 mm	0.047 "		3.3 µH	Ferrite	Shielded	96 mOhm
Murata Electronics 1225AS-H-R47N=P2	3.2 mm	3 mm	0.118 in	0.126 "	30 %	3.1 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	2.5 A	100 kHz	1.2 mm	0.047 "		470 nH	Ferrite	Shielded	31 mOhm
Murata Electronics 1225AS-H-R68N=P2	3.2 mm	3 mm	0.118 in	0.126 "	30 %	2.9 A	Surface Mount	Nonstandard			Drum Core Wirewound	2.7 A	100 kHz	1.2 mm	0.047 "		0.68 µH	Ferrite	Shielded	37 mOhm
Murata Electronics 1225AS-H-1R0N=P2	3.2 mm	3 mm	0.118 in	0.126 "	30 %	2.7 A	Surface Mount	Nonstandard	85 °C	-40 C	Drum Core Wirewound	1.8 A	100 kHz	1.2 mm	0.047 "		1 µH	Ferrite	Shielded	43 mOhm
