207583 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

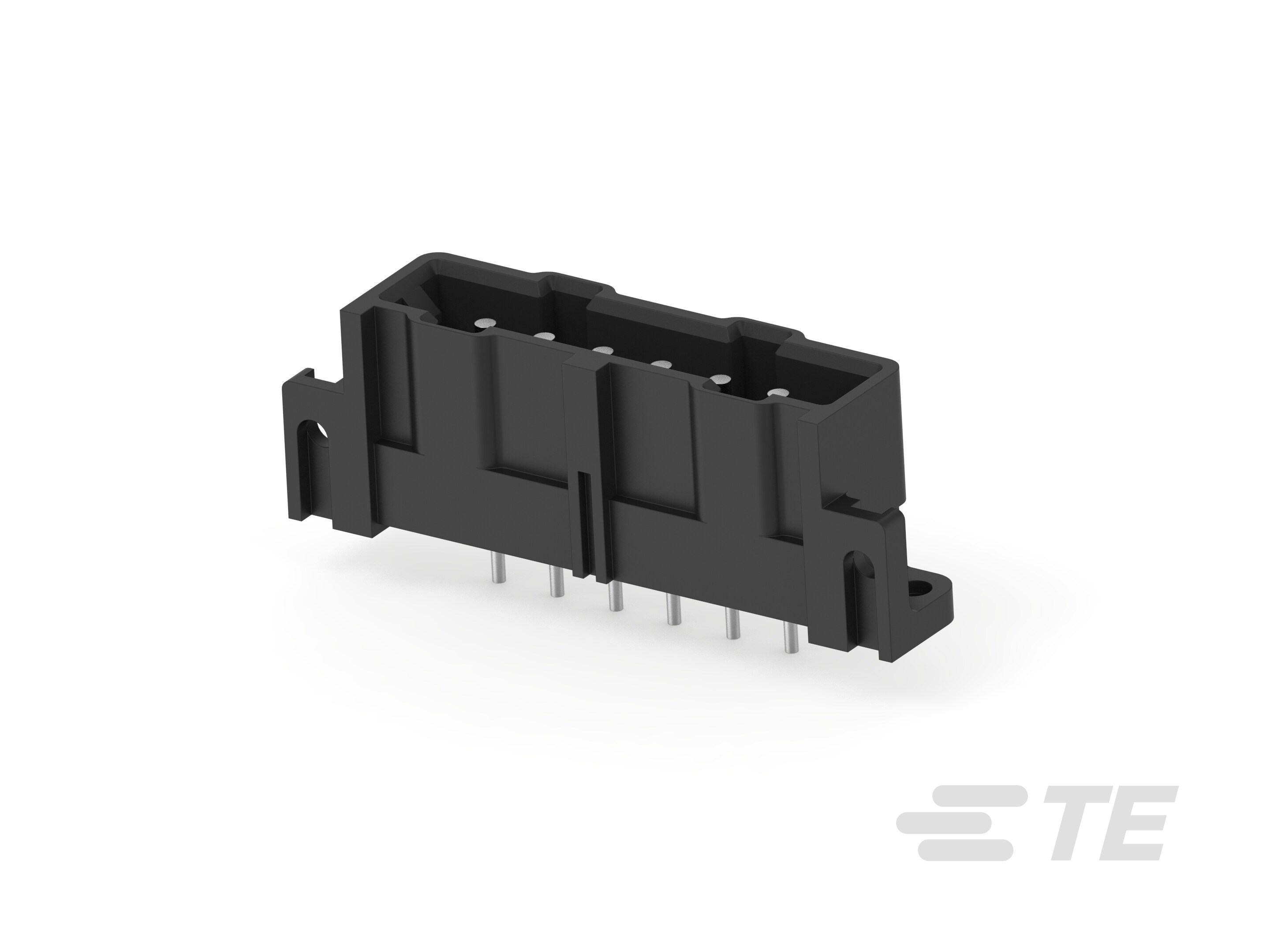

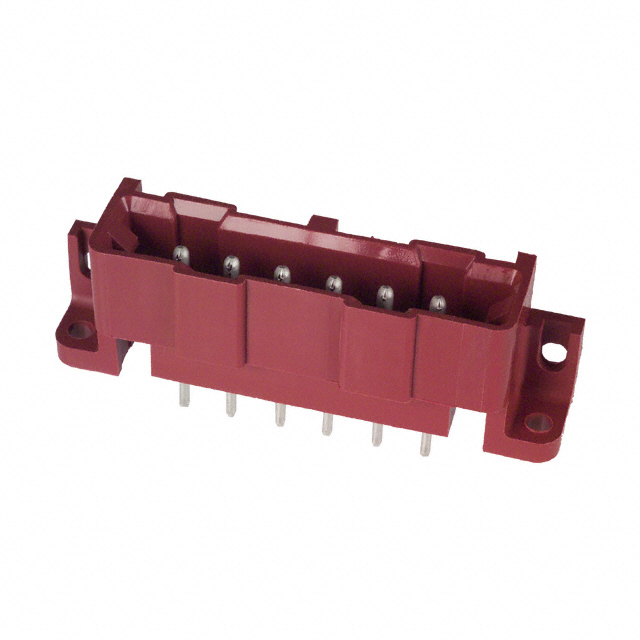

MMATE PIN HDR ASSY,6P LF
| Part | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Insulation Color | Features | Style | Material Flammability Rating | Applications | Insulation Height | Insulation Height | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Type | Shrouding | Number of Positions | Voltage Rating | Number of Positions Loaded | Termination | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 7.5 A | 130 °C | -55 °C | Through Hole | Black Red | Mounting Flange | Board to Board Cable | UL94 V-0 | Automotive General Purpose Industrial | 0.689 in | 17.5 mm | Brass | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Circular | Male Pin | Shrouded - 4 Wall | 6 | 600 V | All | Solder | Header | 5 mm | 0.197 " | Tin | 150 Áin | 3.81 Ám | 1 | Latch Holder | |
 TE Connectivity Raychem Cable Protection | 7.5 A | 130 °C | -55 °C | Through Hole | Black Red | Mounting Flange | Board to Board Cable | UL94 V-0 | Automotive General Purpose Industrial | 0.689 in | 17.5 mm | Brass | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Circular | Male Pin | Shrouded - 4 Wall | 6 | 600 V | All | Solder | Header | 5 mm | 0.197 " | Tin-Lead | 150 Áin | 3.81 Ám | 1 | Latch Holder | Tin-Lead |
