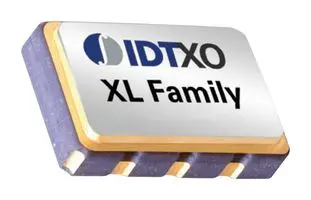

XLH73V Series

Manufacturer: Renesas Electronics Corporation

Catalog

XTAL OSC VCXO 10.0000MHZ HCMOS

Part	Type	Absolute Pull Range (APR)	Output	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator [custom]	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Supply (Max) [Max]	Frequency	Mounting Type	Voltage - Supply	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Disable) (Max) [Max]
Renesas Electronics Corporation XLH73V010.000000I	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	85 °C	-40 C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	32 mA	10 MHz	Surface Mount	3.3 V
Renesas Electronics Corporation XLH73V028.126100I	VCXO		HCMOS			Enable/Disable	85 °C	-40 C	Crystal	6-SMD No Lead	5 mm	0.197 "	0.276 "	7 mm	35 mA	28.1261 MHz	Surface Mount	3.3 V	0.057 in	1.45 mm
Renesas Electronics Corporation XLH73V148.351648X	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	70 °C	-20 ░C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	55 mA	148.351648 MHz	Surface Mount	3.3 V
Renesas Electronics Corporation XLH73V020.000000X	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	70 °C	-20 ░C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	32 mA	20 MHz	Surface Mount	3.3 V
Renesas Electronics Corporation XLH73V176.000000X	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	70 °C	-20 ░C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	55 mA	176 MHz	Surface Mount	3.3 V
Renesas Electronics Corporation XLH73V024.576000I	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	85 °C	-40 C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	35 mA	24.576 MHz	Surface Mount	3.3 V			35 mA
Renesas Electronics Corporation XLH73V025.000000X	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	70 °C	-20 ░C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	35 mA	25 MHz	Surface Mount	3.3 V
Renesas Electronics Corporation XLH73V016.368000X	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	70 °C	-20 ░C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	32 mA	16.368 MHz	Surface Mount	3.3 V
Renesas Electronics Corporation XLH73V090.316800X	VCXO	50 ppm	HCMOS	0.055 in	1.4 mm	Enable/Disable	70 °C	-20 ░C	Crystal	6-SMD No Lead	5.2 mm	0.205 "	0.295 "	7.5 mm	47 mA	90.3168 MHz	Surface Mount	3.3 V
Renesas Electronics Corporation XLH73V199.680000I	VCXO		HCMOS			Enable/Disable	85 °C	-40 C	Crystal	6-SMD No Lead	5 mm	0.197 "	0.276 "	7 mm	55 mA	199.68 MHz	Surface Mount	3.3 V	0.057 in	1.45 mm
