71CF36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

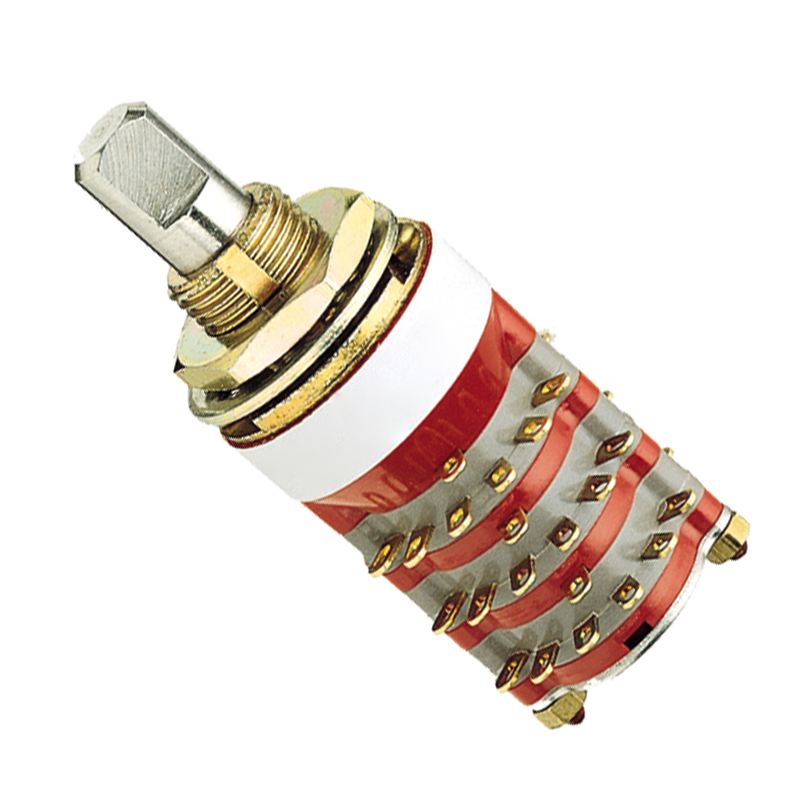

SWITCH ROTARY 4/6POS 250MA 115V
| Part | Number of Decks | Voltage Rating - AC | Actuator Length [x] | Mounting Type | Voltage Rating - DC | Index Stops | Contact Timing | Angle of Throw | Circuit per Deck | Current Rating (Amps) | Contact Material | Number of Poles per Deck [custom] | Number of Poles per Deck [custom] | Depth Behind Panel [z] | Termination Style | Actuator Type [diameter] | Actuator Type | Number of Positions | Number of Poles per Deck | Circuit per Deck [custom] | Number of Decks | Number of Decks [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 1 2 | 115 V | 9.53 mm | Panel Mount Right Angle Through Hole | 30 V | Fixed | Non-Shorting (BBM) | 36 ° | DP4T SP6T | 250 mA | Silver Alloy | 2 | 1 | 41.48 mm | PC Pin | 0.25 in 3.17 mm | Concentric | 4 6 | ||||
Grayhill Inc. | 1 2 | 115 V | 9.53 mm | Panel Mount Right Angle Through Hole | 30 V | Fixed | Shorting (MBB) | 36 ° | DP3T SPDT | 250 mA | Silver Alloy | 2 | 1 | 41.48 mm | PC Pin | 0.25 in 3.17 mm | Concentric | 2 3 | ||||
Grayhill Inc. | 3 | 115 V | 9.53 mm | Panel Mount Right Angle Through Hole | 30 V | Fixed | Non-Shorting (BBM) | 36 ° | DP5T | 250 mA | Silver Alloy | PC Pin | 0.25 in 3.17 mm | Concentric | 5 | 2 | ||||||
 Grayhill Inc. | 115 V | 9.53 mm | Panel Mount | 30 V | Fixed | Shorting (MBB) | 36 ° | 250 mA | Silver Alloy | Solder Lug | 0.25 in 3.17 mm | Concentric | 10 | 1 2 | DP10T SP10T | 1 2 | ||||||
Grayhill Inc. | 115 V | 9.53 mm | Panel Mount Right Angle Through Hole | 30 V | Fixed | Non-Shorting (BBM) | 36 ° | SP5T | 250 mA | Silver Alloy | 35.94 mm | PC Pin | 0.25 in 3.17 mm | Concentric | 5 | 1 | 1 |
