77255 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

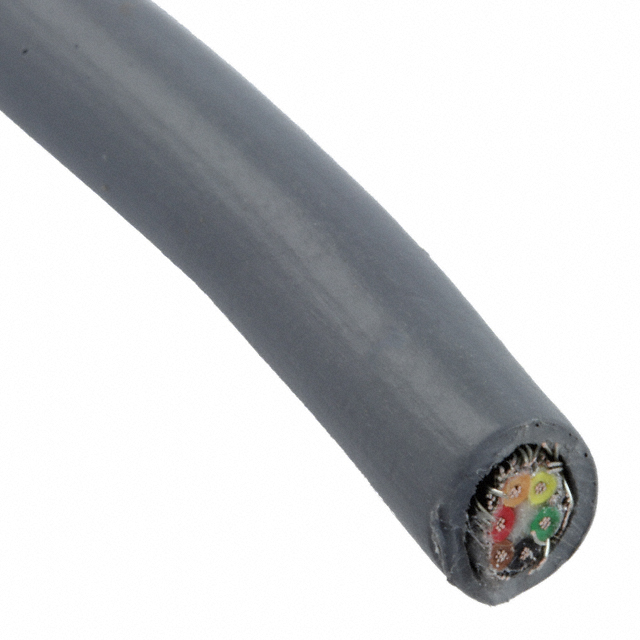

CABLE 6COND 28AWG SHLD
| Part | Shield Coverage | Shield Material | Shield Type | Voltage | Conductor Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Number of Conductors | Wire Gauge | Length | Length | Jacket Color | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | Braid Foil | 600 V | Copper Tinned | ISO 10993 UL Style 21915 | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | 0.202 in | 5.13 mm | Multi-Conductor | 6 | 28 AWG | 304.8 m | 1000 ft | Slate | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 7 | 36 AWG | ||
ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | Braid Foil | 600 V | Copper Tinned | ISO 10993 UL Style 21915 | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | 0.202 in | 5.13 mm | Multi-Conductor | 6 | 28 AWG | Slate | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 7 | 36 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | Braid Foil | 600 V | Copper Tinned | ISO 10993 UL Style 21915 | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | 0.202 in | 5.13 mm | Multi-Conductor | 6 | 28 AWG | Slate | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 7 | 36 AWG |
