RL90 Series

Catalog

FAN BLOWER 121X37MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Air Flow	Air Flow	Fan Type	Termination	RPM	Width [x]	Weight [custom]	Weight [custom]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Voltage - Rated	Bearing Type	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]

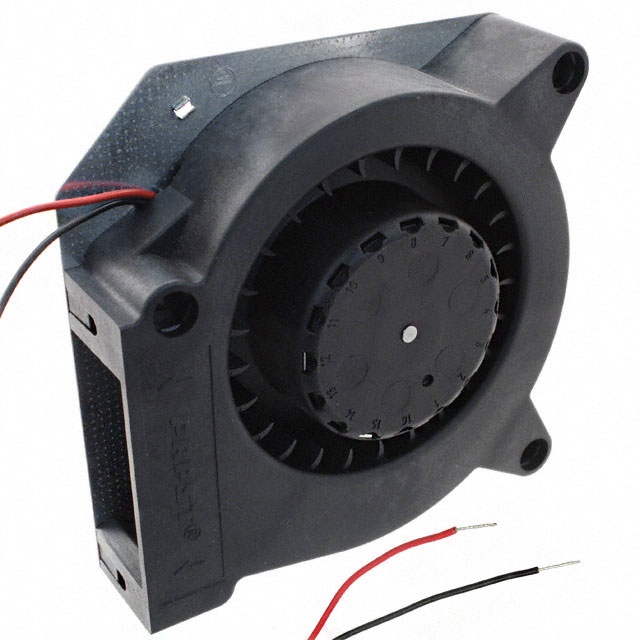

ebm-papst Inc. RL90-18/14N	62500 Hrs	Glass Filled Plastic	28 V	12 VDC	Fiberglass Reinforced Plastic	0.658 mł/min	23.5 CFM	Blower	2 Wire Leads	2500 RPM	37 mm	420.03 g	0.926 lb	5 W	75 ░C	-30 ░C	58 dB(A)	121 mm	121 mm	Square/Rounded	24 VDC	Ball
ebm-papst Inc. RL90-18/14NG	62500 Hrs	Glass Filled Plastic	28 V	12 VDC	Fiberglass Reinforced Plastic	0.658 mł/min	23.5 CFM	Blower	2 Wire Leads	2500 RPM	37 mm	420.03 g	0.926 lb	5 W	75 ░C	-10 °C	58 dB(A)	121 mm	121 mm	Square/Rounded	24 VDC	Sleeve

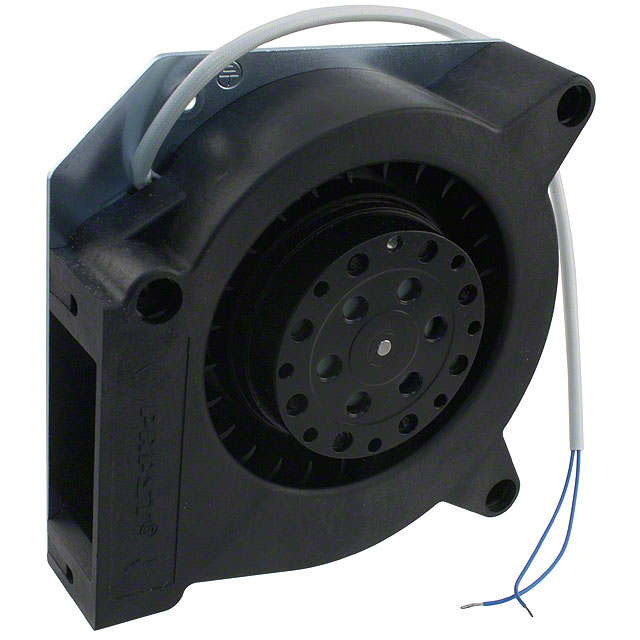

ebm-papst Inc. RL90-18/06	37500 Hrs	Glass Filled Plastic			Fiberglass Reinforced Plastic	0.692 m³/min	24.7 CFM	Blower Flatpak	2 Wire Leads	2550 RPM	37 mm	680.4 g	1.5 lbs	19.5 W	85 °C	-30 ░C	60 dB(A)	121 mm			115 VAC	Ball	121 mm	-30 °C	185 °F

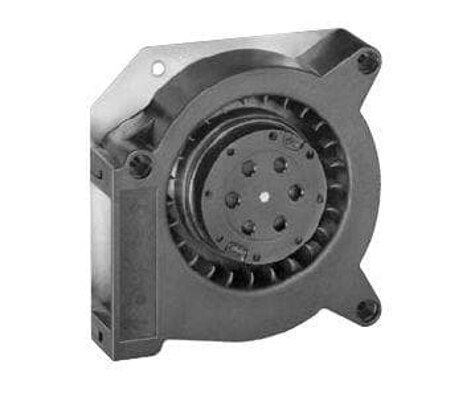

ebm-papst Inc. RL90-18/56	37500 Hrs	Glass Filled Plastic			Fiberglass Reinforced Plastic	0.658 mł/min	23.5 CFM	Blower Flatpak	2 Wire Leads	2450 RPM	37 mm	680.4 g	1.5 lbs	20 W	70 °C	-30 ░C	60 dB(A)	121 mm			230 VAC	Ball	121 mm	-30 °C	70 °C
