BD9C401 Series

Catalog

IC REG BUCK ADJ 4A 8HTSOP-J

Part	Frequency - Switching	Output Configuration	Mounting Type	Number of Outputs	Synchronous Rectifier	Function	Package / Case	Package / Case	Package / Case	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Supplier Device Package	Output Type	Voltage - Input (Max) [Max]	Voltage - Output	Board Type	Regulator Topology	Utilized IC / Part	Outputs and Type	Outputs and Type	Main Purpose	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]
Rohm Semiconductor BD9C401EFJ-E2	500 kHz	Positive	Surface Mount	1		Step-Down	0.154 in	8-SOIC	3.9 mm	Buck	85 °C	-40 °C	4.5 V	4 A	0.8 V	12.6 V	8-HTSOP-J	Adjustable	18 V

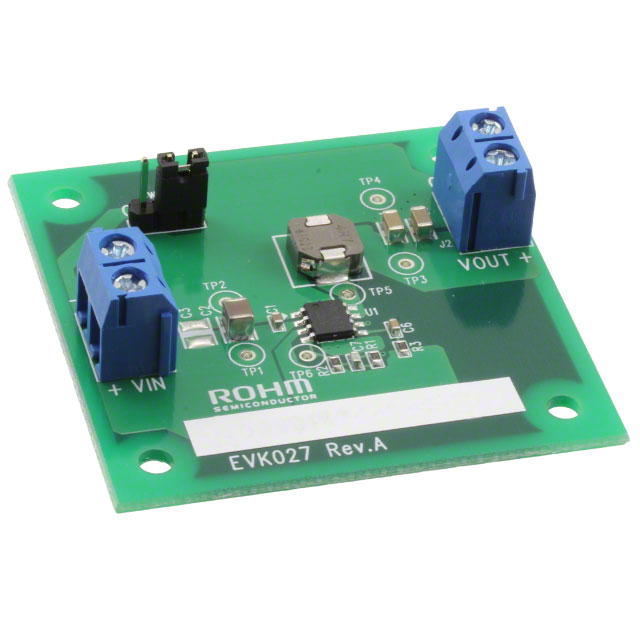

Rohm Semiconductor BD9C401EFJ-EVK-001	500 kHz													4 A						3.3 V	Fully Populated	Buck	BD9C401	Non-Isolated	1	DC/DC Step Down	Board(s)	18 V	4.72 V
