845-096 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 96POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Read Out	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Card Type	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Contact Type	Gender	Number of Positions	Number of Rows [custom]	Features	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
EDAC Inc. 845-096-555-212	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	Cantilever	Female	96	2	Card Extender	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Board Edge Straddle Mount

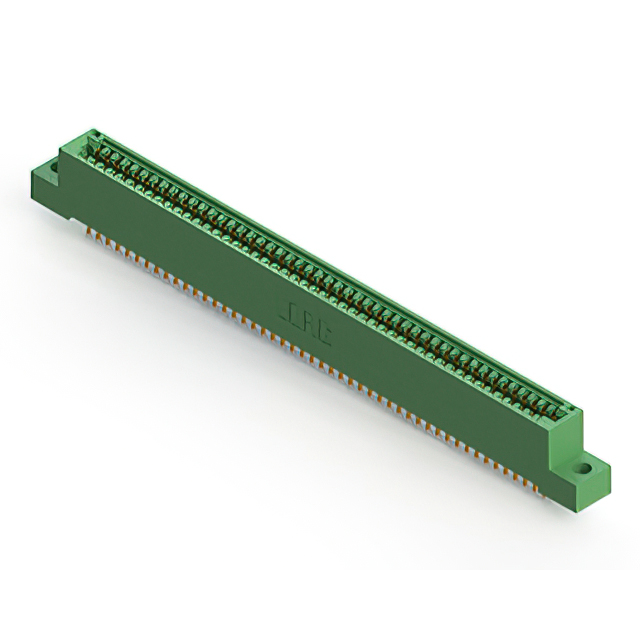

EDAC Inc. 845-096-556-204	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.1 "	2.54 mm	Cantilever	Female	96	2	Card Extender	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Board Edge Straddle Mount

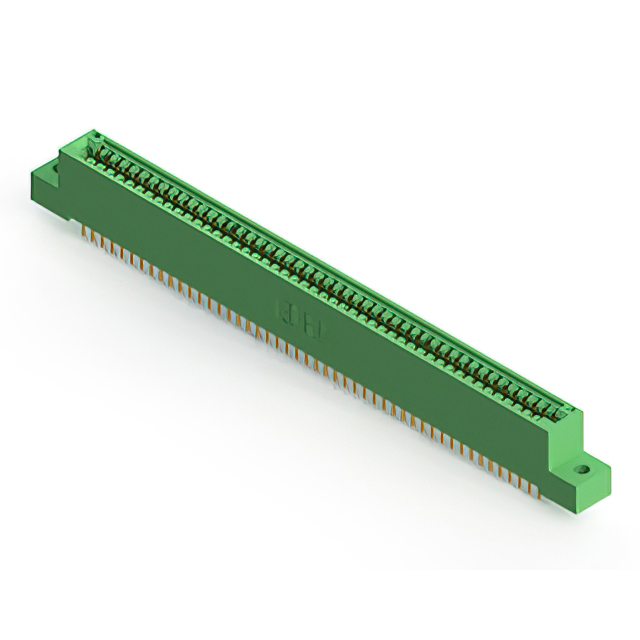

EDAC Inc. 845-096-525-202	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green		0.128 "	3.25 mm	0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Through Hole
EDAC Inc. 845-096-500-802	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green		0.128 "	3.25 mm	0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	125 °C	-40 C	Through Hole

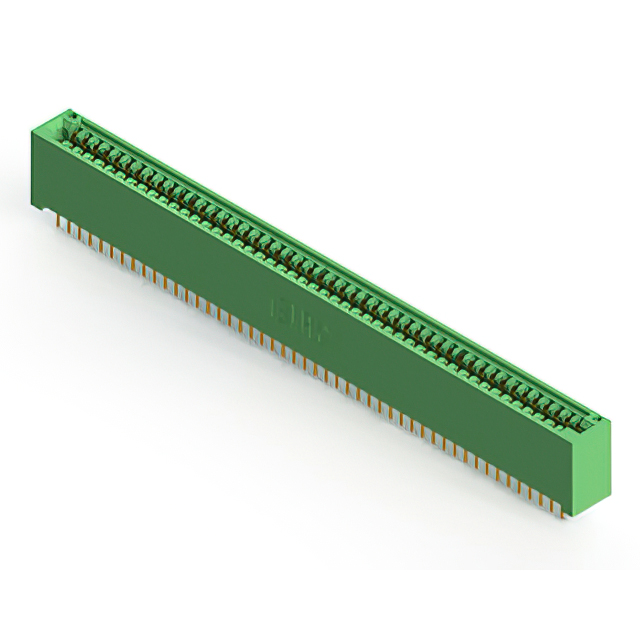

EDAC Inc. 845-096-525-201	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green				0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Through Hole
EDAC Inc. 845-096-500-512	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	125 °C	-40 C	Through Hole

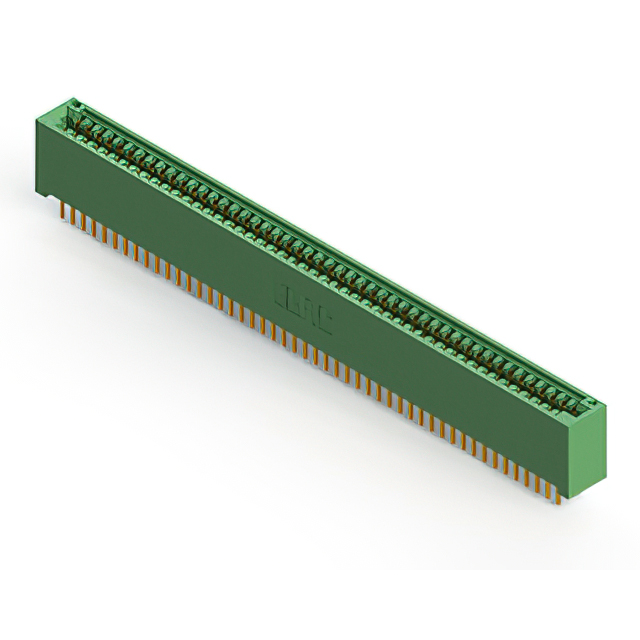

EDAC Inc. 845-096-523-201	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green				0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Through Hole

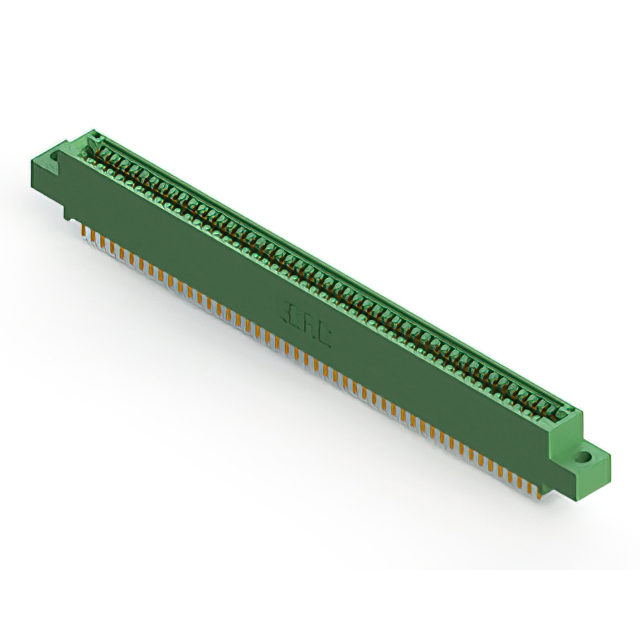

EDAC Inc. 845-096-521-504	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green		0.156 "	3.96 mm	0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Through Hole
EDAC Inc. 845-096-559-812	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Right Angle Through Hole
EDAC Inc. 845-096-559-512	Diallyl Phthalate (DAP)	2	Gold	Dual	48	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	Cantilever	Female	96	2		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Right Angle Through Hole
