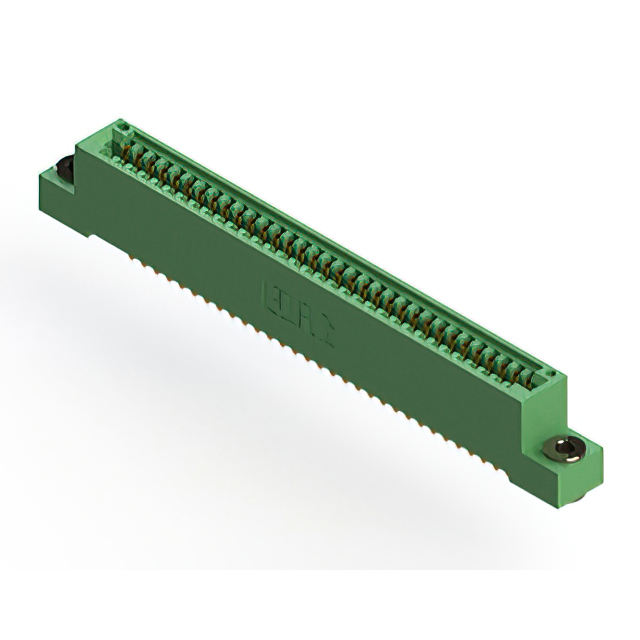

845-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 33POS 0.100
| Part | Material - Insulation | Termination Rows | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions/Bay/Row | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Type | Read Out | Number of Rows | Contact Material | Gender | Number of Positions [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Card Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Right Angle Through Hole | Non Specified - Single Edge | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder Eyelet(s) | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Through Hole | Non Specified - Single Edge | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Right Angle Through Hole | Non Specified - Single Edge | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 33 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Green | Cantilever | Single | 1 | Copper Alloy | Female | 33 | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | Gold |
