052044 Series

Manufacturer: Molex

Catalog

CONN FFC FPC TOP 6POS 1.25MM R/A

Part	Material Flammability Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Number of Positions	Cable End Type	Connector/Contact Type	Housing Material	Contact Finish	Contact Material	Mounting Type	FFC, FCB Thickness	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Housing Color	Pitch [x]	Pitch [x]
Molex 0520440645	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	6	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520440945	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	9	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520442145	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	21	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520442245	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	22 positions	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520442645	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	26	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520441045	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	10	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520441745	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC		Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520441145	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	11	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm

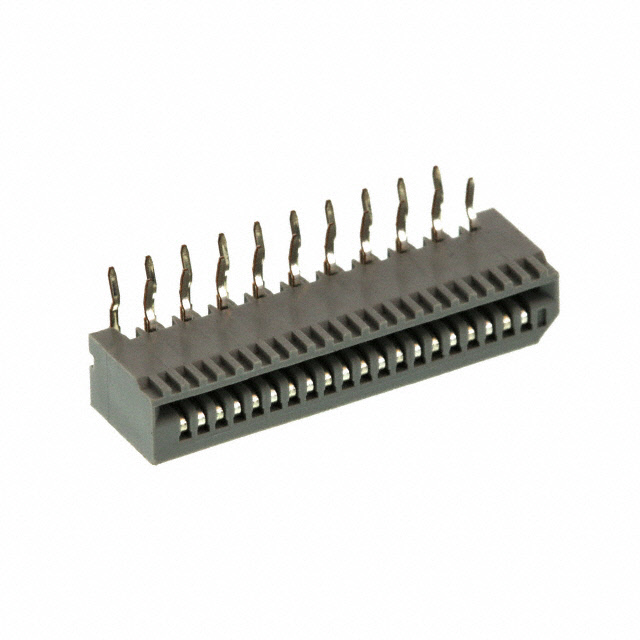

Molex 0520442045	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	20	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
Molex 0520443145	UL94 V-0	Kinked Pin	85 °C	-40 °C	FFC FPC	31	Straight	Contacts Top	Polybutylene Terephthalate (PBT) Polyester	Tin	Phosphor Bronze	Through Hole Right Angle	0.3 mm	35.4 µin	0.9 µm	5 mm	0.197 in	200 V	Gray	0.049 in	1.25 mm
