895-108 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 108POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Pitch	Pitch	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish	Contact Material	Number of Rows [custom]	Card Type	Gender	Color	Contact Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 895-108-542-808	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin
EDAC Inc. 895-108-542-807	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin
EDAC Inc. 895-108-544-203	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin	0.116 "	2.95 mm
EDAC Inc. 895-108-544-503	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Top Mount Opening	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin	0.116 "	2.95 mm
EDAC Inc. 895-108-542-208	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin

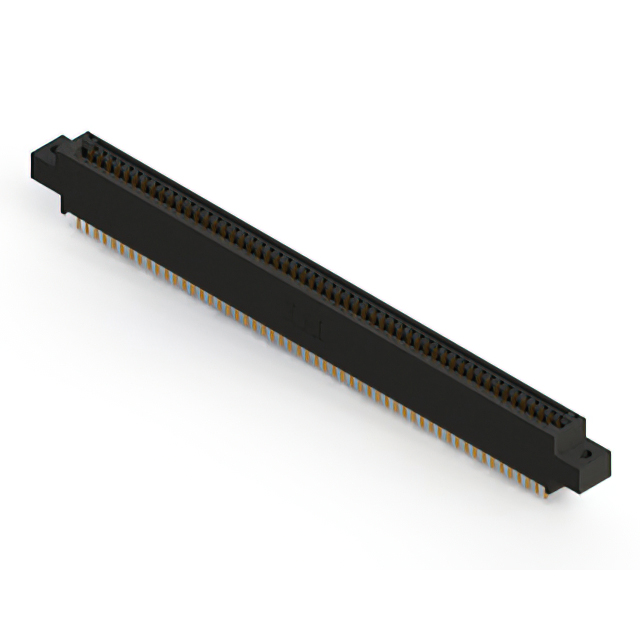

EDAC Inc. 895-108-525-802	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm		54	125 °C	-40 C	Solder	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 895-108-560-807	2	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening	54	125 °C	-40 C	Solder	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin			Card Extender
EDAC Inc. 895-108-544-207	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin
EDAC Inc. 895-108-542-203	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin	0.116 "	2.95 mm
EDAC Inc. 895-108-540-812	2	Polyphenylene Sulfide (PPS)	Through Hole	0.1 "	2.54 mm	108	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	54	125 °C	-40 C	Wire Wrap	Gold	Copper Alloy	2	Non Specified - Dual Edge	Female	Black	Cantilever	Dual	0.25 Ám	10 Áin	0.128 "	3.25 mm
