GST40A12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

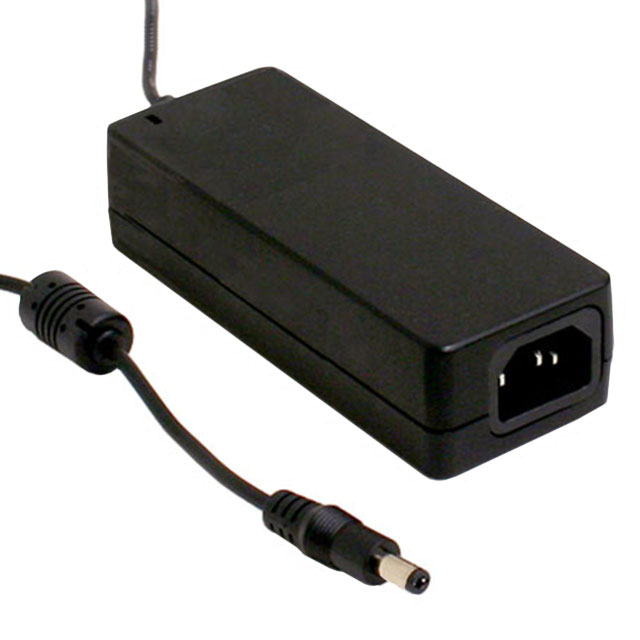

AC/DC DESKTOP ADAPTER 12V 40W
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Polarization | Output Connector [diameter] | Output Connector [x] | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Cord Length | Cord Length | Region Utilized | Current - Output (Max) [Max] | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Form | Input Connector | Input Type | Approval Agency | Voltage - Output | Output Connector [custom] | Output Connector [custom] | Output Connector [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | |||
 MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 11 mm | Barrel Plug R/A | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | 5.5 mm | 2.1 mm | ||
MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.5 mm 5.5 mm | Barrel Plug R/A | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | 9.5 mm | |||
MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | |||
 MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | |||
MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.5 mm 5.5 mm | Barrel Plug R/A | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | 9.5 mm | |||
 MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.1 mm 5.5 mm | 11 mm | Barrel Plug | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | |||
 MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.5 mm 5.5 mm | 11 mm | Barrel Plug | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | |||
MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | Positive Center | 2.1 mm 5.5 mm | 11 mm | Barrel Plug | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V | |||
MEAN WELL USA Inc. | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | International | 3.34 A | 75 mW | -30 ░C | 70 °C | 40 W | Desktop (Class I) | IEC 320-C14 | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 12 V |
