CH-09-525 Series

Catalog

BUZZER PIEZO 35.8MM PNL MNT

Part	Operating Mode	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Termination	Termination	Technology	Port Location	Driver Circuitry	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Supply [Min] [x]	Current - Supply [Max] [x]	Approval Agency	Mounting Type	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]	Frequency	Input Type	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Current - Supply [Min]	Current - Supply [Max]

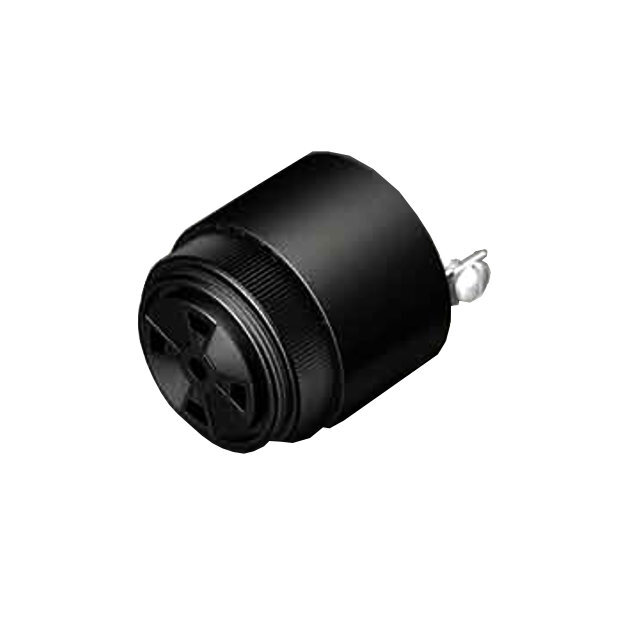

Floyd Bell Inc CH-09-525-S(F)	Chime	1.38 in	35.05 mm	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Piezo	Top	Indicator Internally Driven	35.8 mm	1.409 in	5 mA	25 mA	UL UR	Panel Mount	IP68 - Dust Tight Waterproof	5 VDC	25 VDC	2.9 kHz	DC	93 dB
Floyd Bell Inc CH-09-525-S(S)	Chime Single Shot	1.38 in	35.05 mm	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Piezo	Top	Indicator Internally Driven		35.81 mm			UL UR	Panel Mount	IP68 - Dust Tight Waterproof	5 VDC	25 VDC	2.1 kHz	DC	93 dB	1.41 in	10 mA	45 mA

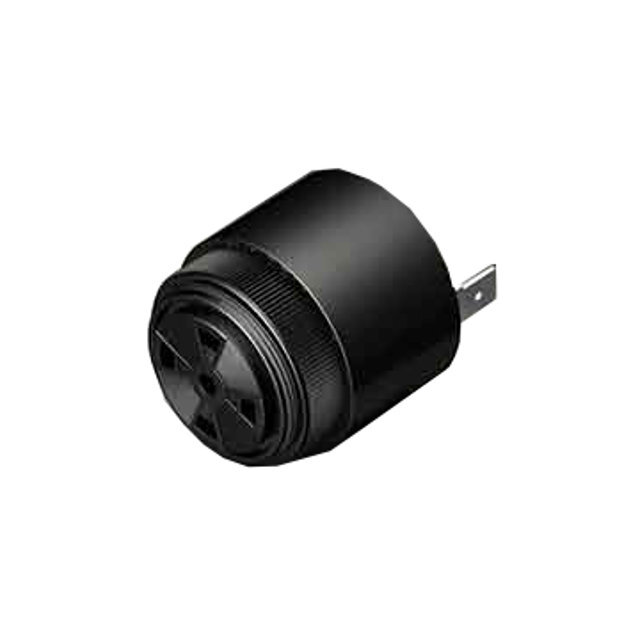

Floyd Bell Inc CH-09-525-Q(F)	Chime	1.38 in	35.05 mm	0.25 "	Quick Connect Tab	6.35 mm	Piezo	Top	Indicator Internally Driven		35.81 mm	5 mA	25 mA	UL UR	Panel Mount	IP68 - Dust Tight Waterproof	5 VDC	25 VDC	2.9 kHz	DC	93 dB	1.41 in
Floyd Bell Inc CH-09-525-Q(S)	Chime Single Shot	1.38 in	35.05 mm	0.25 "	Quick Connect Tab	6.35 mm	Piezo	Top		35.8 mm	1.409 in				Panel Mount		5 VDC	25 VDC	2.1 kHz	DC	93 dB		10 mA	45 mA
Floyd Bell Inc CH-09-525-S(M)	Chime	1.38 in	35.05 mm	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Piezo	Top	Indicator Internally Driven		35.81 mm	5 mA	25 mA	UL UR	Panel Mount	IP68 - Dust Tight Waterproof	5 VDC	25 VDC	2.9 kHz	DC	93 dB	1.41 in

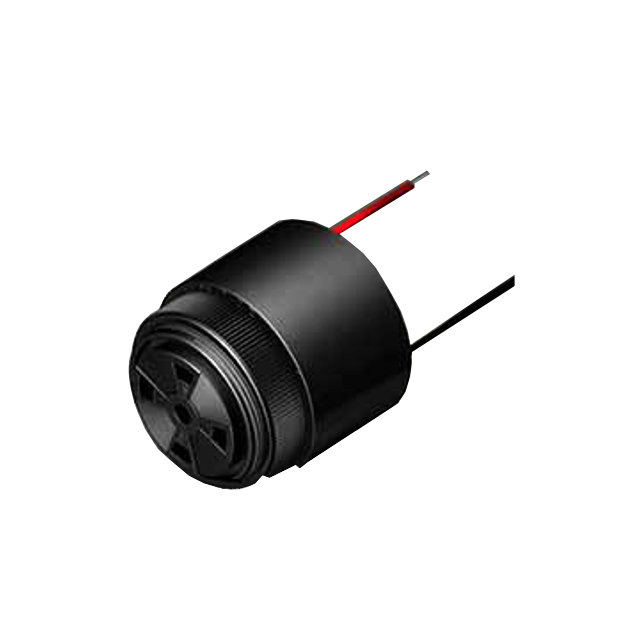

Floyd Bell Inc CH-09-525-W(S)	Chime Single Shot	1.38 in	35.05 mm		Wire Leads		Piezo	Top	Indicator Internally Driven		35.81 mm			UL UR	Panel Mount	IP68 - Dust Tight Waterproof	5 VDC	25 VDC	2.1 kHz	DC	93 dB	1.41 in	10 mA	45 mA
Floyd Bell Inc CH-09-525-Q(M)	Chime	1.38 in	35.05 mm	0.25 "	Quick Connect Tab	6.35 mm	Piezo	Top	Indicator Internally Driven		35.81 mm	5 mA	25 mA	UL UR	Panel Mount	IP68 - Dust Tight Waterproof	5 VDC	25 VDC	2.9 kHz	DC	93 dB	1.41 in
Floyd Bell Inc CH-09-525-W(F)	Chime	1.38 in	35.05 mm		Wire Leads		Piezo	Top	Indicator Internally Driven	35.8 mm	1.409 in	5 mA	25 mA	UL UR	Panel Mount	IP68 - Dust Tight Waterproof	5 VDC	25 VDC	2.9 kHz	DC	93 dB
