BB16AB Series

Catalog

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Part	Mechanical Life	Electrical Life	Actuator Marking	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Current Rating (Amps)	Mounting Type	Type	Termination Style	Voltage Rating - AC	Circuit	Voltage Rating - DC	Features	Actuator Type
NKK Switches BB16AB-FB	25000 Steps	25000 Steps	No Marking	White	85 °C	-30 ░C	On-On	0.4 VA	Through Hole	Standard	PC Pin	28 V	SPDT	28 V	Antistatic	Button Round
NKK Switches BB16AB1	25000 Steps	25000 Steps	No Marking	White	85 °C	-30 ░C	On-On	0.4 VA	Through Hole	Standard	PC Pin	28 V	SPDT	28 V	Antistatic	Plunger for Cap
NKK Switches BB16AB-HC	25000 Steps	25000 Steps	No Marking	Red	85 °C	-30 ░C	On-On	0.4 VA	Through Hole	Standard	PC Pin	28 V	SPDT	28 V	Antistatic	Button Round

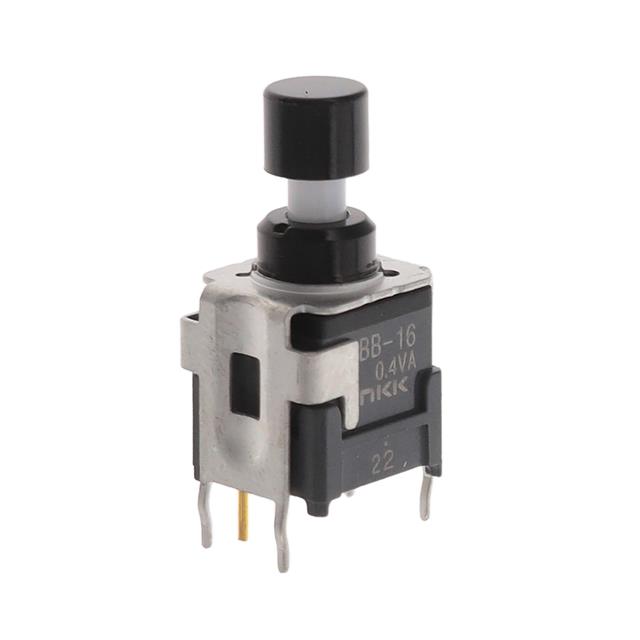

NKK Switches BB16AB-FA	25000 Steps	25000 Steps	No Marking	Black	85 °C	-30 ░C	On-On	0.4 VA	Through Hole	Standard	PC Pin	28 V	SPDT	28 V	Antistatic	Button Round

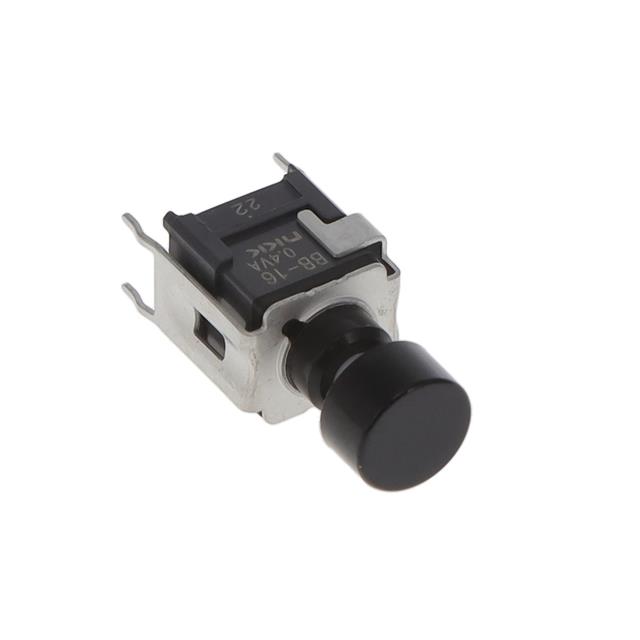

NKK Switches BB16AB-HA	25000 Steps	25000 Steps	No Marking	Black	85 °C	-30 ░C	On-On	0.4 VA	Through Hole	Standard	PC Pin	28 V	SPDT	28 V	Antistatic	Button Round
