L1SP Series

Manufacturer: Lumileds

Catalog

LED CHIP WHITE 480MA 2-PIN SMD T/R

Part	Thermal Resistance of Package	Package / Case	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Current - Test	Mounting Type	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Temperature - Test	Height - Seated (Max) [Max]	Wavelength	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Lumileds L1SP-PNK1002800000	13 °C/W	3528 Metric	1411	White	2.85 V	0.03 "	0.75 mm	480 mA	120 mA	Surface Mount	2835	3.5 mm	0.11 "	2.8 mm	0.138 in	120 °
Lumileds L1SP-DRD0203E00000			1414 (3535 Metric)	Red	2.07 V	0.094 in		1.4 A		Surface Mount	1414	3.45 mm	0.136 in	3.45 mm	0.136 "	126 °	25 °C	2.39 mm
Lumileds L1SP-FRD0002F00000			2-SMD No Lead	Red	1.9 V	0.073 in	1.85 mm	1.05 A	350 mA	Surface Mount		2 mm	0.079 in	2 mm	0.079 in	122 °	85 °C

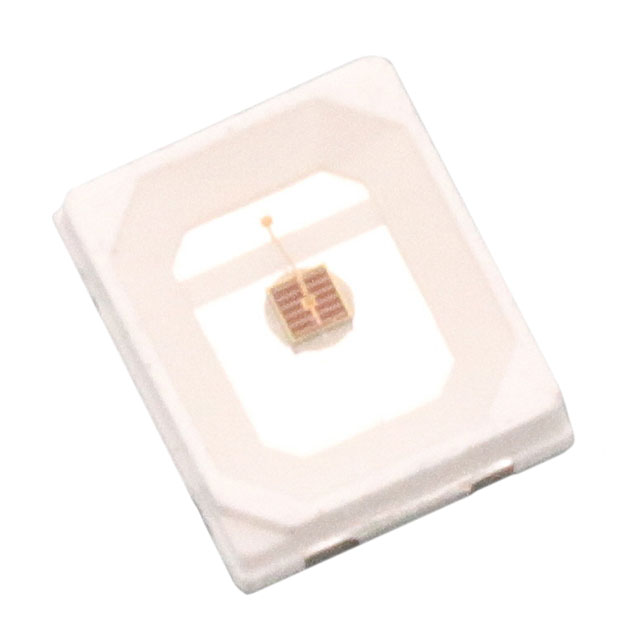

Lumileds L1SP-FRD0002800000	15 °C/W	3528 Metric	1411	Red	2.15 V	0.03 "	0.75 mm	250 mA	120 mA	Surface Mount	2835	3.5 mm	0.11 "	2.8 mm	0.138 in	130 °	25 °C		730 nm	720 nm	740 nm

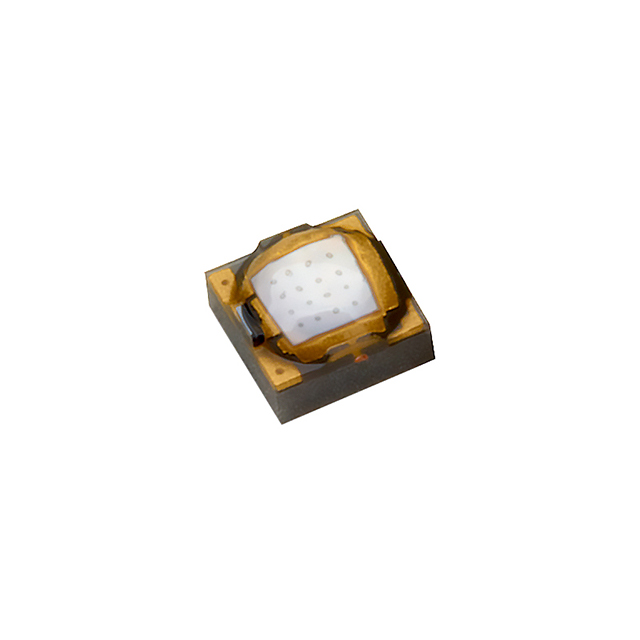

Lumileds L1SP-RYL0002000000			0707 (1919 Metric)	Blue	2.75 V			1.05 A	350 mA	Surface Mount	SMD	2 mm	0.079 in	2 mm	0.079 in	165 °	85 °C		450 nm			0.059 "	1.5 mm
Lumileds L1SP-FRD00035R0000			2-SMD Flat Leads	Red	1.75 V			180 mA	100 mA	Surface Mount	2-SMD	3.5 mm	0.134 in	3.4 mm	0.138 in	115 °	25 °C					0.031 in	0.8 mm
Lumileds L1SP-DRD0002F00000			2-SMD No Lead	Red	2.05 V	0.073 in	1.85 mm	1.05 A	350 mA	Surface Mount		2 mm	0.079 in	2 mm	0.079 in	122 °	85 °C
Lumileds L1SP-FRD0002000000			3-SMD No Lead	Red	1.9 V			1.05 A	350 mA	Surface Mount		2 mm	0.079 in	2 mm	0.079 in	162 °	85 °C					0.059 "	1.5 mm
