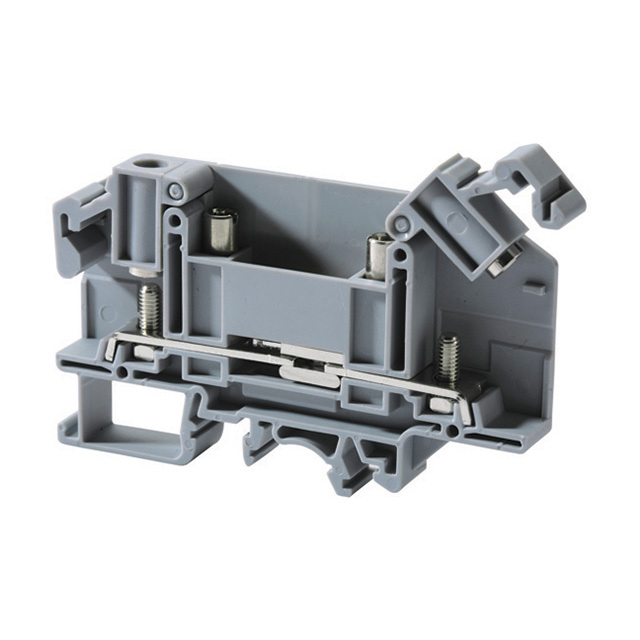

STH4 Series
Manufacturer: Altech Corporation
Beta
⌘K
CONN TERM BLK FEED THRU 8-22AWG
| Part | Material - Insulation | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Voltage - UL | Voltage - IEC | Current - IEC | Number of Positions | Wire Gauge or Range - AWG (Min) | Wire Gauge or Range - AWG (Max) | Current - UL | Terminal Width | Termination Style | Type | Number of Levels | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | Nylon 6/6 PA66 Polyamide | 6 mm² | 1.5 mm² | 600 V | 1000 V | 41 A | 2 | 8 AWG | 22 AWG | 35 A | 11 mm | Screw | Disconnect | 1 | Gray |
