V15S0 Series

Catalog

MICROSWITCH, MINIATURE, PIN PLUNGER, SPDT, QUICK CONNECT, 5 A

Part	Overtravel [custom]	Overtravel [custom]	Operating Force	Operating Position	Operating Position	Voltage Rating - DC	Mounting Type	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Mechanical Life	Pretravel	Pretravel	Actuator Type	Termination Style	Current Rating (Amps)	Release Force	Voltage Rating - AC	Electrical Life

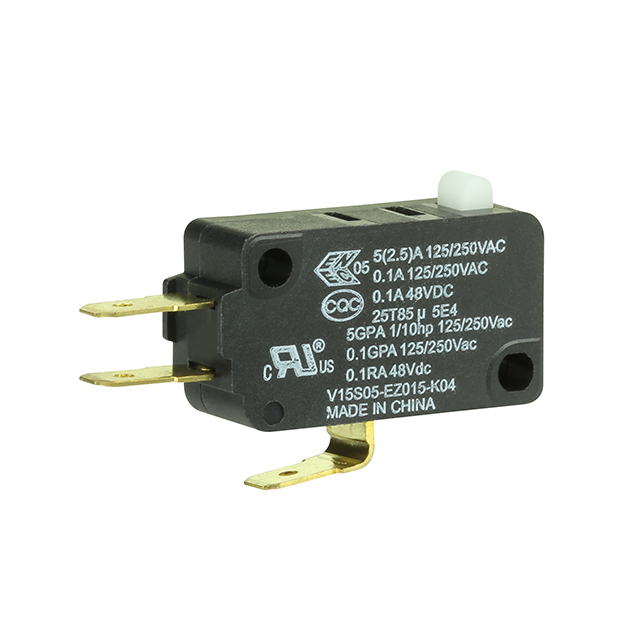

Honeywell Sensing and Productivity Solutions V15S05-EZ015-K04	0.03 "	0.76 mm	16 gf	14.7 mm	0.579 in	48 V	Chassis Mount	On-Mom	SPDT	85 °C	-25 °C	0.013 in	0.33 mm	1000000 Cycles	0.06 in	1.5 mm	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	5 A 100 mA	3 gf	125 V
Honeywell Sensing and Productivity Solutions V15S05-1EZ050-K01	0.03 "	0.76 mm	50 gf	14.7 mm	0.579 in	48 V	Chassis Mount	On-Mom	SPDT	85 °C	-25 °C	0.02 in	0.5 mm	1000000 Cycles	0.06 in	1.5 mm	Round (Pin Plunger)	Quick Connect	5 A 100 mA		125 V
Honeywell Sensing and Productivity Solutions V15S05-CZ050A06	0.05 "	1.27 mm	35 gf	20.57 mm	0.81 "	48 V	Chassis Mount	On-Mom	SPDT	85 °C	-25 °C	0.05 in	0.05 in	1000000 Cycles	0.06 in	1.5 mm	Lever Roller	Quick Connect - 0.250" (6.3mm)	5 A 100 mA		125 V	10000 Cycles

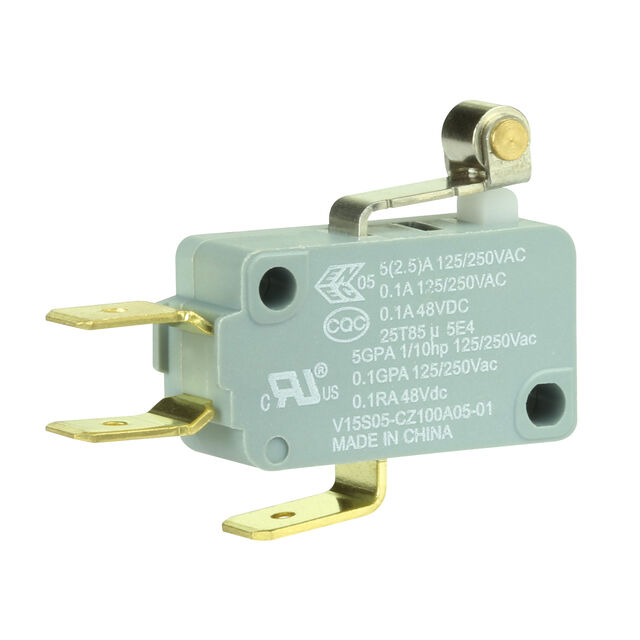

Honeywell Sensing and Productivity Solutions V15S05-CZ100A05-01						48 V	Chassis Mount	On-Mom	SPDT	85 °C	-25 °C			1000000 Cycles			Lever Roller	Quick Connect - 0.250" (6.3mm)	5 A 100 mA		125 V
