VERSAFLEX Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SLEEVING 1.772" X 3.28' BLK/WHT

Part	Color	Length	Material	Type	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Material Flammability Rating	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Heat Protection	Features	Length	Length	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Spool Size [custom]	Spool Size [custom]
TE Connectivity AMP Connectors VERSAFLEX-FR-1-3/4-09-SP	Black White	Enter Number of Feet in Order Quantity	Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant	UL VW-1	2.756 "	70 mm	Flame Retardant	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	1 m	3.28 ft	Expandable	45 mm	1.772 in

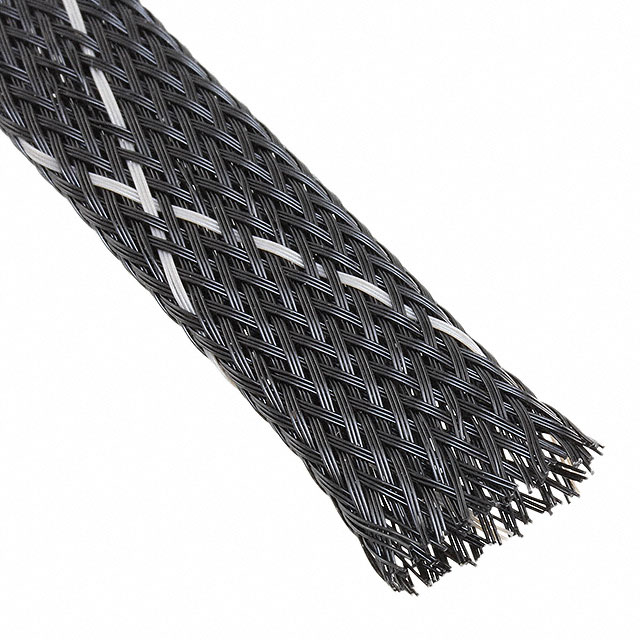

TE Connectivity AMP Connectors VERSAFLEX-FR-3/4-09-SP	Black White	Enter Number of Meters in Order Quantity	Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant	UL VW-1	1.26 in	32 mm	Flame Retardant	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	1 m 5 m 10 m 25 m 75 m	3.28 ft 16.41 ' 32.81 ft 82.02 ' 246 '	Expandable	19 mm	0.748 in	75 m	246 ft

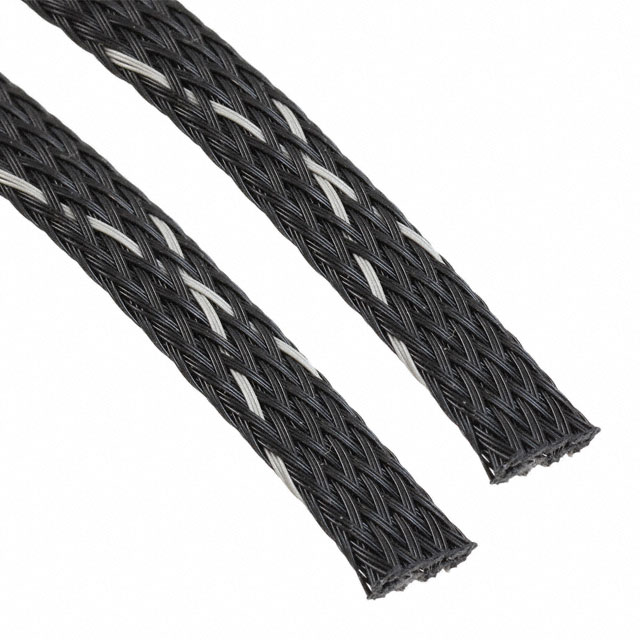

TE Connectivity AMP Connectors VERSAFLEX-FR-3/8-09-SP	Black White		Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant	UL VW-1			Flame Retardant	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	1 m 150 m	3.28 ft 492 ft	Expandable	10 mm	0.394 "

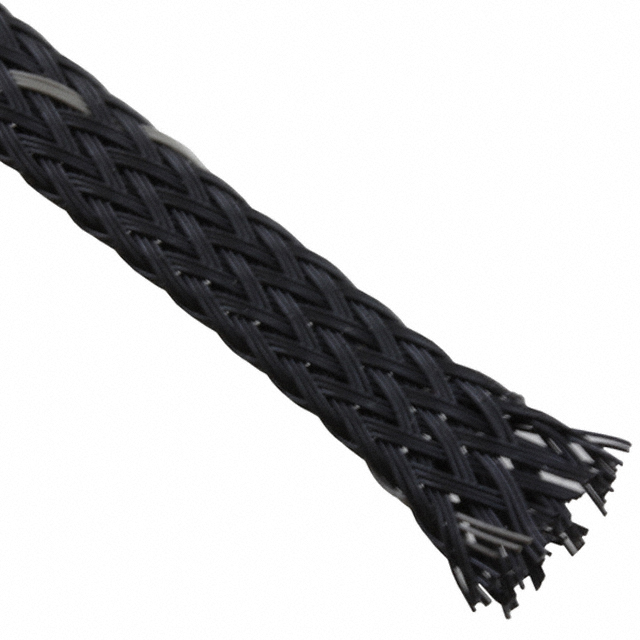

TE Connectivity AMP Connectors VERSAFLEX-FR-1/4-09-SP	Black White		Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant	UL VW-1	0.375 in	9.52 mm	Flame Retardant	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	1 m 300 m	3.28 ft 984 ft	Expandable	6 mm	0.236 in
TE Connectivity AMP Connectors VERSAFLEX-FR-1/2-09-SP	Black White	Enter Number of Meters in Order Quantity	Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant	UL VW-1	0.748 in	19 mm	Flame Retardant	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	1 m 150 m	3.28 ft 492 ft	Expandable	13 mm	0.512 "
TE Connectivity AMP Connectors VERSAFLEX-10-8-SP	Gray		Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant		0.591 in	15 mm		Chemical Resistant Fungus Resistant Solvent Resistant			Expandable	10 mm	0.394 "
TE Connectivity AMP Connectors VERSAFLEX-FR-1/8-09-SP	Black White	Enter Number of Meters in Order Quantity	Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant	UL VW-1	0.252 in	6.4 mm	Flame Retardant	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	1 m 300 m	3.28 ft 984 ft	Expandable

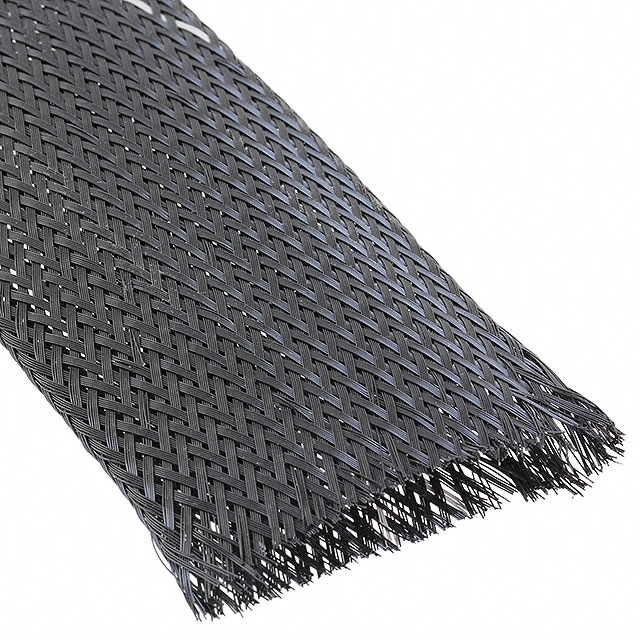

TE Connectivity AMP Connectors VERSAFLEX-FR-2-09-SP	Black White		Polyester (PES)	Sleeve	150 °C	-50 °C	Abrasion and Cut Resistant	UL VW-1	2.992 in	76 mm	Flame Retardant	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	1 m 180 m	3.28 ft 591 ft	Expandable	51 mm	2.008 in
