19.548 Series
Manufacturer: Jacob GmbH
Beta
⌘K

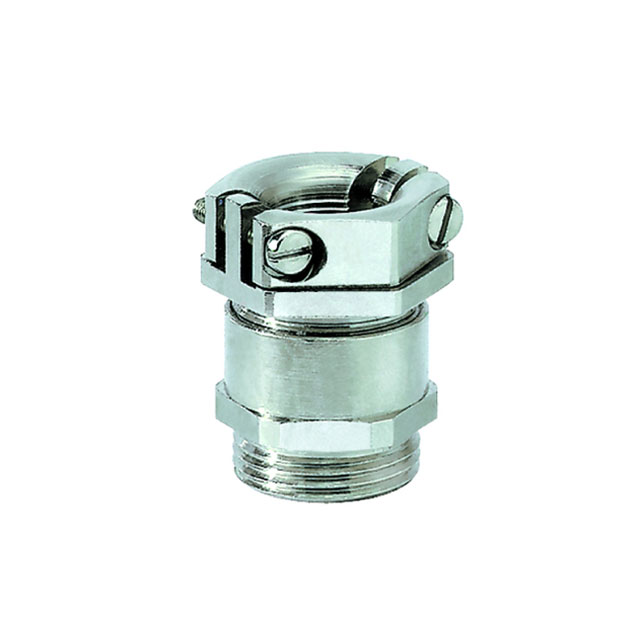

CABLE GLAND 35-44.5MM M63 BRASS
| Part | Thread Length | Thread Length | Ingress Protection | Outside Cable Diameter (Max) [diameter] | Outside Cable Diameter (Max) [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Material | Type | Color | Thread Size | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Jacob GmbH | 0.394 in | 10 mm | IP55 - Dust Protected Water Resistant | 1.752 in | 44.5 mm | -30 ░C | 100 °C | Brass Nickel Plated | Cable Gland | Silver | M63x1.5 | 1.378 " | 35 mm |
