726-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Termination	Contact Type	Number of Rows [custom]	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Card Type	Mounting Type	Color	Read Out	Gender	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch
EDAC Inc. 726-080-540-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Cantilever	2	Copper Alloy	80	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Black	Dual	Female	Gold	40	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 726-080-541-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Cantilever	2	Copper Alloy	80	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Black	Dual	Female	Gold	40	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 726-080-553-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Cantilever	2	Copper Alloy	80	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Black	Dual	Female	Gold	40	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 726-080-527-201	Polyester Thermoplastic	2	Press-Fit	Cantilever	2	Copper Alloy	80	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Black	Dual	Female	Gold	40	30 Áin	0.76 Ám	3.18 mm	0.125 in

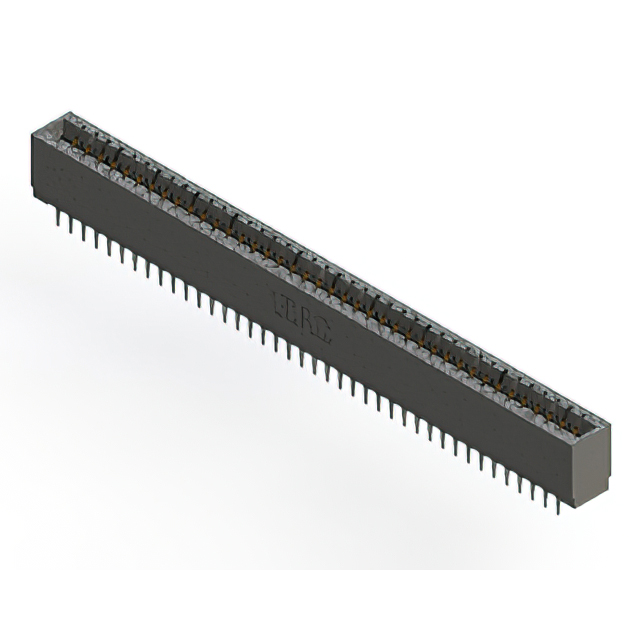

EDAC Inc. 726-080-520-201	Polyester Thermoplastic	2	Press-Fit	Cantilever	2	Copper Alloy	80	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Black	Dual	Female	Gold	40	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 726-080-545-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Cantilever	2	Copper Alloy	80	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Black	Dual	Female	Gold	40	30 Áin	0.76 Ám	3.18 mm	0.125 in

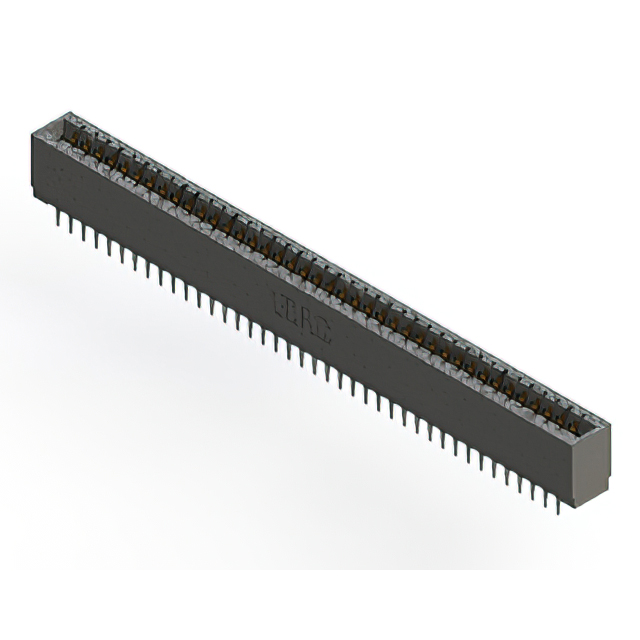

EDAC Inc. 726-080-525-201	Polyester Thermoplastic	2	Press-Fit	Cantilever	2	Copper Alloy	80	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Black	Dual	Female	Gold	40	30 Áin	0.76 Ám	3.18 mm	0.125 in
