MS135 Series

Catalog

RF SHIELD 0.555X0.555" SNAP FIT

Part	Ventilation	Type	Mounting Type	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Width - Overall [y]	Width - Overall [y]	Height - Overall	Height - Overall

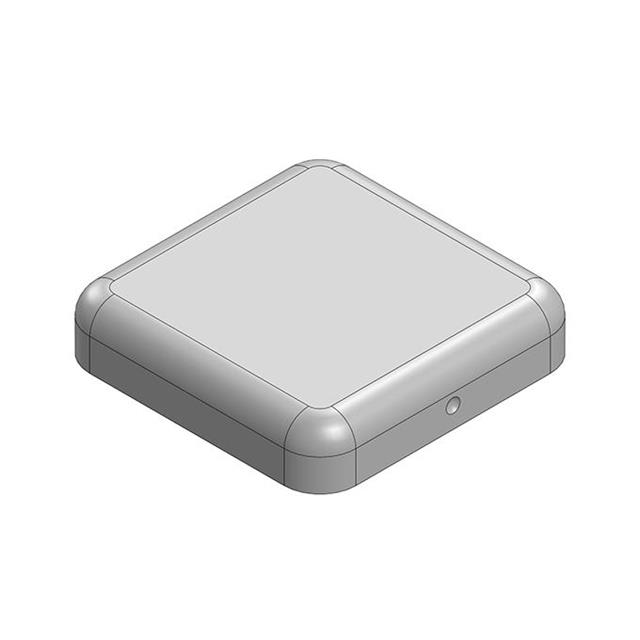

Masach Tech Ltd. MS135-20C-NS	Non-Vented	Cover	Snap Fit	0.118 in	3 mm	0.555 in	14.1 mm	14.1 mm	0.555 in

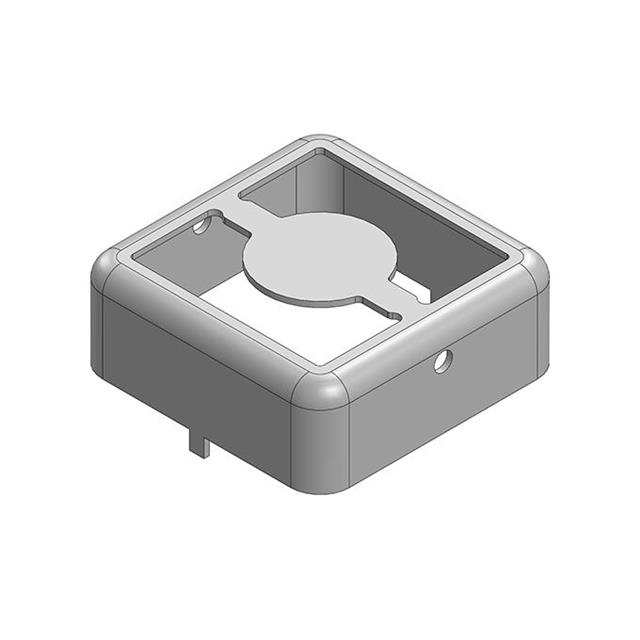

Masach Tech Ltd. MS135-20F-NS	Non-Vented	Frame	Solder			0.531 in	13.5 mm	13.5 mm	0.531 in	0.197 in	5 mm

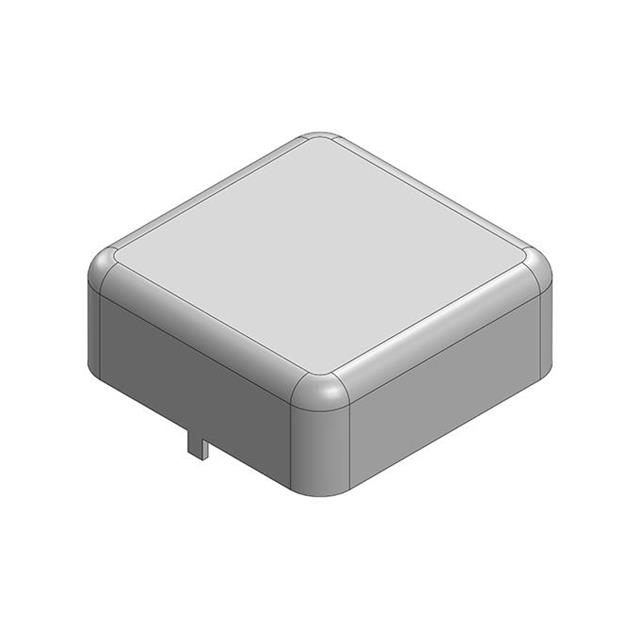

Masach Tech Ltd. MS135-20S-NS	Non-Vented	Shield 1-Piece	Solder			0.531 in	13.5 mm	13.5 mm	0.531 in	0.197 in	5 mm

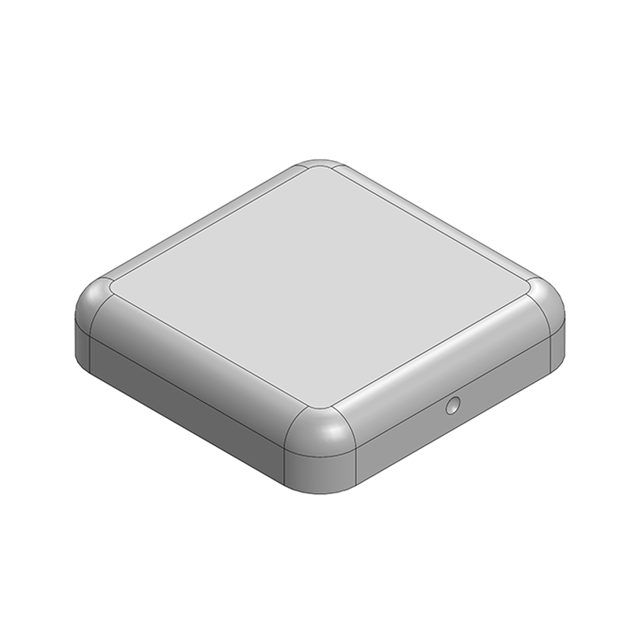

Masach Tech Ltd. MS135-20C	Non-Vented	Cover	Snap Fit	0.118 in	3 mm	0.555 in	14.1 mm	14.1 mm	0.555 in
