R12141 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

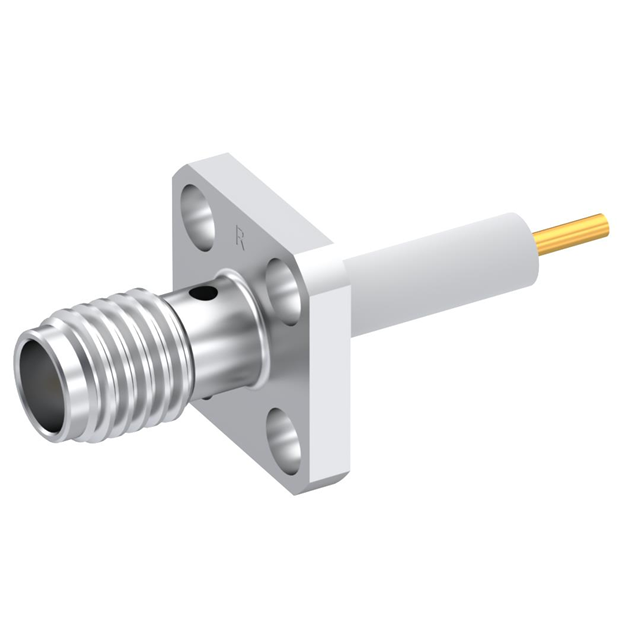

SSMA / SQUARE FLANGE RECEPTACLE
| Part | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Mating Cycles | Connector Style | Housing Color | Mounting Type | Connector Type | Center Contact Material | Shield Termination | Features | Number of Ports | Impedance | Fastening Type | Mounting Feature | Frequency - Max [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | 115 °C | -65 ░C | Polytetrafluoroethylene (PTFE) | 250 V | 500 | SSMA | Silver | Panel Mount Through Hole | Female Socket Jack | Beryllium Copper | Solder | Extended Insulation | 1 | 50 Ohms | Threaded | Flange | 18 GHz | Solder |
