KISSLING Series TS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PUSH BUTTON SWITCHES, THREE POLE

Part	Mechanical Life	Voltage Rating - DC	Color - Actuator/Cap	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Actuator Marking	Type	Ingress Protection	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type

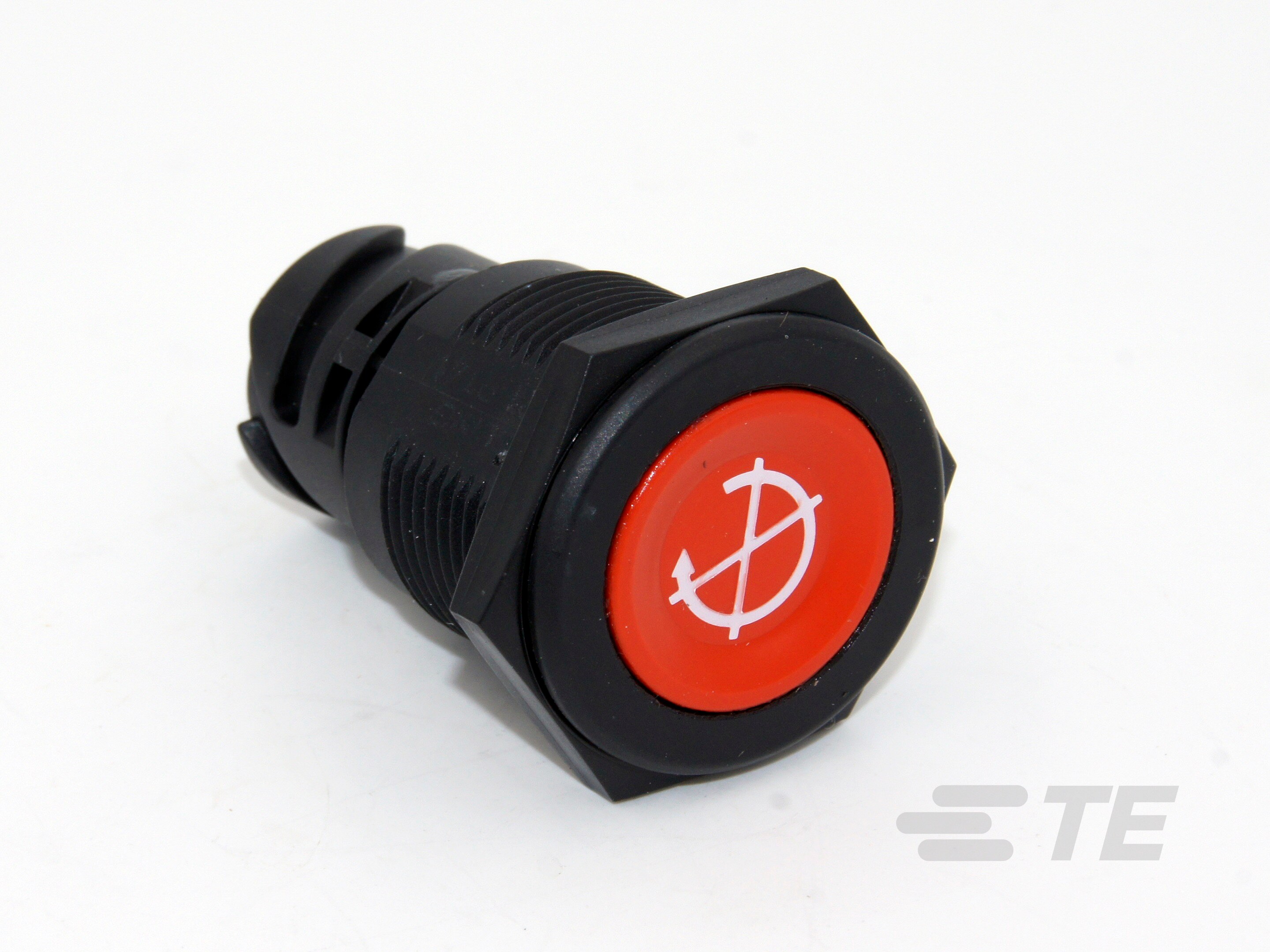

TE Connectivity AMP Connectors TS-221-RT41	100000 Cycles	32 V	Red	Panel Mount Front	Connector	90 °C	-40 C	5 A	3PDT	No Marking	Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round

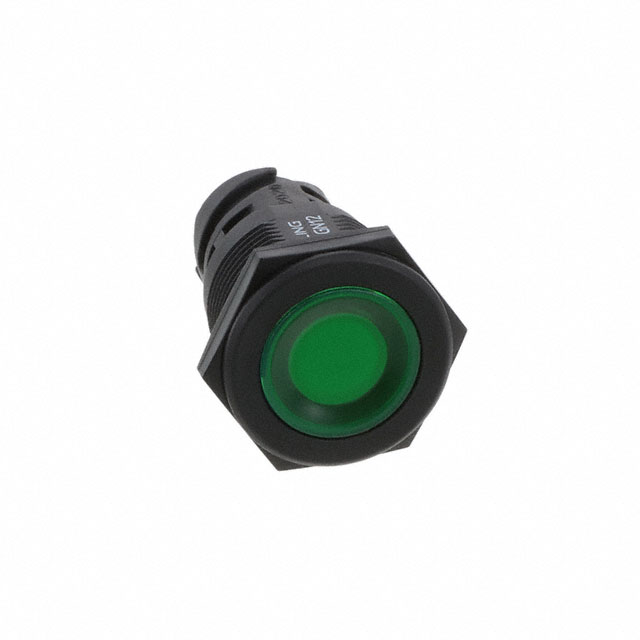

TE Connectivity AMP Connectors TS-211-GN12	100000 Cycles	32 V	Green	Panel Mount Front	Connector	90 °C	-40 C	5 A	SPDT	No Marking	Illuminated Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round

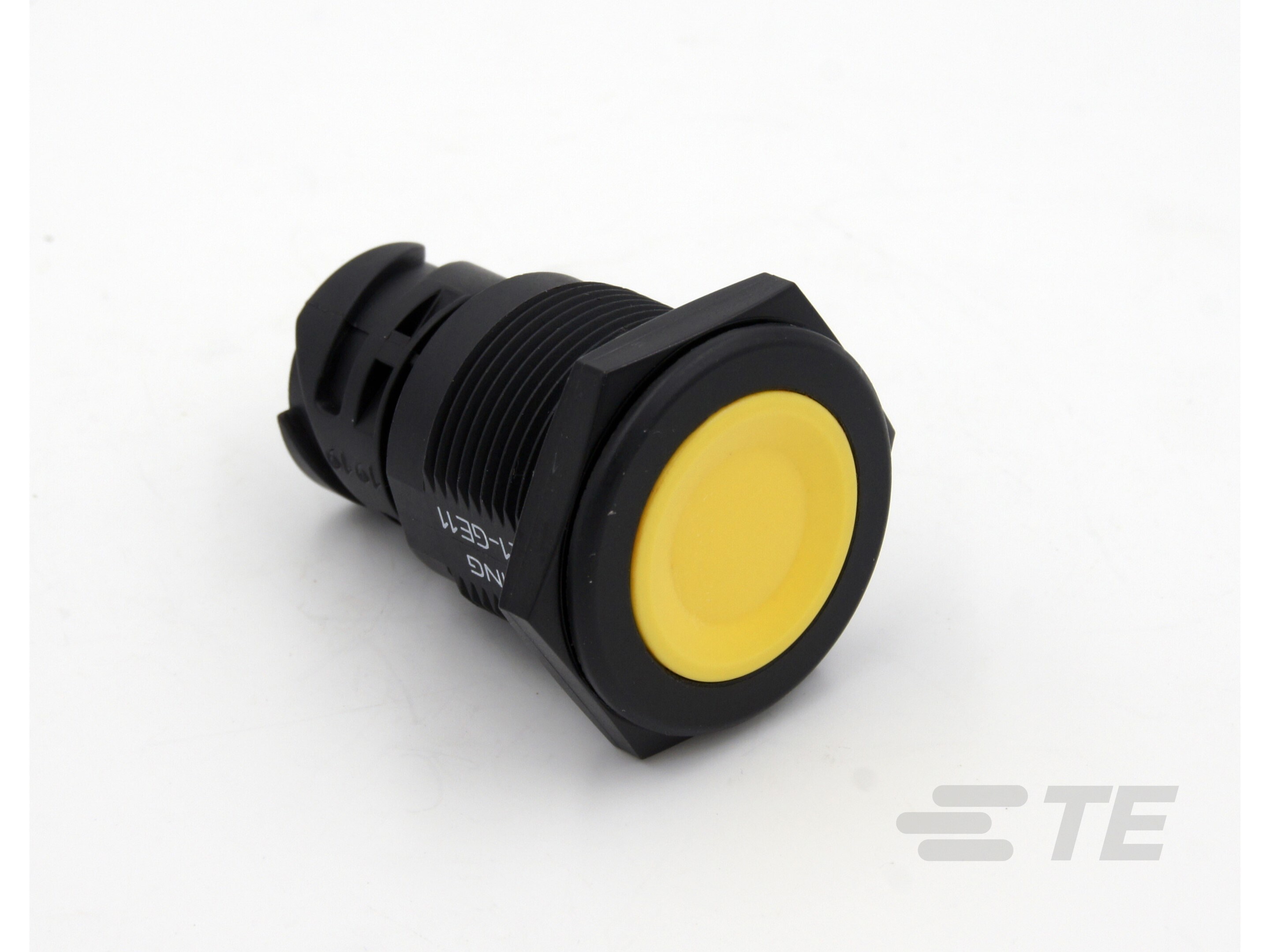

TE Connectivity AMP Connectors TS-221-GE11	100000 Cycles	32 V	Yellow	Panel Mount Front	Connector	90 °C	-40 C	5 A	3PDT	No Marking	Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round
TE Connectivity AMP Connectors TS-211-SW11	100000 Cycles	32 V	Black	Panel Mount Front	Connector	90 °C	-40 C	5 A	SPDT	No Marking	Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round

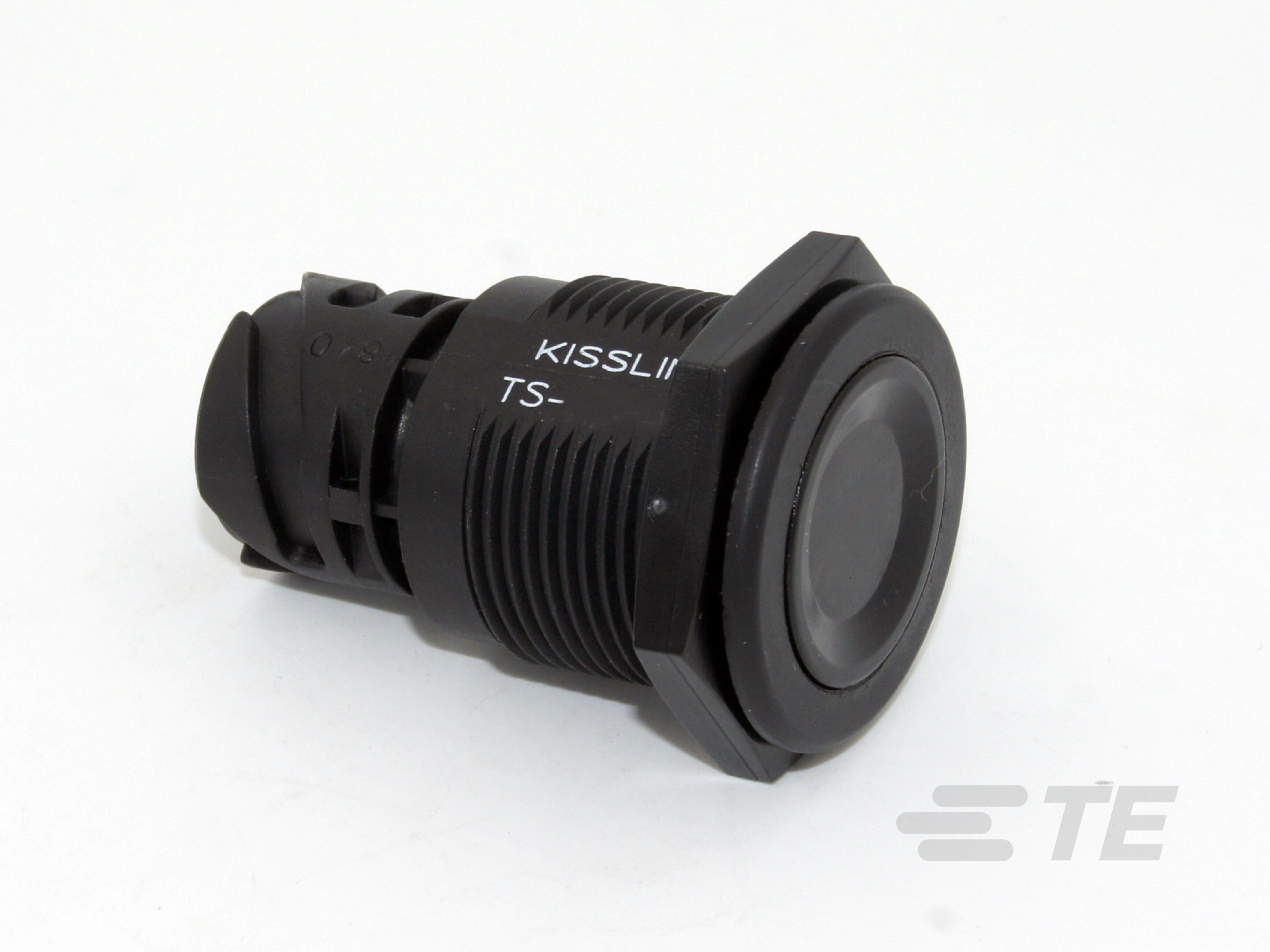

TE Connectivity AMP Connectors TS-221-SW11	100000 Cycles	32 V	Black	Panel Mount Front	Connector	90 °C	-40 C	5 A	3PDT	No Marking	Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round

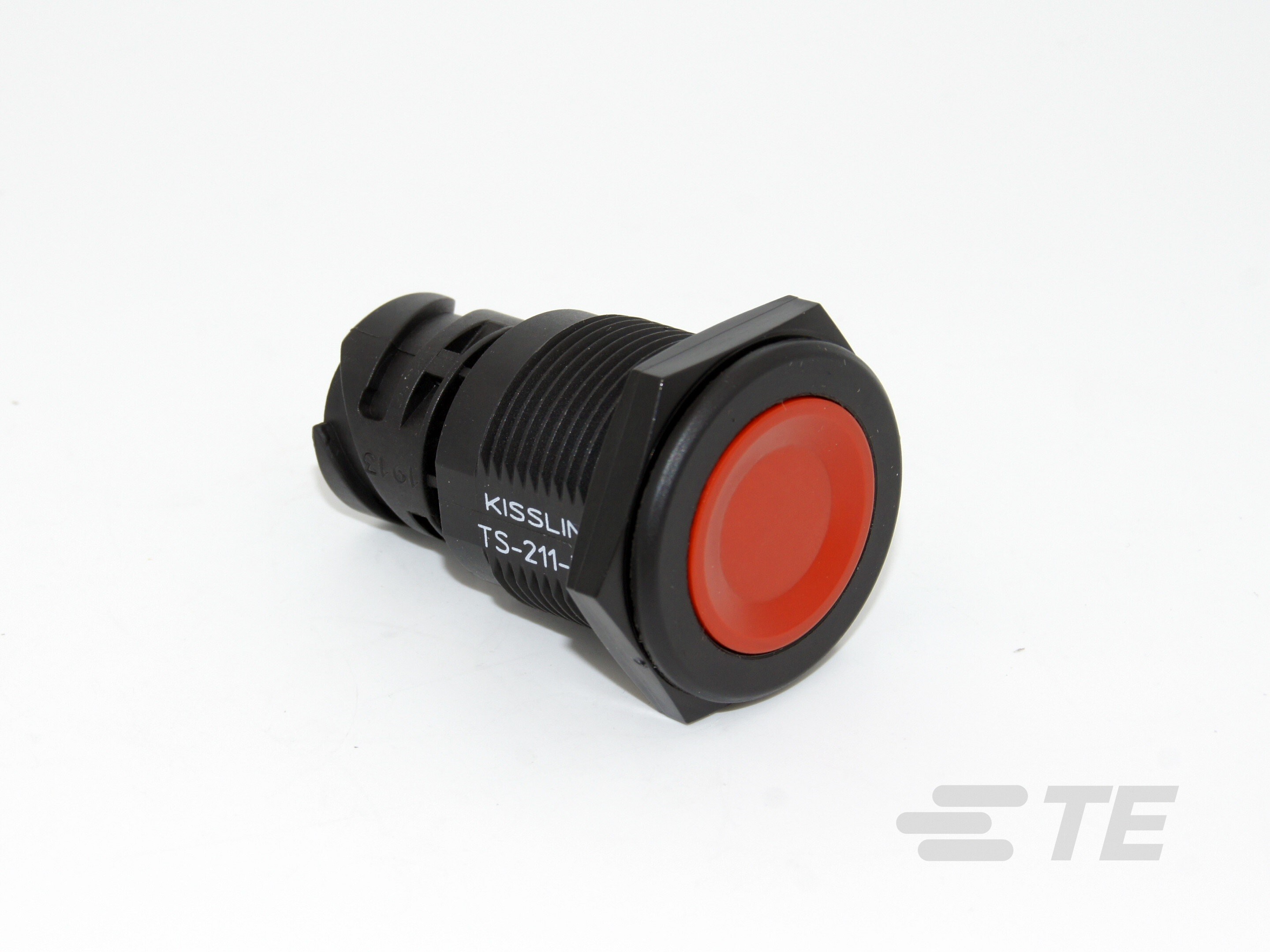

TE Connectivity AMP Connectors TS-211-RT11	100000 Cycles	32 V	Red	Panel Mount Front	Connector	90 °C	-40 C	5 A	SPDT	No Marking	Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round

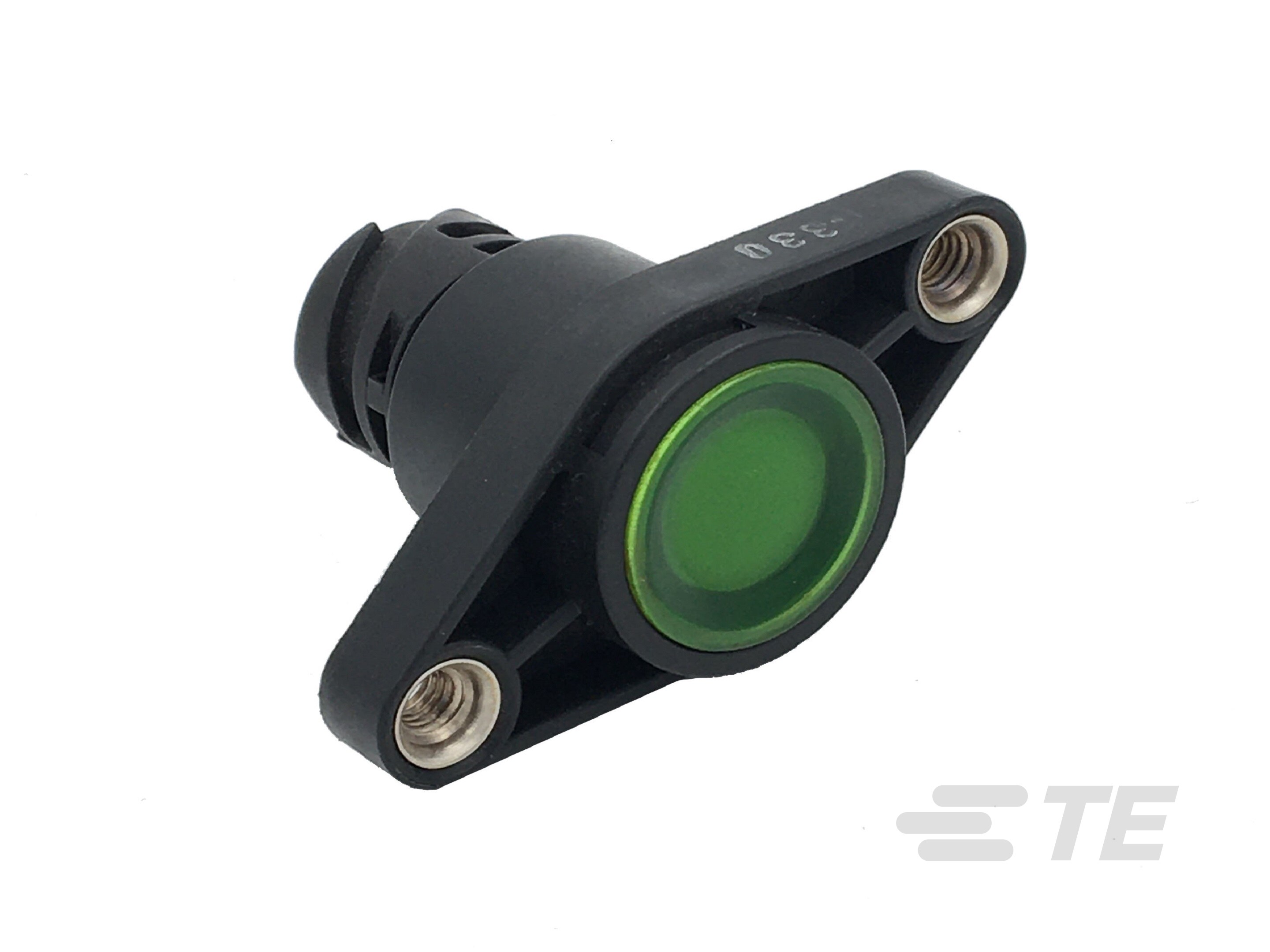

TE Connectivity AMP Connectors TS-111-GN32	100000 Cycles	32 V	Green	Chassis Mount	Connector	90 °C	-40 C	5 A	SPDT	No Marking	Illuminated Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round
TE Connectivity AMP Connectors TS-211-GN11		32 V	Green	Panel Mount Front	Connector	90 °C	-40 C	5 A	SPDT	No Marking	Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round
TE Connectivity AMP Connectors TS-211-BL12	100000 Cycles	32 V	Blue	Panel Mount Front	Connector	90 °C	-40 C	5 A	SPDT		Illuminated Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round

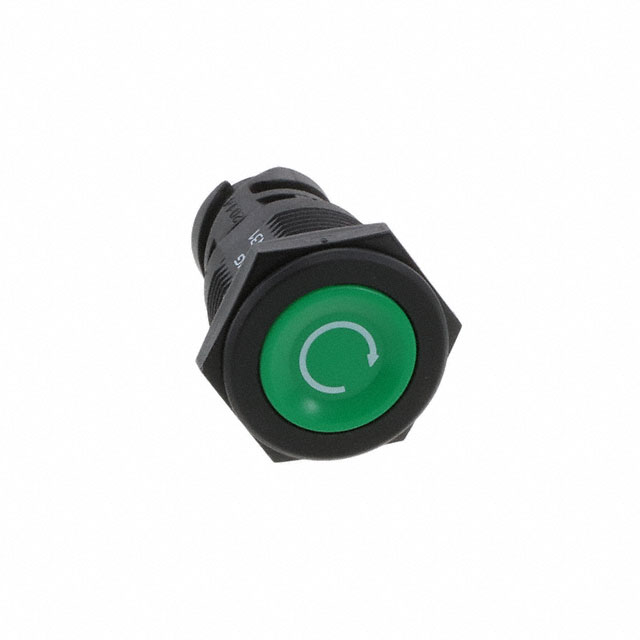

TE Connectivity AMP Connectors TS-211-GN31	100000 Cycles	32 V	Green	Panel Mount Front	Connector	90 °C	-40 C	5 A	SPDT	No Marking	Standard	IP69K - Dust Tight High Temp Water Jets Waterproof	On-Mom	30.5 mm	Button Round
