09200320 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 32A

Part	Size	Housing Finish	Style	Housing Color	Housing Material	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features
HARTING 09200320530	32 A	Powder Coated	Side Entry	Gray	Aluminum Die Cast	PG21	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Hood	56 mm	82 mm	2.205 in	79 mm	3.228 "	3.11 in
HARTING 09200320260	32 A	Powder Coated	Side Entry	Gray	Aluminum Die Cast	PG21	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Hood			57 mm		106 mm	81.8 mm	2.244 "	4.173 "	3.22 "

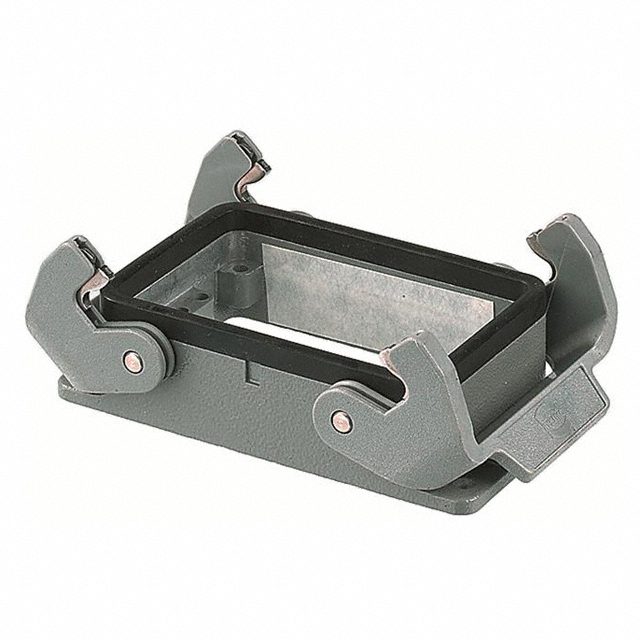

HARTING 09200320301	32 A	Powder Coated	Bottom Entry	Gray	Aluminum Die Cast		125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (2) on Base Bottom			56 mm		102 mm	28.6 mm	2.205 in	4.016 in	1.126 in
HARTING 09200320261	32 A	Powder Coated	Side Entry	Gray	Aluminum Die Cast	PG29	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Hood			57 mm		106 mm	81.8 mm	2.244 "	4.173 "	3.22 "

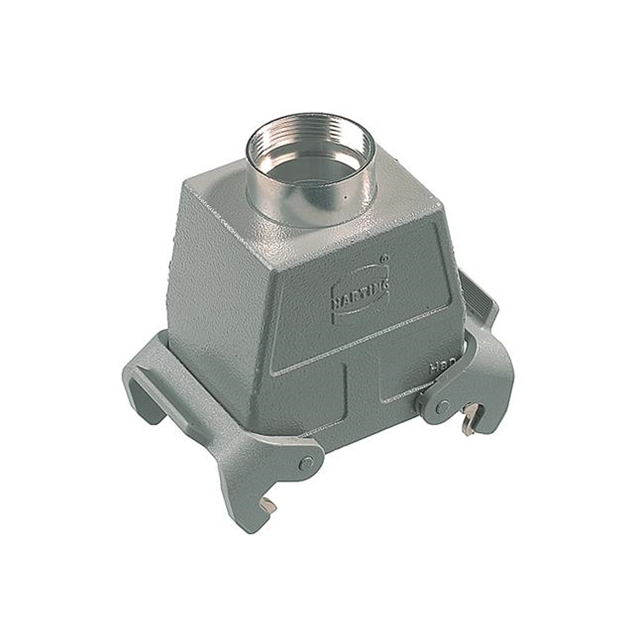

HARTING 09200320430	32 A	Powder Coated	Top Entry	Gray	Aluminum Die Cast	PG21	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Hood	56 mm	82 mm	2.205 in	79 mm	3.228 "	3.11 in

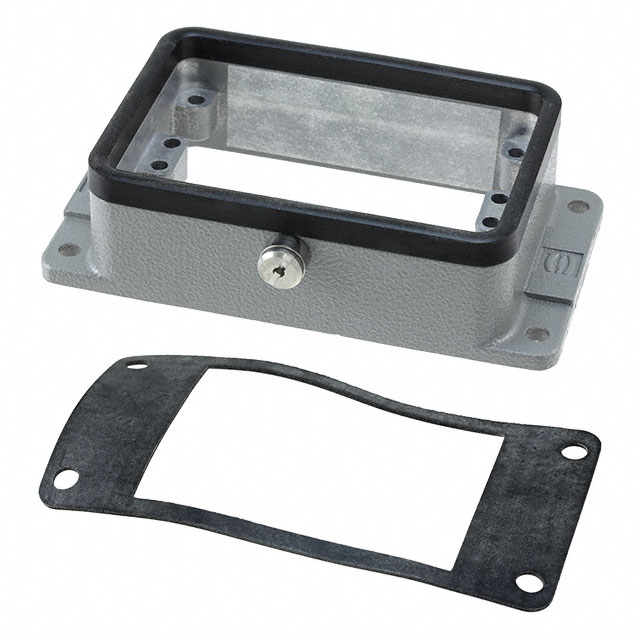

HARTING 09200320381	32 A	Powder Coated	Bottom Entry	Gray	Aluminum Die Cast		125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (1) on Hood			56 mm		102 mm	28.4 mm	2.205 in	4.016 in	1.118 "

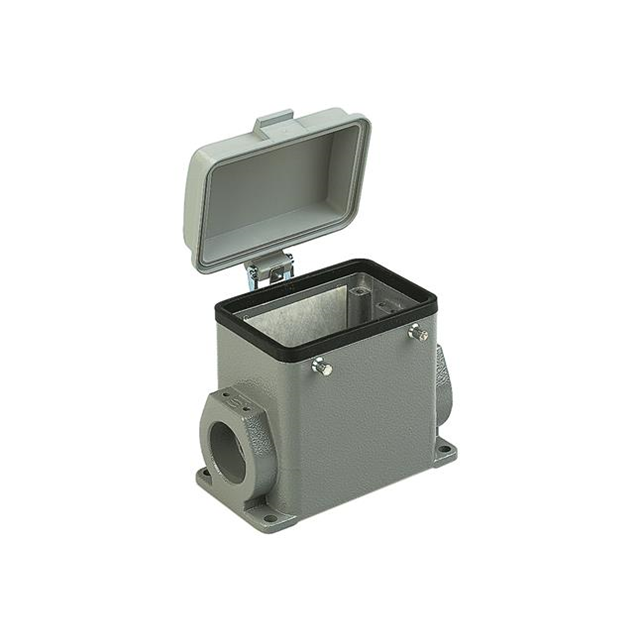

HARTING 09200320221	32 A	Powder Coated	Side Entry	Gray	Aluminum Die Cast	PG29	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Hood			57 mm		106 mm	81.8 mm	2.244 "	4.173 "	3.22 "	Cover

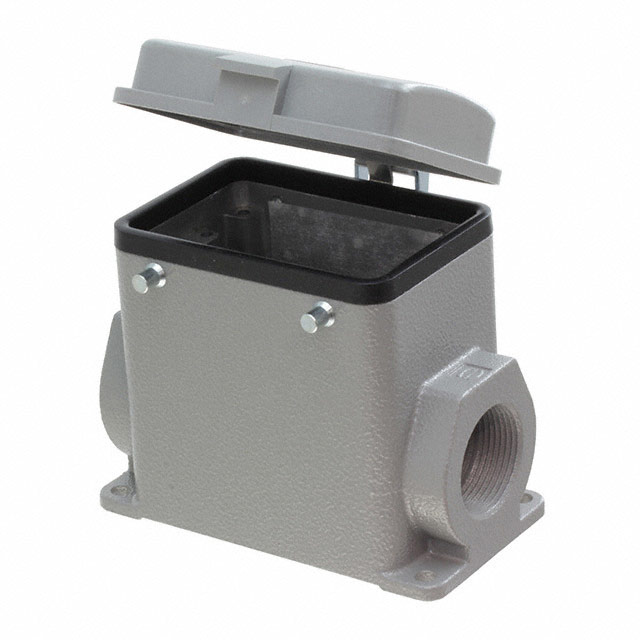

HARTING 09200320220	32 A	Powder Coated	Side Entry	Gray	Aluminum Die Cast	PG21	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Hood			57 mm		106 mm	81.8 mm	2.244 "	4.173 "	3.22 "	Cover
HARTING 09200320520	32 A	Powder Coated	Side Entry	Gray	Aluminum Die Cast	PG21	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Base Bottom	56 mm	82 mm	2.205 in	79 mm	3.228 "	3.11 in
