6ES71386 Series

Manufacturer: Siemens

Catalog

ET 200SP. TM POSINPUT 1

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Number of Outputs and Type	Number of Outputs and Type	For Use With/Related Products	Type	Ingress Protection	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type	Number of Inputs and Type

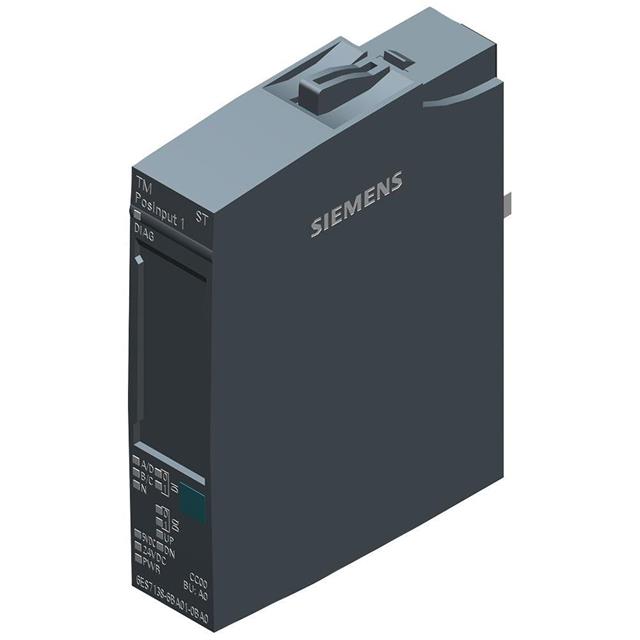

Siemens 6ES71386BA010BA0	-30 ░C	60 °C	DIN Rail	28.8 VDC	19.2 VDC	Screw Terminal	2	Solid State	SIMATIC ET 200SP	Counter Module

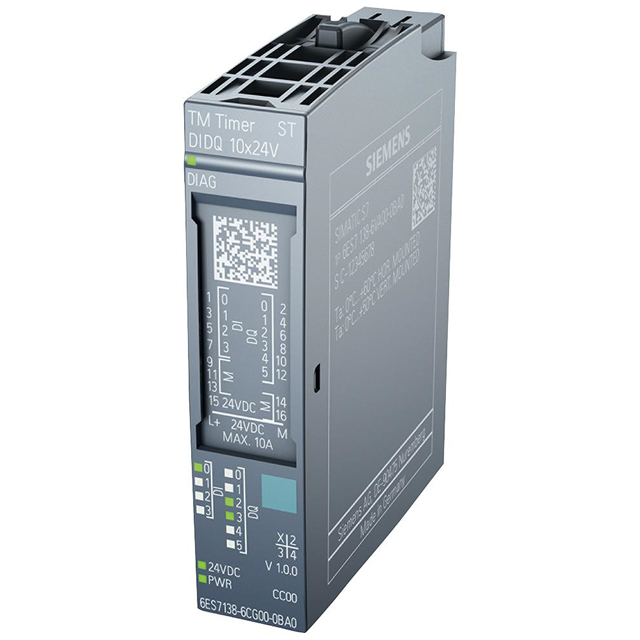

Siemens 6ES71386CG000BA0	-30 ░C	60 °C	DIN Rail	28.8 VDC	19.2 VDC	Screw Terminal			SIMATIC ET 200SP	Timer Module	IP20	6	Solid State	Digital	4

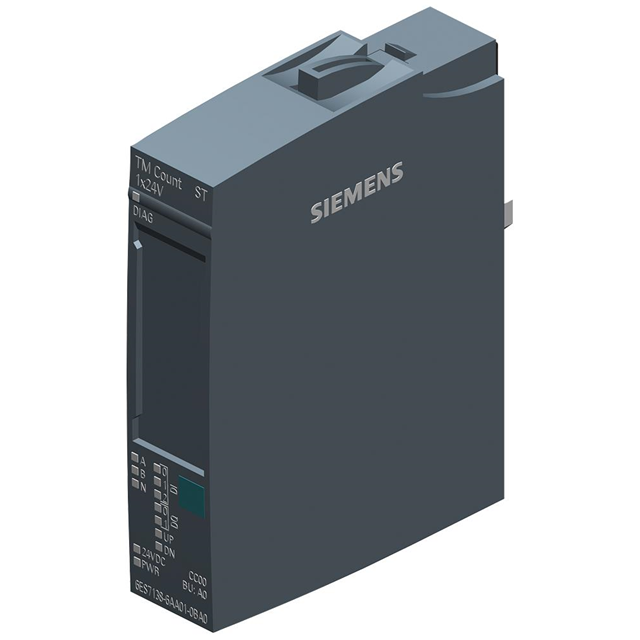

Siemens 6ES71386AA010BA0	-30 ░C	60 °C	DIN Rail	28.8 VDC	19.2 VDC	Screw Terminal	2	Solid State	SIMATIC ET 200SP	Counter Module	IP20

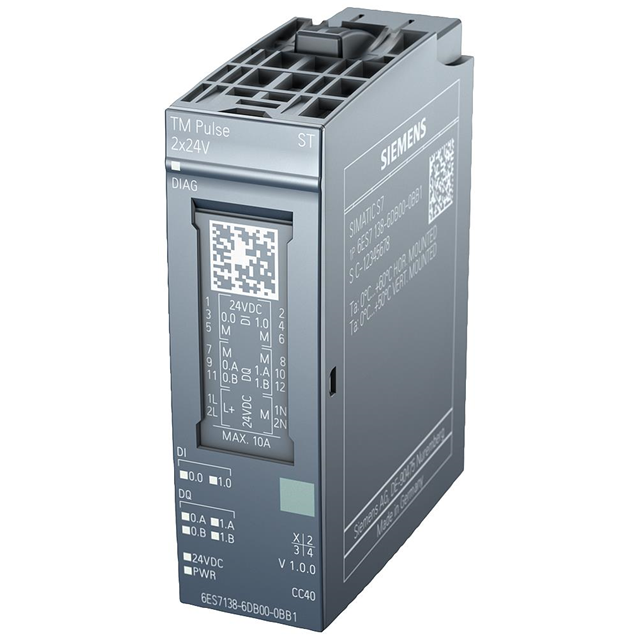

Siemens 6ES71386DB000BB1	-30 ░C	60 °C	DIN Rail	28.8 VDC	19.2 VDC	Screw Terminal			SIMATIC ET 200SP	Input Output (I/O) Module	IP20	2	Digital	Digital	2
Siemens 6ES71386AA012BA0	-30 ░C	60 °C	DIN Rail	28.8 VDC	19.2 VDC	Screw Terminal	2	Solid State	SIMATIC ET 200SP	Counter Module	IP20
Siemens 6ES71386BA012BA0	-30 ░C	60 °C	DIN Rail	28.8 VDC	19.2 VDC	Screw Terminal	2	Solid State	SIMATIC ET 200SP	Counter Module	IP20			Digital	2
Siemens 6ES71386EB000BA0	-30 ░C	60 °C	DIN Rail	28.8 VDC	19.2 VDC				SIMATIC ET 200SP	Interface Module
