P2-56 Series
Manufacturer: Panduit Corp
Beta
⌘K

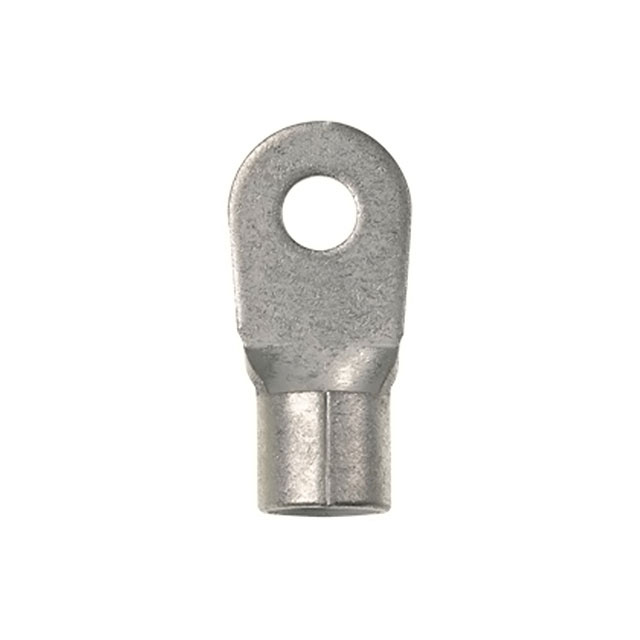

CONN RING CIRC 2AWG #5/16 CRIMP
| Part | Contact Material | Stud/Tab Size | Mounting Type | Terminal Type | Contact Finish | Insulation | Length - Overall [x] | Length - Overall [x] | Termination | Wire Gauge | Width - Outer Edges [x] | Width - Outer Edges | Features | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Copper | 0.3125 Stud | Free Hanging (In-Line) | Circular | Tin | Non-Insulated | 37.08 mm | 1.46 in | Crimp | 2 AWG | 0.68 " | 17.27 mm | Brazed Seam | 1.52 mm | 0.06 in |
 Panduit Corp | Copper | 0.3125 Stud | Free Hanging (In-Line) | Circular | Tin | Non-Insulated | 37.08 mm | 1.46 in | Crimp | 2 AWG | 0.68 " | 17.27 mm | Brazed Seam | 1.52 mm | 0.06 in |
