CAPACITOR 62F 0%/20% 18V CHAS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max)	Package / Case	Termination	Tolerance [Max]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Capacitance	Voltage - Rated	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]

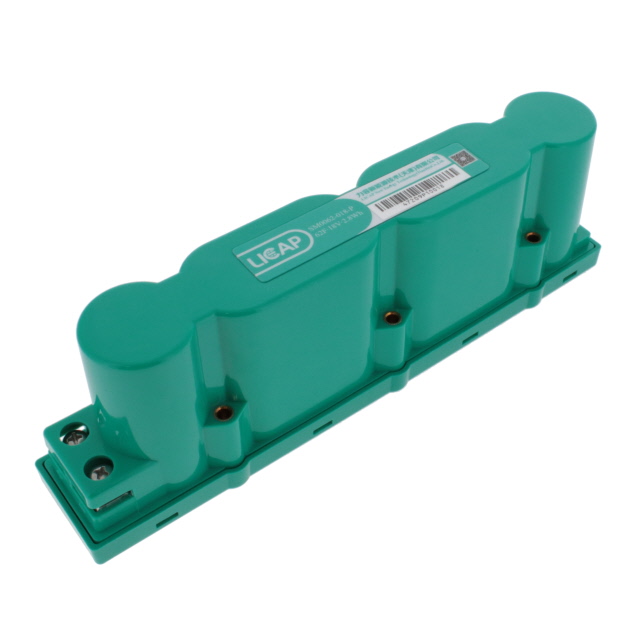

LICAP Technologies, Inc. SM0062-018-P	-40 C	65 °C	240 mm	9.449 in	47 mm	1.85 in	2.992 in	76 mm	Module	Screw Terminals	20 %	22 mOhms	1500 Hrs	62 F	18 VDC	Chassis Mount

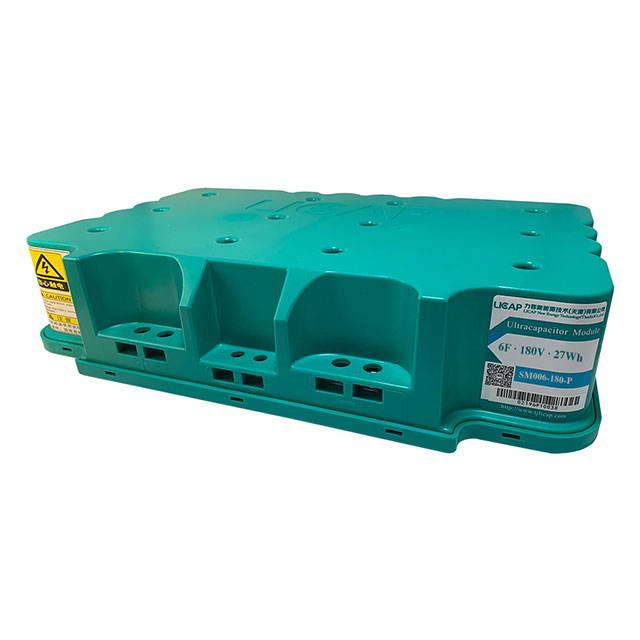

LICAP Technologies, Inc. SM0006-180-P	-40 C	65 °C	369 mm	14.528 in	240 mm	9.449 in			Module	Screw Terminals	20 %	200 mOhm	1500 Hrs	6 F	180 VDC	Chassis Mount

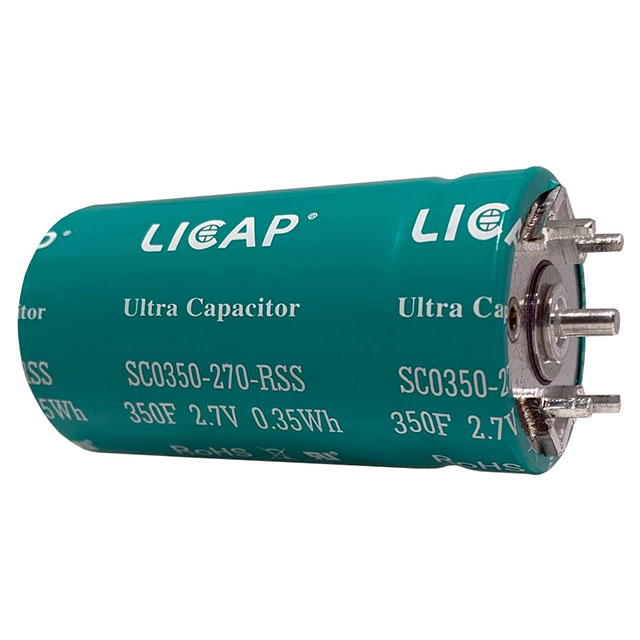

LICAP Technologies, Inc. SC0350-270-RSS	-50 °C	65 °C							Radial Can - Solder Lug - 4 Lead	Solder Lug	20 %	2.8 mOhms	1500 Hrs	350 F	2.7 VDC	Through Hole	1.254 in	31.85 mm	2.421 in	61.5 mm

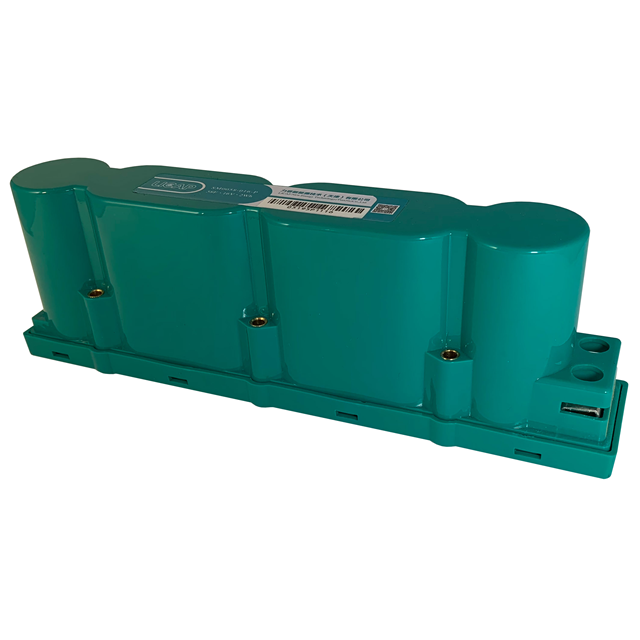

LICAP Technologies, Inc. SM0058-016-P	-40 C	65 °C	240 mm	9.449 in	47 mm	1.85 in	2.992 in	76 mm	Module	Screw Terminals	20 %	22 mOhms	1500 Hrs	58 F	16 V	Chassis Mount

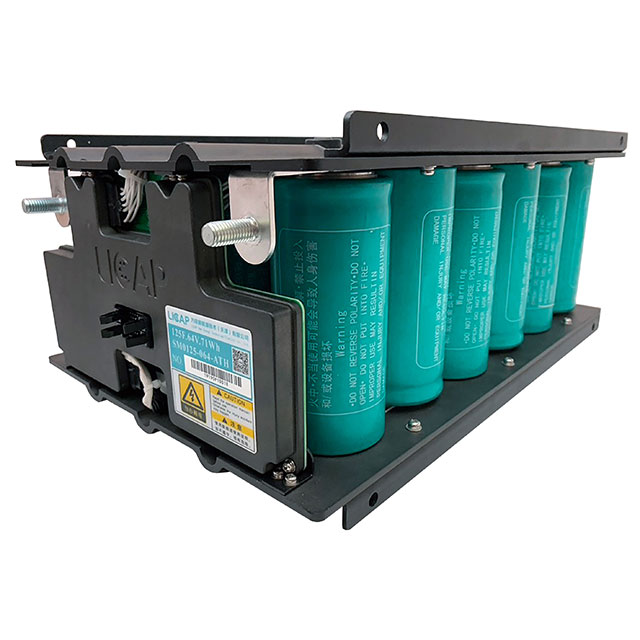

LICAP Technologies, Inc. SM0125-064-ATH	-40 C	65 °C	16.28 in 413.5 mm		10.866 in 276 mm				Module	Screw Terminals	20 %	8 mOhms	1500 Hrs	125 F	64 V	Chassis Mount			7.126 in	181 mm

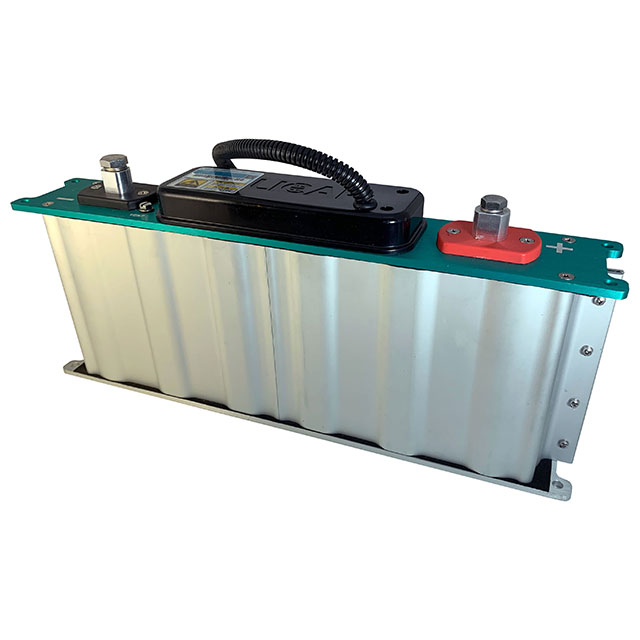

LICAP Technologies, Inc. SM0500-016-PT	-40 C	65 °C	418 mm	16.457 in		2.677 "			Module	Screw Terminals	20 %	1.8 mOhm	1500 Hrs	500 F	16 V	Chassis Mount					178 mm	7.008 in	68 mm
LICAP Technologies, Inc. SM0165-048-ATH	-40 C	65 °C	418 mm	16.457 in	198 mm	7.795 in			Module	Screw Terminals	20 %	6 mOhms	1500 Hrs	165 F	48 VDC	Chassis Mount			7.087 in	180 mm
LICAP Technologies, Inc. SM0500-016-ATH	-40 C	65 °C	418 mm	16.457 in		2.677 "			Module	Screw Terminals	20 %	1.8 mOhm	1500 Hrs	500 F	16 V	Chassis Mount					178 mm	7.008 in	68 mm

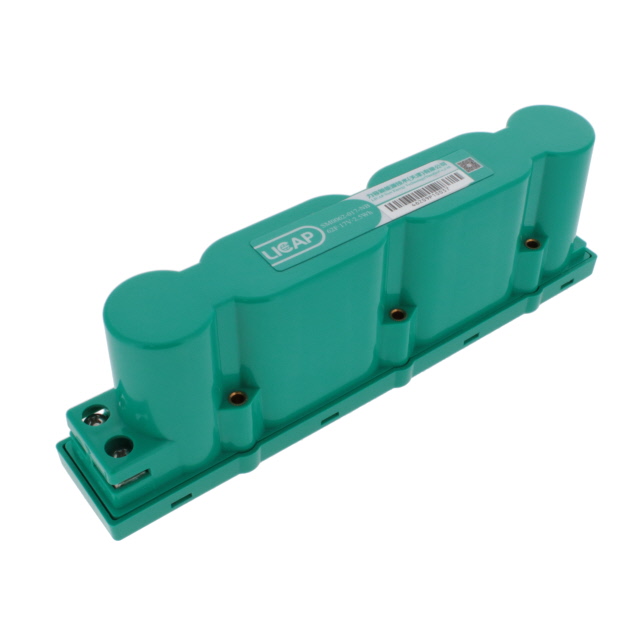

LICAP Technologies, Inc. SM0062-017-NB	-40 C	65 °C	240 mm	9.449 in	44 mm	1.732 in	2.992 in	76 mm	Module	Screw Terminals	20 %	22 mOhms	1500 Hrs	62 F	17 V	Chassis Mount
LICAP Technologies, Inc. SC3000-270-ASC	-40 C	65 °C	165 mm	6.496 "					Axial Can - Screw Terminals	Screw Terminals	20 %	0.28 mOhm	1500 Hrs	3000 F	2.7 VDC	Chassis Mount	2.402 in	61 mm
