DC37P364 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

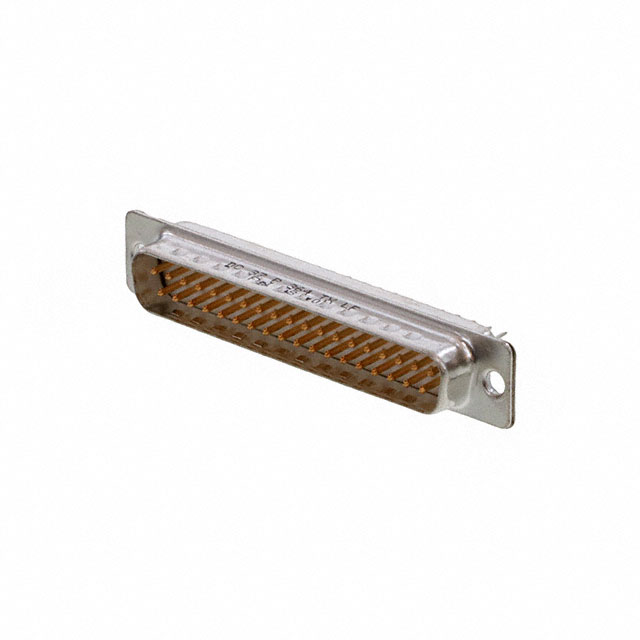

DSUB SIGNAL STB 37PIN
| Part | Number of Rows | Mounting Type | Dielectric Material | Contact Type | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Contact Finish | Connector Style | Contact Finish Thickness | Termination | Connector Type | Features | Number of Positions | Current Rating (Amps) | Material Flammability Rating | Contact Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 2 | Through Hole | Thermoplastic | Signal | Housing/Shell (Unthreaded) | -55 °C | 125 °C | 4 (DC C) | Gold | D-Sub | Flash | Solder | Male Pins Plug | Grounding Indents | 37 | 5 A | |||
 Amphenol ICC (FCI) | 2 | Through Hole | Thermoplastic | Signal | Housing/Shell (Unthreaded) | -55 °C | 125 °C | 4 (DC C) | Gold GXT™ | D-Sub | Flash | Solder | Male Pins Plug | Grounding Indents | 37 | 5 A | UL94 V-0 | Copper Alloy | 300 VDC |
