CFM130S Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

SWITCHING POWER SUPPLIES 130W 80-264VIN 36V 2.8A

Part	Mounting Type	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1 [custom]	Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Voltage - Isolation	Current - Output 1	Number of Outputs	Voltage - Output 1
Cincon Electronics Co. LTD CFM130S360	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.2 "	3 "	50.8 mm	2 in	30.5 mm	76.2 mm	36 V	Open Frame	94 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	2.8 A	1

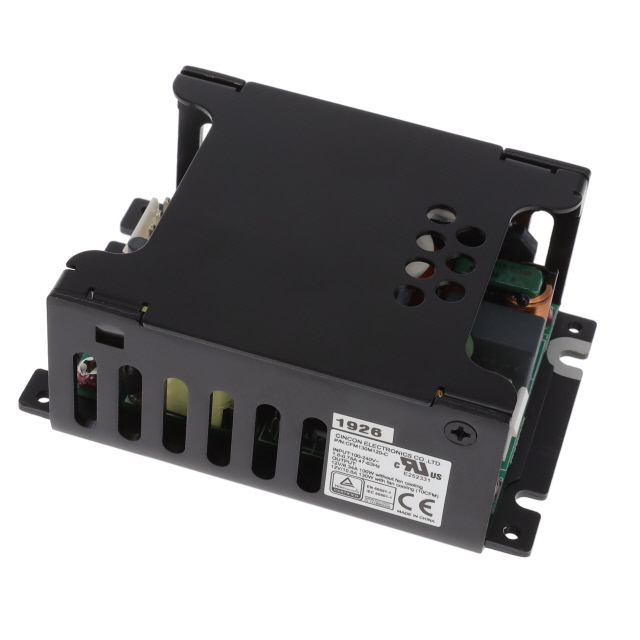

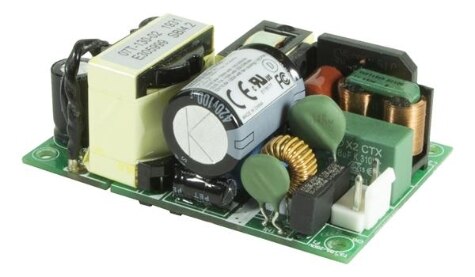

Cincon Electronics Co. LTD CFM130S120-C	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	100 W 130 W	Household Appliances ITE (Commercial)	1.36 in	3.6 "	64 mm	2.52 in	34.5 mm	91.4 mm		Enclosed	93 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	8.34 A	1	12 V
Cincon Electronics Co. LTD CFM130S480	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.2 "	3 "	50.8 mm	2 in	30.5 mm	76.2 mm		Open Frame	94 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	2.1 A	1	48 V
Cincon Electronics Co. LTD CFM130S360-C	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.36 in	3.6 "	64 mm	2.52 in	34.5 mm	91.4 mm	36 V	Enclosed	94 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	2.8 A	1
Cincon Electronics Co. LTD CFM130S480-B	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.3 in	3.6 "	50.8 mm	2 in	33 mm	91.4 mm		Open Frame	94 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	2.1 A	1	48 V
Cincon Electronics Co. LTD CFM130S240	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.2 "	3 "	50.8 mm	2 in	30.5 mm	76.2 mm		Open Frame	93 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	4.2 A	1	24 V
Cincon Electronics Co. LTD CFM130S480-C	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.36 in	3.6 "	64 mm	2.52 in	34.5 mm	91.4 mm		Enclosed	94 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	2.1 A	1	48 V
Cincon Electronics Co. LTD CFM130S120-B	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	100 W 130 W	Household Appliances ITE (Commercial)	1.3 in	3.6 "	50.8 mm	2 in	33 mm	91.4 mm		Open Frame	93 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	8.34 A	1	12 V

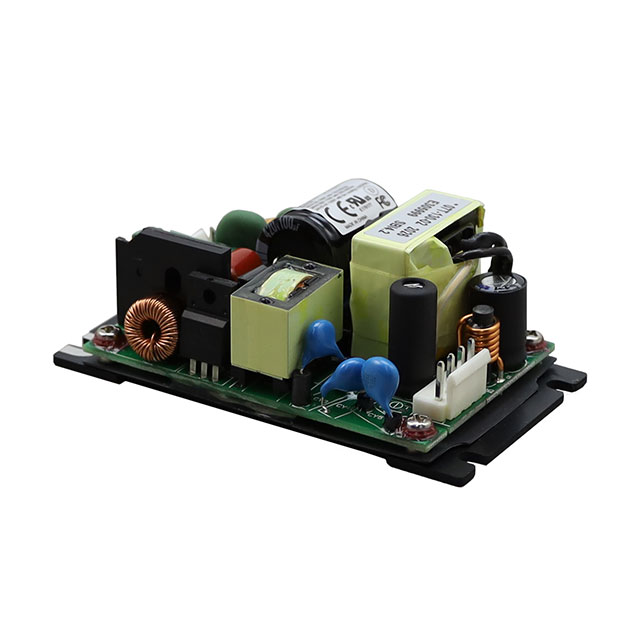

Cincon Electronics Co. LTD CFM130S240-B	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.3 in	3.6 "	50.8 mm	2 in	33 mm	91.4 mm		Open Frame	93 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	4.2 A	1	24 V
Cincon Electronics Co. LTD CFM130S240-C	Chassis Mount	60335-1 60601-1 62368-1	100 VAC	240 VAC	101 W 130 W	Household Appliances ITE (Commercial)	1.36 in	3.6 "	64 mm	2.52 in	34.5 mm	91.4 mm		Enclosed	93 %	-30 °C	70 °C	PFC Standby Output Universal Input	CE cURus DEMKO FCC	4000 V	4.2 A	1	24 V
