S03B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

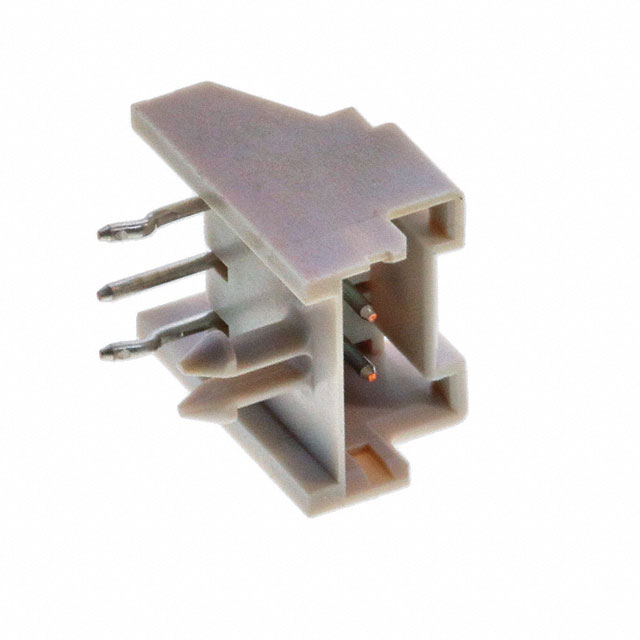

CONN HEADER R/A 3POS 2.5MM
| Part | Pitch - Mating | Pitch - Mating | Contact Shape | Shrouding | Mounting Type | Fastening Type | Contact Type | Style | Voltage Rating | Insulation Color | Contact Material | Connector Type | Contact Finish - Post | Insulation Height [z] | Insulation Height | Current Rating (Amps) | Number of Rows | Material Flammability Rating | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Number of Positions Loaded | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 2.5 mm | 0.098 in | Circular | Shrouded - 4 Wall | Right Angle Through Hole | Locking Ramp | Male Pin | Board to Cable/Wire | 250 V | Natural | Copper Alloy | Header | Tin | 0.299 " | 7.6 mm | 3 A | 1 | UL94 V-0 | Solder | 0.126 " | 3.2 mm | 85 °C | -25 °C | Glass Filled Nylon 6/6 Polyamide (PA66) | All | |
 JST Sales America Inc. | 2.5 mm | 0.098 in | Circular | Shrouded - 4 Wall | Right Angle Through Hole | Locking Ramp | Male Pin | Board to Cable/Wire | 250 V | Natural | Copper Alloy | Header | Tin | 0.299 " | 7.6 mm | 3 A | 1 | UL94 V-0 | Press-Fit Solder | 0.126 " | 3.2 mm | 85 °C | -25 °C | Glass Filled Nylon 6/6 Polyamide (PA66) | All | Board Lock |
