2SC6026 Series

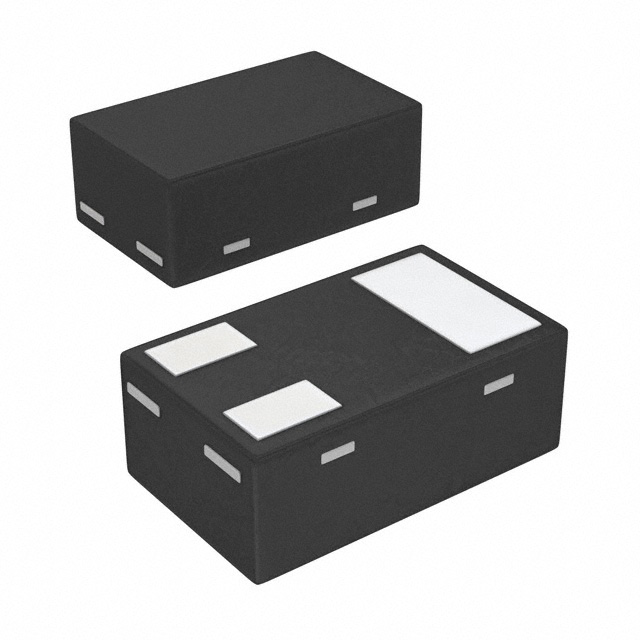

Bipolar Transistors, NPN Bipolar Transistor, 50 V, 0.1 A, SOT-883(CST3)

Catalog

Bipolar Transistors, NPN Bipolar Transistor, 50 V, 0.1 A, SOT-883(CST3)

Part	Mounting Type	Transistor Type	Operating Temperature	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Frequency - Transition	Package / Case	Vce Saturation (Max) @ Ib, Ic
Toshiba Semiconductor and Storage 2SC6026CT-GR,L3F	Surface Mount	NPN	150 °C	100 mA	50 V	200 hFE	CST3	100 nA	100 mW	60 MHz	SC-101 SOT-883	250 mV

Bipolar Transistors, NPN Bipolar Transistor, 50 V, 0.1 A, SOT-883(CST3)
