85_MCX Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

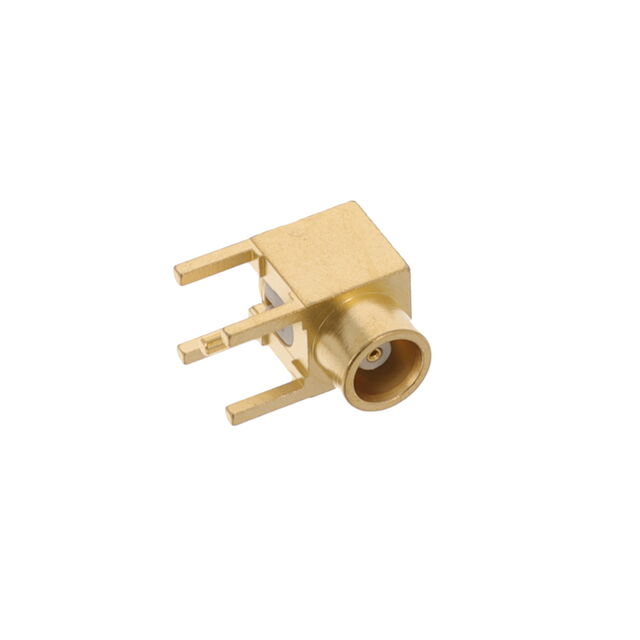

CONN MCX 0HZ TO 6GHZ 50OHM SOLDER RA SMD F GOLD OVER NICKEL BULK
| Part | Body Finish | Mating Cycles | Center Contact Plating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Material | Mounting Type | Contact Termination | Center Contact Material | Fastening Type | Shield Termination | Connector Type | Number of Ports | Housing Color | Connector Style | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Gold | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 155 C | -55 C | 170 V | Brass | Right Angle Surface Mount | Solder | Beryllium Copper | Snap-On | Solder | Female Socket Jack | 1 | Gold | MCX | 6000 MHz | 50 Ohms |

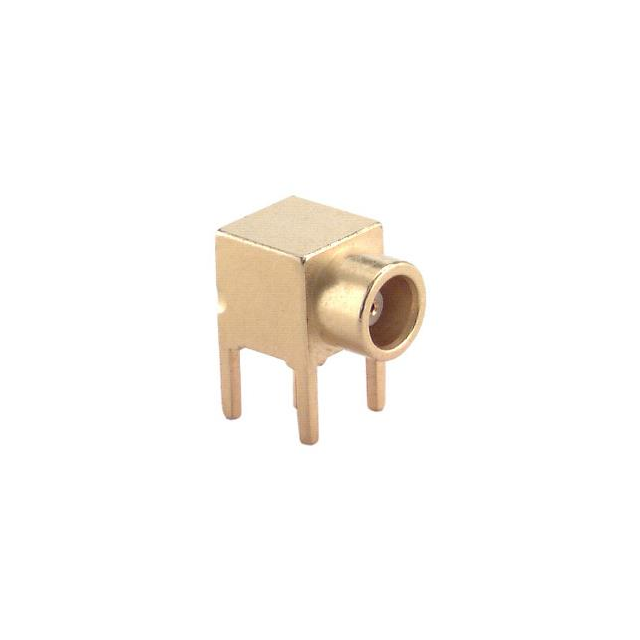

 Huber+Suhner, Inc. | Gold | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 155 C | -55 C | 170 V | Brass | Right Angle Through Hole | Solder | Beryllium Copper | Snap-On | Solder | Female Socket Jack | 1 | Gold | MCX | 6000 MHz | 50 Ohms |
 Huber+Suhner, Inc. | Gold | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Brass | Right Angle Through Hole | Solder | Beryllium Copper | Snap-On | Solder | Female Socket Jack | 1 | Gold | MCX | 6000 MHz | 50 Ohms | |
 Huber+Suhner, Inc. | Gold | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 155 C | -55 C | 170 V | Brass | Right Angle Through Hole | Solder | Beryllium Copper | Snap-On | Solder | Female Socket Jack | 1 | Gold | MCX | 6000 MHz | 50 Ohms |

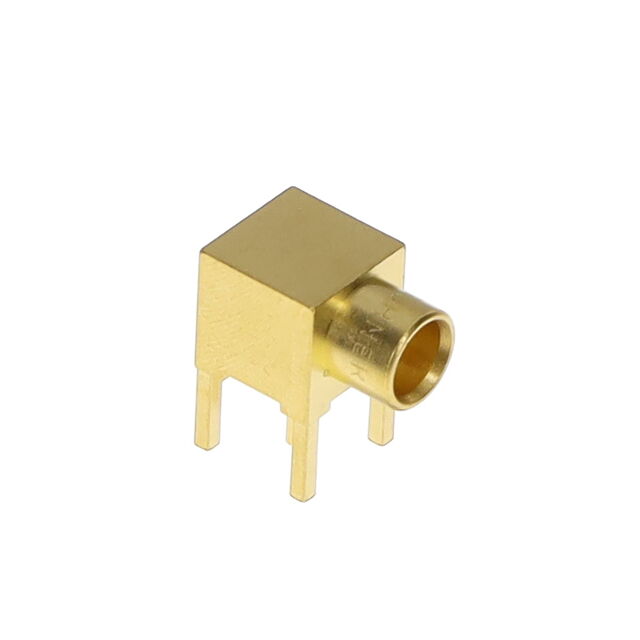

 Huber+Suhner, Inc. | Gold | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 165 °C | -65 ░C | 170 V | Brass | Right Angle Through Hole | Solder | Beryllium Copper | Snap-On | Solder | Female Socket Jack | 1 | Gold | MCX | 6000 MHz | 75 Ohms |
 Huber+Suhner, Inc. | Gold | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 155 C | -55 C | 170 V | Brass | Right Angle Through Hole | Solder | Beryllium Copper | Snap-On | Solder | Female Socket Jack | 1 | Gold | MCX | 6000 MHz | 50 Ohms |
Huber+Suhner, Inc. | Right Angle Through Hole | Solder | Beryllium Copper | Snap-On | Solder | Female Socket Jack | 1 | Gold | MCX | 6000 MHz | 50 Ohms |
