ED115 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

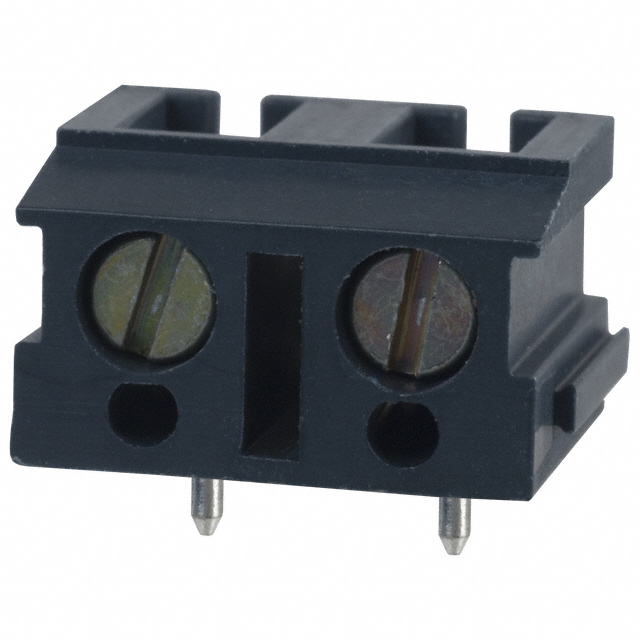

TERM BLK 2P TOP ENTRY 7.5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Torque - Screw | Torque - Screw | Clamp Material - Plating [custom] | Contact Material - Plating | Housing Material | Voltage | Features | Pitch | Pitch | Mating Orientation | Wire Termination | Positions Per Level | Mounting Type | Color | Current | Wire Gauge [Min] | Wire Gauge [Max] | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 4.4 Lb-In | 0.5 Nm | Stainless Steel | Brass | Polyamide (PA) Nylon | 300 VDC | Interlocking (Side) | 0.295 in | 7.5 mm | Vertical with Board | Screw - Leaf Spring Wire Guard | 2 | Through Hole | Gray | 20 A | 14 AWG | 22 AWG | 1 |
 On Shore Technology Inc. | -30 ░C | 105 ░C | M3 | 4.4 Lb-In | 0.5 Nm | Stainless Steel | Brass | Polyamide (PA) Nylon | 300 VDC | Interlocking (Side) | 0.295 in | 7.5 mm | Vertical with Board | Screw - Leaf Spring Wire Guard | 3 | Through Hole | Gray | 20 A | 14 AWG | 22 AWG | 1 |
