UF25H Series

Catalog

FAN AXIAL 254X107MM 115VAC

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Noise	Size / Dimension	Size / Dimension [diameter]	Termination	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Power (Watts)	Voltage - Rated	Fan Type	Features	Air Flow	Air Flow	Approval Agency	Weight	Weight	Bearing Type	Width [y]	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Termination	Voltage - Rated [Max]	Voltage - Rated [Min]

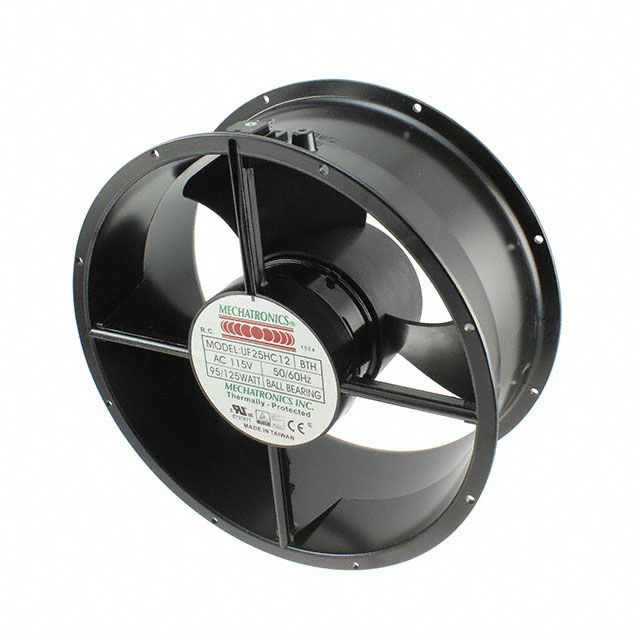

Mechatronics Fan Group UF25HC12-BTHR	Polybutylene Terephthalate (PBT)	Aluminum	1.07 A	65 dB	Round	10 in	2	0.68 in H2O	169.4 Pa	-40 C	70 °C	70 °C	-40 °C	2750 RPM	125 W	115 VAC	Tubeaxial	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	850 CFM	23.8 mł/min	CE cUL TUV UL	5.5 lbs	2.5 kg	Ball	107 mm
Mechatronics Fan Group UF25HC12/23-BWHR	Polybutylene Terephthalate (PBT)	Aluminum		65 dB	Round	10 in		0.68 in H2O	169.4 Pa	-40 C	70 °C	70 °C	-40 °C	2750 RPM	125 W		Tubeaxial	Dual Voltage Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	850 CFM	23.8 mł/min	CE cUL TUV UL	5.5 lbs	2.5 kg	Ball	107 mm	0.5 A	1.07 A	2 Wire Leads	230 VAC	115 VAC
Mechatronics Fan Group UF25HC23-BTHR	Polybutylene Terephthalate (PBT)	Aluminum	0.5 A	65 dB	Round	10 in	2	0.68 in H2O	169.4 Pa	-40 C	70 °C	70 °C	-40 °C	2750 RPM	125 W	230 VAC	Tubeaxial	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	850 CFM	23.8 mł/min	CE cUL TUV UL	5.5 lbs	2.5 kg	Ball	107 mm
Mechatronics Fan Group UF25HC12-BWHR	Polybutylene Terephthalate (PBT)	Aluminum	1.07 A	65 dB	Round	10 in		0.68 in H2O	169.4 Pa	-40 C	70 °C	70 °C	-40 °C	2750 RPM	125 W	115 VAC	Tubeaxial	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	850 CFM	23.8 mł/min	CE cUL TUV UL	5.5 lbs	2.5 kg	Ball	107 mm			2 Wire Leads
