R11466 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB / RIGHT ANGLE JACK RECEPTACL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Mating Cycles | Center Contact Plating | Body Finish | Body Material | Impedance | Contact Termination | Mounting Type | Number of Ports | Shield Termination | Center Contact Material | Housing Color | Frequency - Max [Max] | Connector Type | Connector Style | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

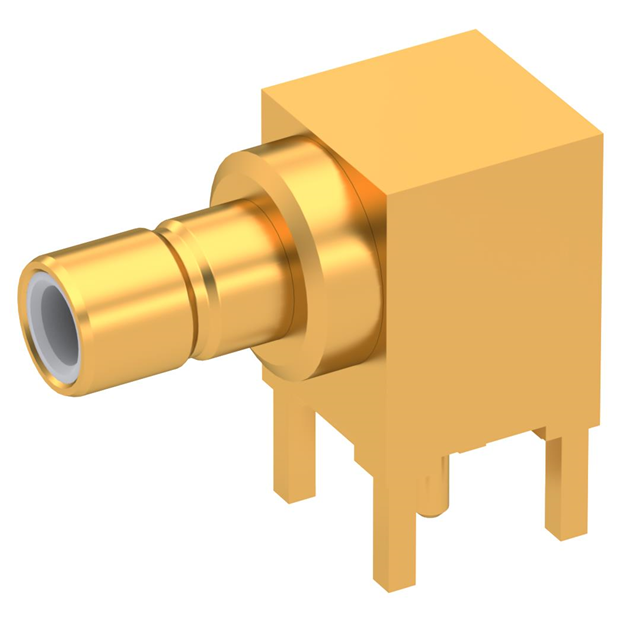

 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | 500 | Gold | Gold | Brass | 50 Ohms | Solder | Right Angle Surface Mount | 1 | Solder | Brass | Gold | 4 GHz | Receptacle Male Pin | SMB | Snap-On |

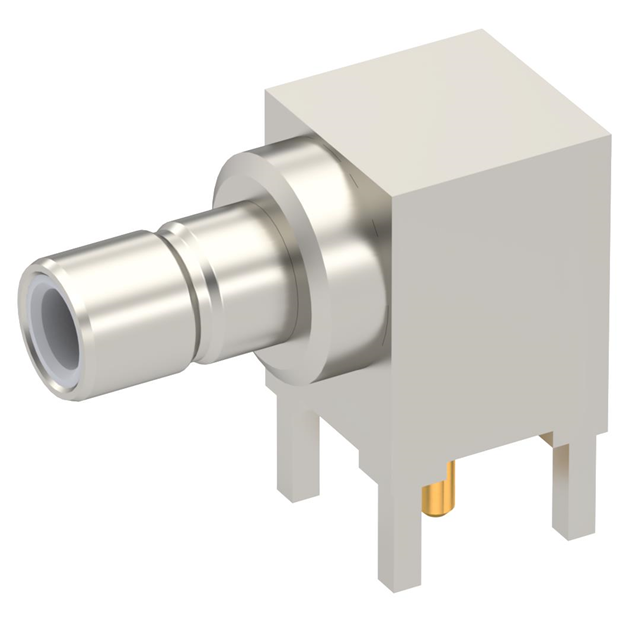

Radiall USA, Inc. | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 500 | Gold | Nickel | Brass | 50 Ohms | Solder | Right Angle Through Hole | 1 | Solder | Brass | Silver | 4 GHz | Receptacle Male Pin | SMB | Snap-On |

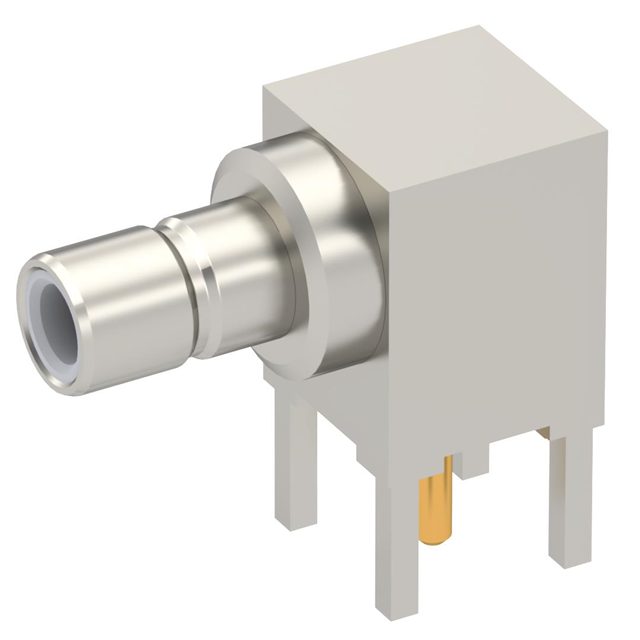

 Radiall USA, Inc. | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 500 | Gold | Nickel | Brass | 50 Ohms | Solder | Right Angle Through Hole | 1 | Solder | Brass | Silver | 4 GHz | Jack Male Pin | SMB | Snap-On |

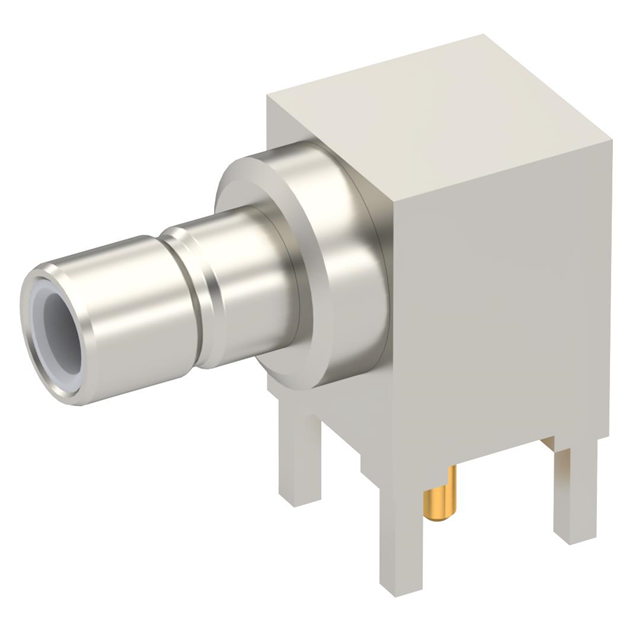

 Radiall USA, Inc. | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 500 | Gold | Nickel | Brass | 50 Ohms | Solder | Right Angle Through Hole | 1 | Solder | Brass | Silver | 4 GHz | Jack Male Pin | SMB | Snap-On |
Radiall USA, Inc. | |||||||||||||||||||
 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | 500 | Gold | Gold | Brass | 50 Ohms | Solder | Right Angle Through Hole | 1 | Solder | Brass | Gold | 4 GHz | Jack Male Pin | SMB | Snap-On |
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 500 | Gold | Nickel | Brass | 50 Ohms | Solder | Right Angle Through Hole | 1 | Solder | Brass | Silver | 4 GHz | Receptacle Male Pin | SMB | Snap-On |
