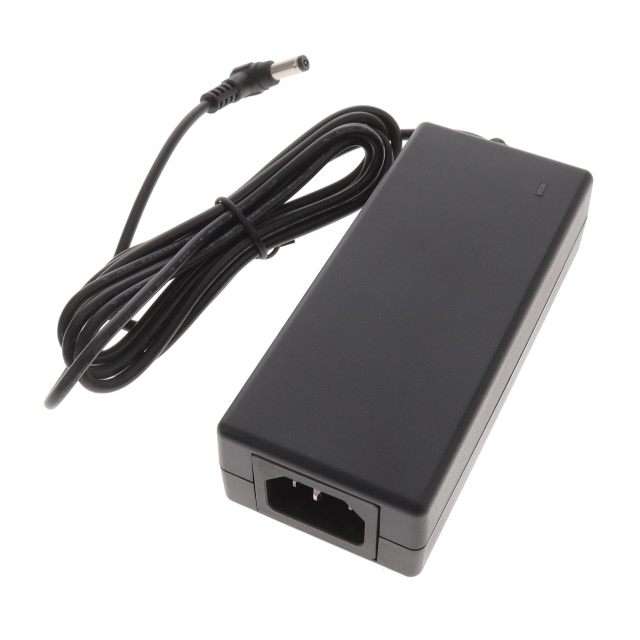

TRH50A240 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC DESKTOP ADAPTER 24V 50W
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Cord Length | Cord Length | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Form | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Standard Number | Efficiency | Input Type | Power (Watts) | Input Connector | Current - Output (Max) [Max] | Region Utilized | Applications | Voltage - Output | Polarization | Output Connector | Output Connector [diameter] | Output Connector [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 264 VAC | 90 VAC | 70.9 " | 1.8 m | 150 mW | -20 ░C | 70 °C | Desktop (Class I) | 2.05 in | 120 mm | 1.22 in | 52 mm | 31 mm | 4.72 " | CE cULus FCC GS PSE TUV | 60950-1 62368-1 | CoC Tier 2 Level VI | Cord (Sold Separately) | 50 W | IEC 320-C14 | 2.1 A | International | ITE (Commercial) | 24 V | Positive Center | Barrel Plug R/A | 2.1 mm 5.5 mm | 12 mm |
